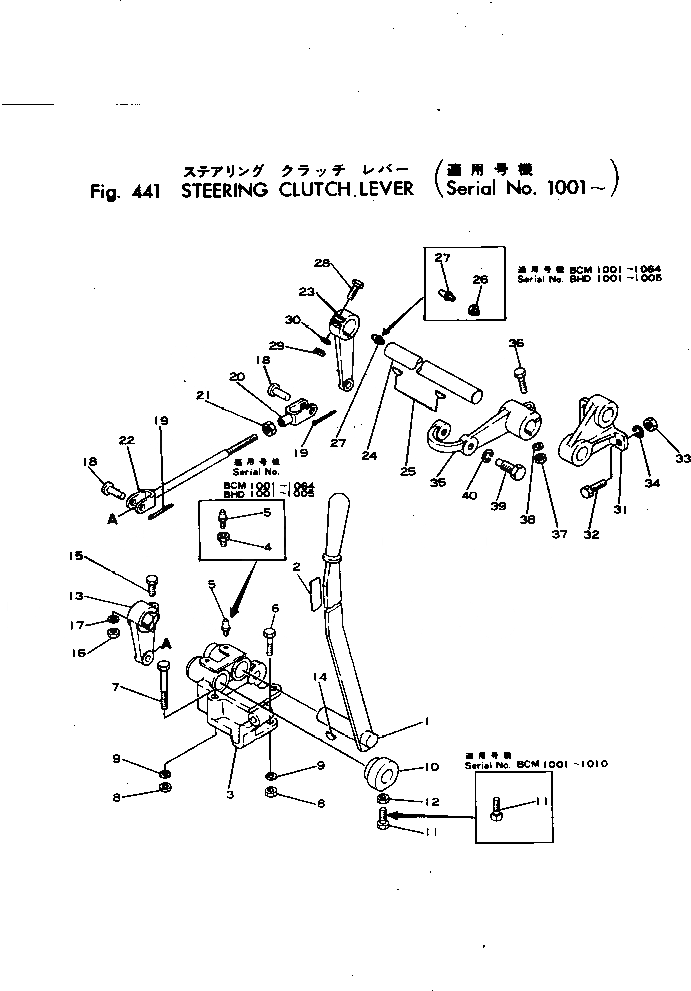

Запчасти Komatsu 22-BCM-1 БОРТОВ. ФРИКЦИОН РЫЧАГ ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580488-00

LEVER ASS'Y,STEERING CLUTCH

1

LEVER,STEERING CLUTCH

2

22-400373-01

PLATE¤ NAME

3

21-802356-02

BRACKET,STEERING LEVER SHAFT

4

00200-15250

BUSHING

5

00570-44510

FITTING

6

02010-00864

BOLT

7

02011-00814

BOLT

8

02205-00812

NUT

9

01602-01338

WASHER

10

21-404841-01

COLLAR,LEVER

11

00037-62860

SCREW

|11

22-590070-01

SCREW

12

02206-00808

NUT

13

21-275592-01

LEVER

14

22-590047-01

KEY

15

02010-00857

BOLT

16

02205-00812

NUT

17

01602-01338

WASHER

18

22-590049-01

PIN

19

04050-03022

PIN

20

22-590076-01

YOKE

21

02215-00811

NUT

22

21-404798-01

ROD

23

21-520680-01

LEVER

24

21-520681-01

SHAFT,VERTICAL ROD SHIFTER

25

22-590047-01

KEY

26

00200-15250

BUSHING

27

00570-44260

FITTING

28

02030-00870

BOLT

29

02215-00811

NUT

30

01602-01338

WASHER

31

21-520682-01

BRACKET

32

02030-00851

BOLT

33

02215-00811

NUT

34

01602-01338

WASHER

35

21-602382-01

LEVER,VERTICAL SHIFTER

36

02030-00864

BOLT

37

02215-00811

NUT

38

01602-01338

WASHER

39

21-520621-01

PIN

40

01601-02256

WASHER
