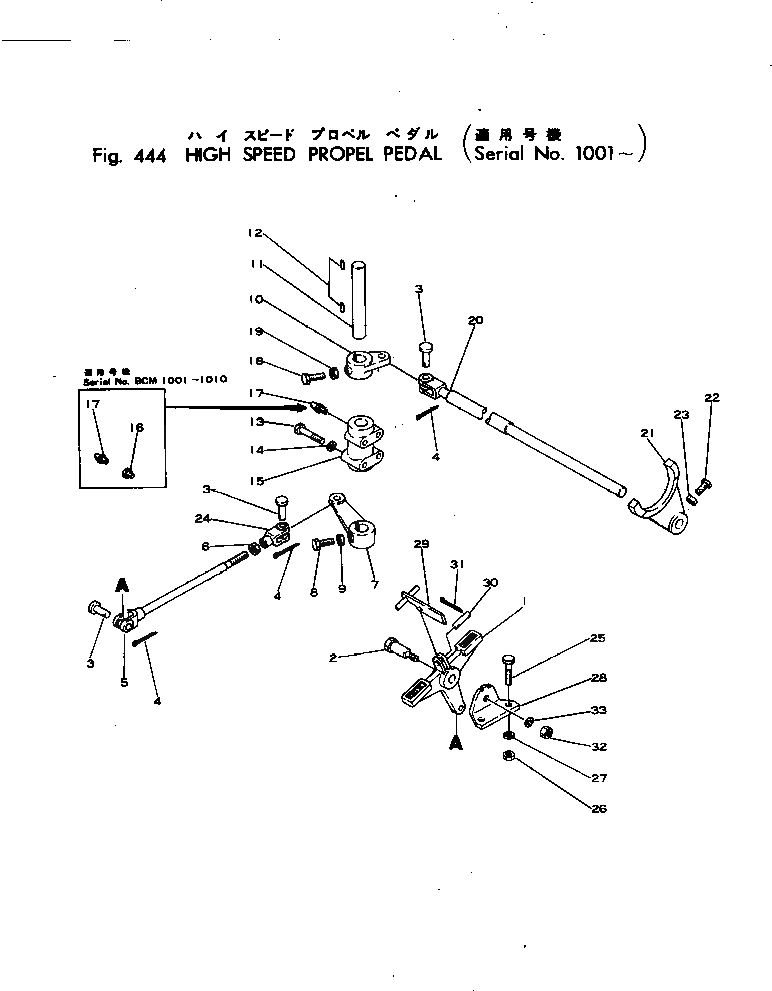

Запчасти Komatsu 22-BCM-1 ВЫСОКОСКОРОСТН. ПЕДАЛЬ ХОДА ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

1

21-505767-01

PEDAL

2

21-520712-01

PIN

3

22-590049-01

PIN

4

04050-03022

PIN

5

21-520714-21

ROD

6

02215-00811

NUT

7

21-520711-01

LEVER

8

00037-62860

SCREW

9

02206-00808

NUT

10

21-505768-01

LEVER

11

21-520713-01

SHAFT

12

22-590047-01

KEY

13

02010-00876

BOLT

14

01602-01338

WASHER

15

21-520715-01

BEARING

16

00200-15250

BUSHING

17

00570-44260

FITTING

18

00037-63860

SCREW

19

02206-00808

NUT

20

21-520716-21

ROD,SECOND

21

21-503571-01

YOKE,HIGH SPEED GEAR SHIFT

22

00037-62740

SCREW

23

02206-00808

NUT

24

22-590004-01

YOKE

25

02030-00838

BOLT

26

02215-00811

NUT

27

01602-01338

WASHER

28

21-505769-01

BEARING

29

21-603812-21

LATCH,PEDAL

30

22-400577-01

PIN

31

04050-03015

PIN

32

02206-01009

NUT

33

01601-01640

WASHER
