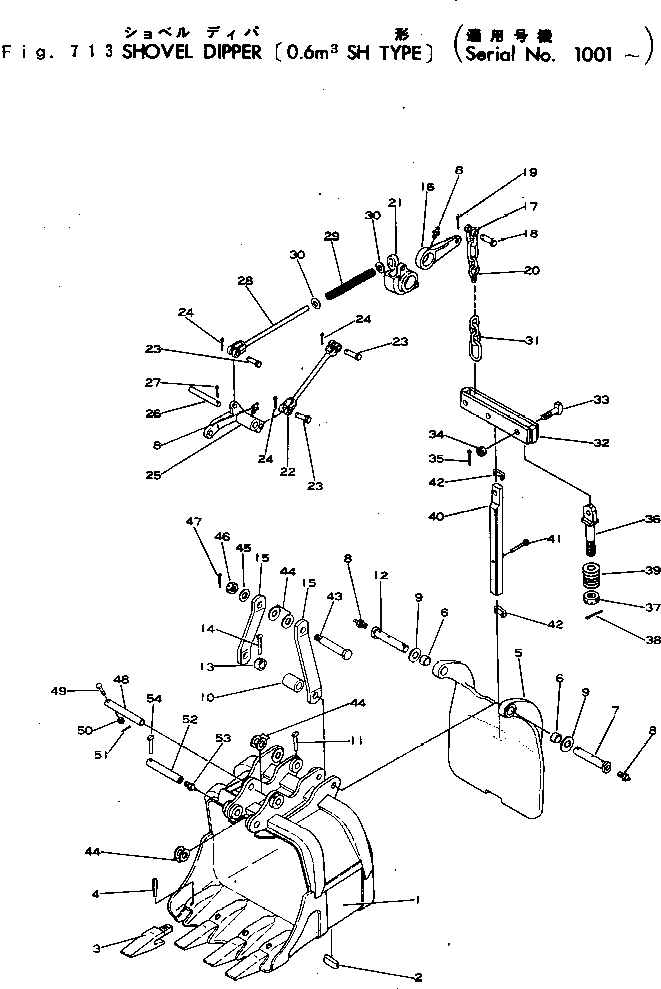

Запчасти Komatsu 22-BCM-1 ПОГРУЗ. DIPPER (.M SH ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580545-00

DIPPER ASS'Y,0.6M3¤ SH TYPE

|1

22-580546-00

BODY ASS'Y

1

BODY,DIPPER

2

21-501401-01

STOPPER,LATCH

3

22-540136-01

TOOTH,DIPPER

4

21-501022-01

WEDGE,TOOTH

|5

22-580556-00

DOOR ASS'Y

5

DOOR,DIPPER

6

21-529011-01

BUSHING

7

22-402757-01

PIN

8

00570-43760

FITTING

9

00039-52900

WASHER

10

21-529595-01

SPACER

11

22-590101-01

T-BOLT

12

22-403462-01

PIN,DOOR HINGE

13

21-288884-01

SEPARATER,DOOR HINGE

14

22-590103-01

T-BOLT

15

21-288867-01

BRACE,PITCH

16

21-520815-01

LEVER,TRIP

17

22-400195-01

SHACKLE

18

22-400274-01

PIN

19

04050-04050

PIN

20

21-527277-21

TRIP,CHAIN

21

21-617140-01

BELLCRANK

22

21-501456-01

ROD,TRIP

23

22-590050-01

PIN

24

04050-03025

PIN

25

21-617139-01

LEVER,TRIP

26

21-520817-01

PIN

27

04050-06050

PIN

28

21-520818-21

ROD,SPRING GUIDE

29

21-505451-01

SPRING

30

00039-51800

WASHER

31

22-451064-21

CHAIN,TRIP

32

22-450560-21

LEVER,LATCH

33

22-400179-01

BOLT

34

22-590094-01

NUT,CASTLE

35

04050-05040

PIN

36

21-619532-29

BOLT

37

22-590095-01

NUT,CASTLE

38

04050-06065

PIN

39

00039-52200

WASHER

40

21-504403-02

LATCH

41

22-590072-01

T-BOLT

42

21-501407-01

GUIDE,LATCH

43

21-288725-01

PIN,BRACE

44

21-500972-01

WASHER

45

21-500138-01

WASHER

46

21-500137-01

NUT,CASTLE

47

04050-00090

PIN

48

22-400165-01

PIN,DIPPER HANDLE

49

22-400167-01

BOLT

50

02205-01015

NUT

51

04050-05030

PIN

52

21-290822-01

PIN,PAD LOCK

53

00570-43760

FITTING

54

22-590101-01

T-BOLT
