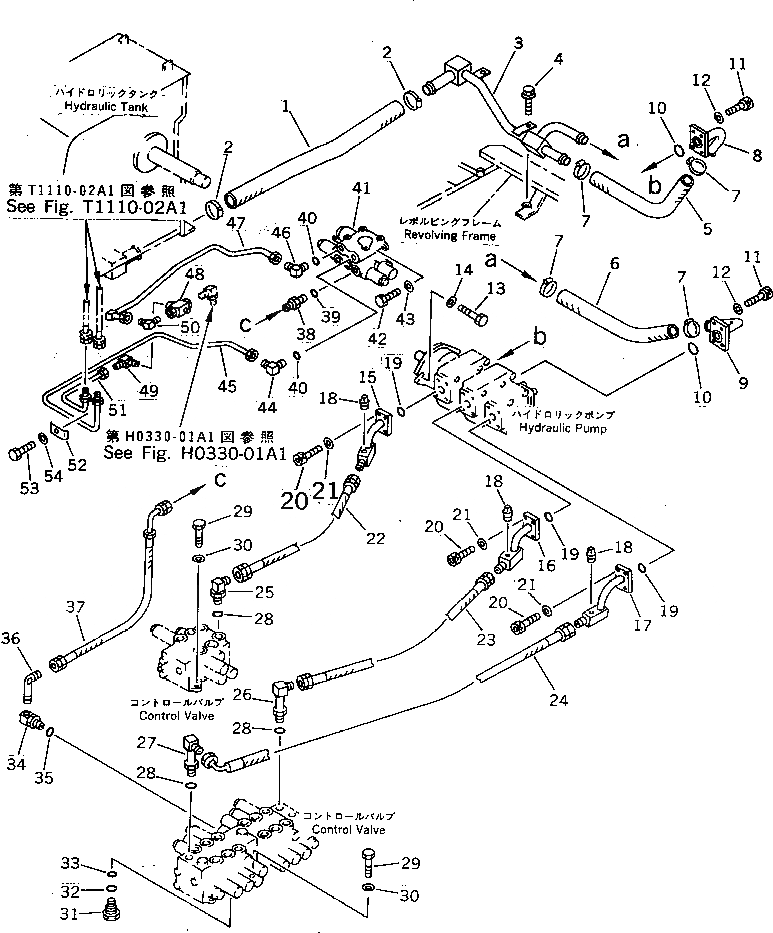

Запчасти Komatsu PC07-2 ГИДРОЛИНИЯ (ВСАСЫВ. И ПОДАЮЩАЯ ЛИНИЯ) (ДЛЯ НАВЕСН. ОБОРУД.)(№-) ГИДРАВЛИКА

1

07260-22645

HOSE

2

07281-00419

CLAMP

3

20W-62-22112

TUBE

|3

20W-62-22111

TUBE

4

01435-00812

BOLT

5

07260-22032

HOSE

6

07260-22036

HOSE

7

07281-00359

CLAMP

8

20M-62-72111

TUBE

9

20W-62-22121

TUBE

10

07000-03025

O-RING

11

01252-40825

BOLT

12

01643-30823

WASHER

13

01010-51030

BOLT

14

01643-31032

WASHER

15

20M-62-72130

TUBE

16

20M-62-72140

TUBE

17

20W-62-22131

TUBE

18

07042-30108

PLUG

19

07000-02021

O-RING

20

01252-40825

BOLT

21

01643-30823

WASHER

22

20W-62-22141

HOSE

23

20W-62-22340

HOSE

24

20M-62-72161

HOSE

25

20W-62-12180

ELBOW

26

20W-62-22180

ELBOW

27

20R-62-11311

ELBOW

28

07002-12034

O-RING

29

01010-50830

BOLT

30

01643-30823

WASHER

31

709-32-13610

PLUG

32

07002-12434

O-RING

33

700-22-11410

O-RING

34

20W-973-2510

ELBOW

35

07002-02434

O-RING

36

20M-973-7520

ELBOW

37

20W-973-2530

HOSE

38

07230-20422

UNION

39

07002-12034

O-RING

40

07002-11823

O-RING

41

709-31-11301

VALVE ASS'Y,(SEE FIG.6215)

42

01010-50825

BOLT

43

01643-30823

WASHER

44

20T-62-61620

ELBOW

45

20M-973-7540

TUBE

46

20T-62-61670

ELBOW

47

20M-973-7550

TUBE

48

20M-973-1600

VALVE ASS'Y

49

20N-62-49490

ELBOW

50

20C-973-1220

ELBOW

51

20M-973-7560

TUBE

52

20M-973-7590

CLAMP

53

01010-50820

BOLT

54

01643-30823

WASHER
