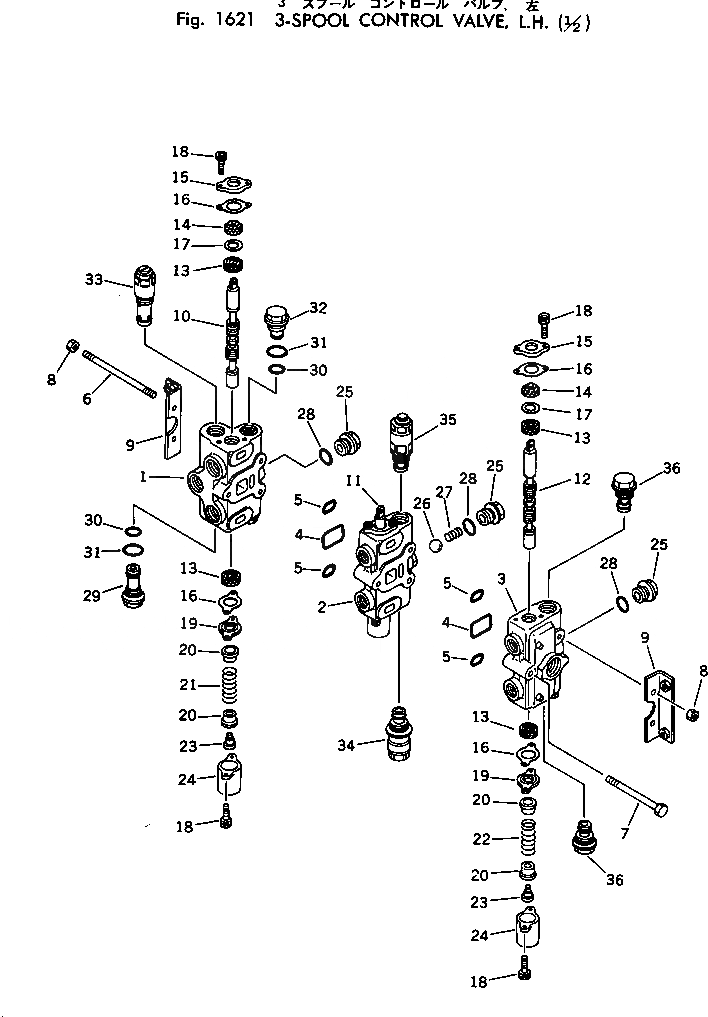

Запчасти Komatsu PC10-2 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН¤ ЛЕВ. (/) ГИДРАВЛИКА

|1

700-23-34000

VALVE ASS'Y,L.H.

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-23-13110

STUD

7

700-23-13140

BOLT

8

01580-10806

NUT

9

700-26-11170

ANGLE

10

SPOOL

11

SPOOL

12

SPOOL

13

700-22-11252

U-PACKING

14

700-22-11261

SEAL,DUST

15

700-22-11270

PLATE

16

700-22-11420

GASKET

17

700-22-11430

COLLAR

18

01252-30616

BOLT

19

700-22-11281

PLATE

20

700-22-11290

RETAINER

21

700-22-11311

SPRING

22

700-23-13130

SPRING

23

700-22-11320

PLUG

24

700-22-11331

COVER

25

700-22-11351

PLUG

26

700-22-12340

BALL

27

700-22-12350

SPRING

28

07002-12434

O-RING

29

700-26-11150

PLUG

30

07000-12014

O-RING

31

07002-02434

O-RING

32

700-22-11360

PLUG

33

700-22-53001

VALVE ASS'Y,MAIN RELIEF

34

700-20-72000

VALVE ASS'Y,SUCTION AND SAFETY

35

700-20-75000

VALVE ASS'Y,SUCTION AND SAFETY

36

700-20-81000

VALVE ASS'Y,SUCTION
