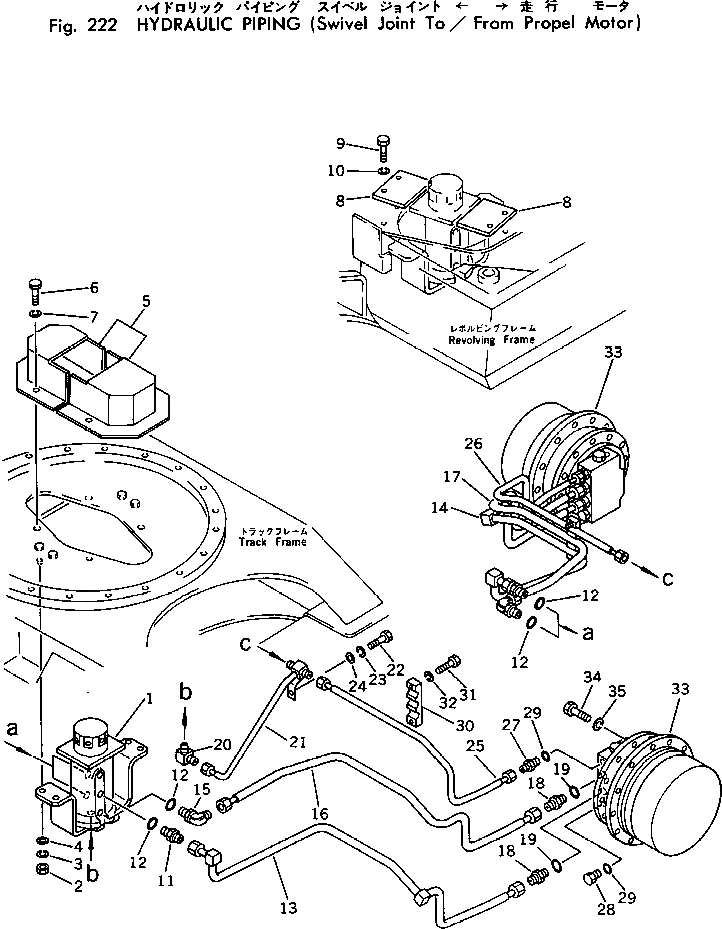

Запчасти Komatsu PC10-3 ГИДРОЛИНИЯ (ПОВОРОТНОЕ СОЕДИНЕНИЕ TO/FROM PКАНАТL МОТОР) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

1

703-05-12110

SWIVEL JOINT ASS'Y,SWIVEL

2

01580-11008

NUT

3

01602-21030

WASHER,SPRING

4

01642-21016

WASHER

5

20N-60-17132

COVER

6

01010-51020

BOLT

7

01602-21030

WASHER,SPRING

8

20N-60-17121

PLATE

9

01010-51035

BOLT

10

01602-21030

WASHER,SPRING

11

20N-62-31270

NIPPLE

12

07002-11823

O-RING

13

20N-62-31110

TUBE

14

20N-62-31120

TUBE

15

20N-62-31280

ELBOW

16

20N-62-31130

TUBE

17

20N-62-31140

TUBE

18

20M-62-11310

NIPPLE

19

07000-12014

O-RING

20

20N-62-31290

ELBOW

21

20N-62-31170

TUBE

22

01010-50820

BOLT

23

01602-20825

WASHER,SPRING

24

01642-20810

WASHER

25

20N-62-31150

TUBE

26

20N-62-31160

TUBE

27

20N-62-31250

NIPPLE

28

20N-62-31220

PLUG

29

07000-12011

O-RING

30

20N-62-31240

CLAMP

31

01010-51045

BOLT

32

01602-21030

WASHER,SPRING

33

20N-60-31200

TRAVEL MOTOR ASS'Y

34

01010-51230

BOLT

35

01602-21236

WASHER,SPRING
