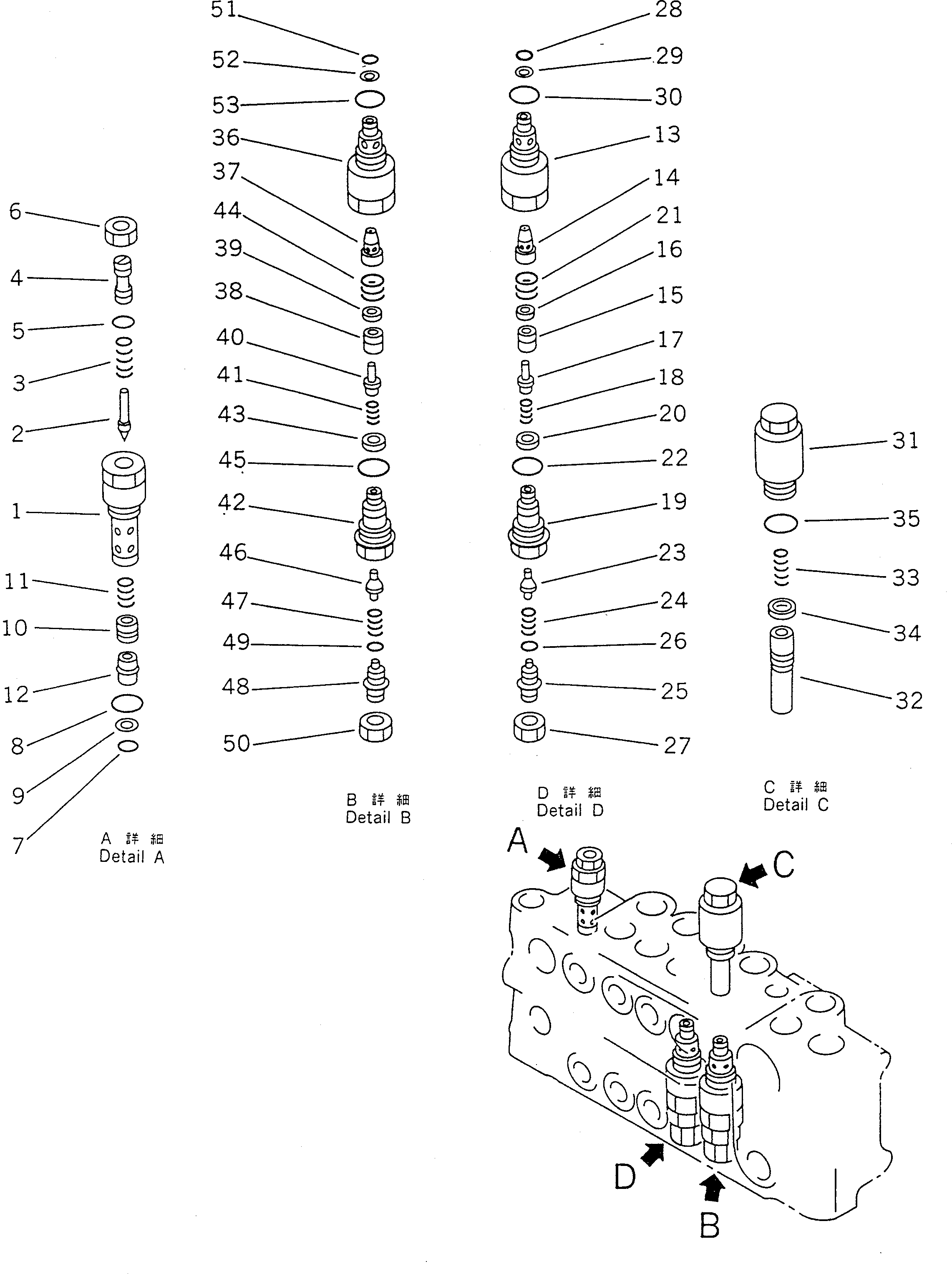

Запчасти Komatsu PC100-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ПРАВ. (/) (С СЕРВИСНЫМ КЛАПАНОМ)(№8-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-36001

VALVE ASS'Y,R.H.

|1

709-70-55300

VALVE ASS'Y,RELIEF

1

SLEEVE

2

709-70-51420

POPPET

3

709-70-51230

SPRING

4

700-20-51340

SCREW

5

07000-02011

O-RING

6

01582-11411

NUT

7

700-22-11410

O-RING

8

07002-02434

O-RING

9

700-20-51550

RING

10

VALVE

11

709-70-51210

SPRING

12

700-20-51540

RETAINER

|13

709-70-71500

VALVE ASS'Y,SUCTION AND SAFETY

13

709-70-71511

SLEEVE

14

SLEEVE

15

POPPET

16

SEAL

17

PISTON

18

709-70-71210

SPRING

19

PLUG

20

SEAL

21

709-70-71220

SPRING

22

07002-02434

O-RING

23

POPPET

24

SPRING

25

SCREW

26

O-RING

27

NUT

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

07002-03034

O-RING

|31

700-81-82001

VALVE ASS'Y,SUCTION

31

700-80-62310

SLEEVE

32

VALVE

33

700-80-62250

SPRING

34

SEAL

35

07002-03034

O-RING

|36

709-70-71404

VALVE ASS'Y,SUCTION AND SAFETY

36

709-70-71511

SLEEVE

37

SLEEVE

38

POPPET

39

SEAL

40

PISTON

41

709-70-71210

SPRING

42

PLUG

43

SEAL

44

709-70-71220

SPRING

45

07002-02434

O-RING

46

POPPET

47

SPRING

48

SCREW

49

O-RING

50

NUT

51

700-22-11410

O-RING

52

700-80-64220

RING,BACK-UP

53

07002-03034

O-RING
