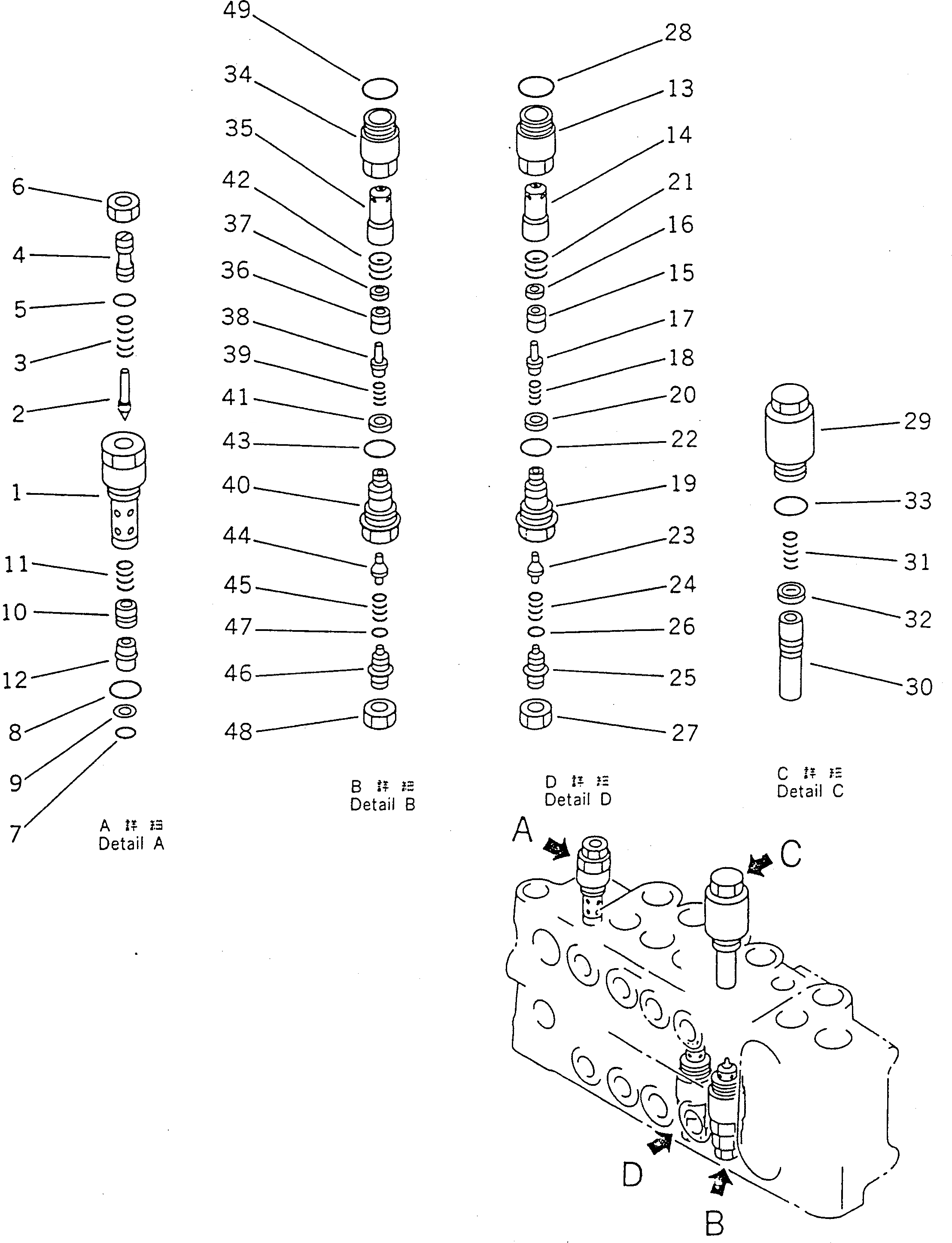

Запчасти Komatsu PC100-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ПРАВ. (/) (С P.P.C. СЕРВИСНЫЙ КЛАПАН)(НАВЕСН. ОБОРУД.) (ДЛЯ ЯПОН.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-86-11200

VALVE ASS'Y,R.H.

|1

709-70-55300

VALVE ASS'Y,RELIEF

1

SLEEVE

2

709-70-51420

POPPET

3

709-70-51230

SPRING

4

700-20-51340

SCREW

5

07000-02011

O-RING

6

01582-11411

NUT

7

700-22-11410

O-RING

8

07002-02434

O-RING

9

700-20-51550

RING

10

VALVE

11

709-70-51210

SPRING

12

700-20-51540

RETAINER

|13

709-70-74501

VALVE ASS'Y,SUCTION AND SAFETY

13

709-70-71112

SLEEVE

14

SLEEVE

15

POPPET

16

SEAL

17

PISTON

18

709-70-71210

SPRING

19

PLUG

20

SEAL

21

709-70-71220

SPRING

22

07002-02434

O-RING

23

POPPET

24

SPRING

25

SCREW

26

O-RING

27

NUT

28

709-25-11390

O-RING

|29

709-20-81201

VALVE ASS'Y,SUCTION

29

709-20-61110

SLEEVE

30

VALVE

31

709-20-61160

SPRING

32

SEAL

33

709-25-11390

O-RING

|34

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

34

709-70-71112

SLEEVE

35

SLEEVE

36

POPPET

37

SEAL

38

PISTON

39

709-70-71210

SPRING

40

PLUG

41

SEAL

42

709-70-71220

SPRING

43

07002-02434

O-RING

44

POPPET

45

SPRING

46

SCREW

47

O-RING

48

NUT

49

709-25-11390

O-RING
