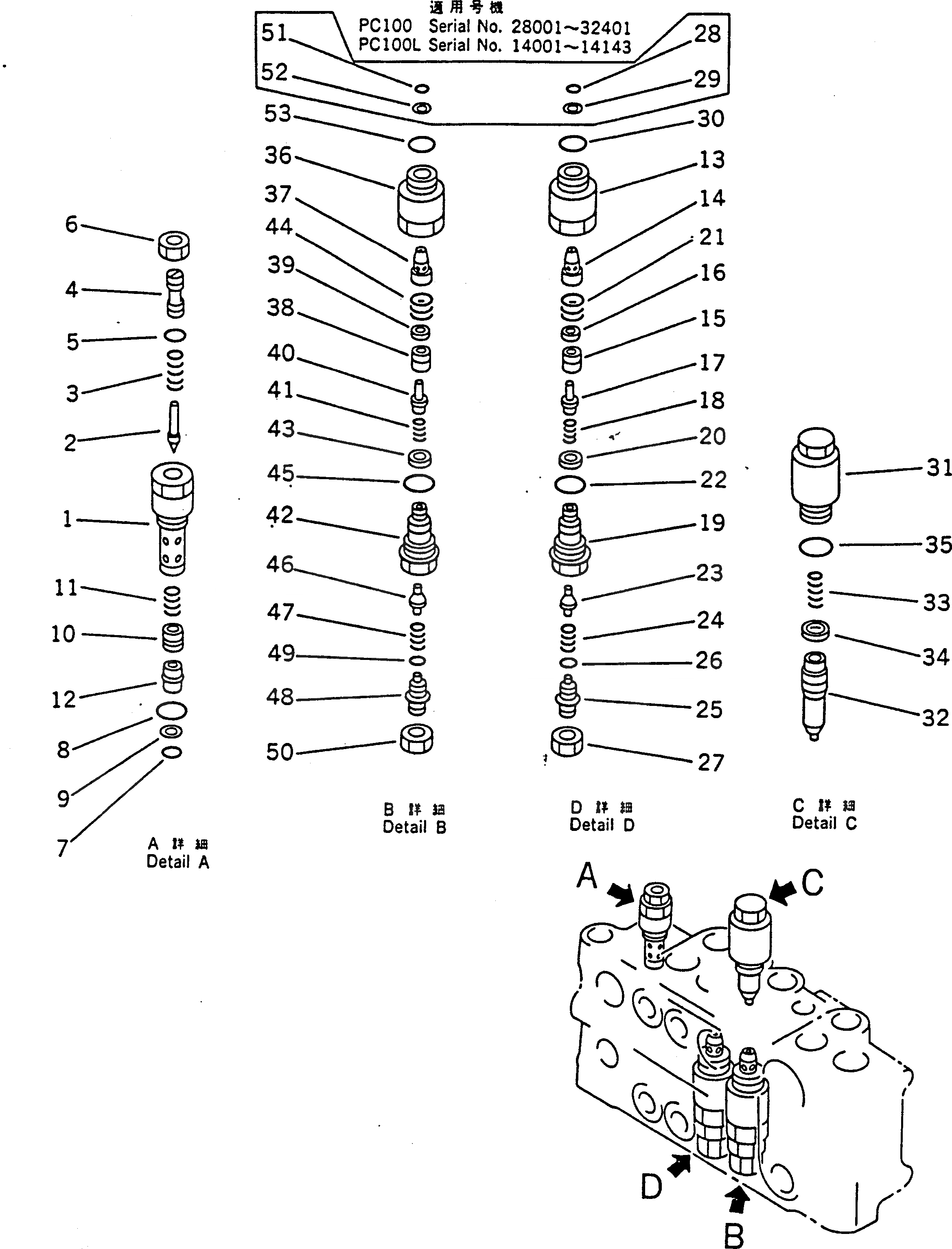

Запчасти Komatsu PC100-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ПРАВ.(/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-48001

VALVE ASS'Y,R.H.

|$1

700-85-38003

VALVE ASS'Y,R.H.

|$2

700-85-38002

VALVE ASS'Y,R.H.

|$3

709-70-55300

VALVE ASS'Y,RELIEF

1

SLEEVE

2

709-70-51420

POPPET

3

709-70-51230

SPRING

4

700-20-51340

SCREW

5

07000-02011

O-RING

6

01582-11411

NUT

7

700-22-11410

O-RING

8

07002-02434

O-RING

9

700-20-51550

RING

10

VALVE

11

709-70-51210

SPRING

12

700-20-51540

RETAINER

|$16

709-70-74501

VALVE ASS'Y,SUCTION AND SAFETY

|$17

709-70-71500

VALVE ASS'Y,SUCTION AND SAFETY

13

709-70-71112

SLEEVE

13

709-70-71511

SLEEVE

14

SLEEVE

15

POPPET

16

SEAL

17

PISTON

18

709-70-71210

SPRING

19

PLUG

20

SEAL

21

709-70-71220

SPRING

22

07002-02434

O-RING

23

POPPET

24

SPRING

25

SCREW

26

O-RING

27

NUT

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

709-25-11390

O-RING

30

07002-03034

O-RING

|$38

709-20-81201

VALVE ASS'Y,SUCTION

|$39

700-81-82001

VALVE ASS'Y,SUCTION

31

709-20-61110

SLEEVE

31

700-80-62310

SLEEVE

32

VALVE

32

VALVE

33

709-20-61160

SPRING

33

700-80-62250

SPRING

34

SEAL

34

SEAL

35

709-25-11390

O-RING

35

07002-03034

O-RING

|$50

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

|$51

709-70-71404

VALVE ASS'Y,SUCTION AND SAFETY

36

709-70-71112

SLEEVE

36

709-70-71511

SLEEVE

37

SLEEVE

38

POPPET

39

SEAL

40

PISTON

41

709-70-71210

SPRING

42

PLUG

43

SEAL

44

709-70-71220

SPRING

45

07002-02434

O-RING

46

POPPET

47

SPRING

48

SCREW

49

O-RING

50

NUT

51

700-22-11410

O-RING

52

700-80-64220

RING,BACK-UP

53

709-25-11390

O-RING

53

07002-03034

O-RING
