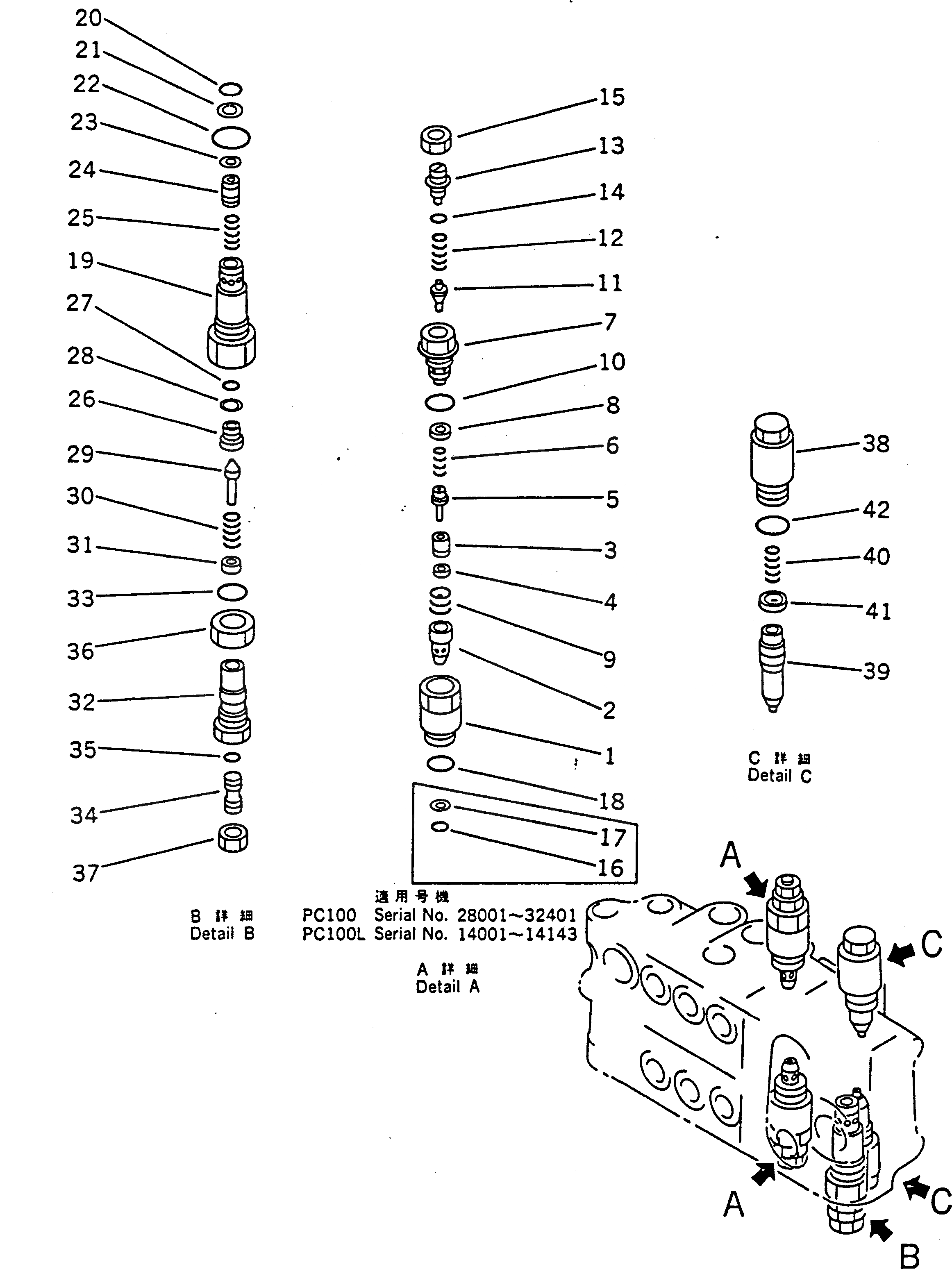

Запчасти Komatsu PC100-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ПРАВ.(/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-48001

VALVE ASS'Y,R.H.

|$1

700-85-38003

VALVE ASS'Y,R.H.

|$2

700-85-38002

VALVE ASS'Y,R.H.

|$3

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

|$4

709-70-71302

VALVE ASS'Y,SUCTION AND SAFETY

1

709-70-71112

SLEEVE

1

709-70-71511

SLEEVE

2

SLEEVE

3

POPPET

4

SEAL

5

PISTON

6

709-70-71210

SPRING

7

PLUG

8

SEAL

9

709-70-71220

SPRING

10

07002-02434

O-RING

11

POPPET

12

SPRING

13

SCREW

14

O-RING

15

NUT

16

700-22-11410

O-RING

17

700-80-64220

RING,BACK-UP

18

709-25-11390

O-RING

18

07002-03034

O-RING

|$25

709-80-52800

VALVE ASS'Y,RELIEF

19

SLEEVE

20

700-13-31161

O-RING

21

700-80-51190

RING,BACK-UP

22

07002-03334

O-RING

23

700-80-51350

RING,SNAP

24

VALVE

25

700-80-51390

SPRING

26

700-80-51740

SEAT

27

07000-22012

O-RING

28

07001-02012

RING,BACK-UP

29

700-80-61190

POPPET

30

709-20-51231

SPRING

31

709-90-51260

RETAINER

32

700-80-51360

HOLDER

33

07002-02434

O-RING

34

700-80-51630

SCREW

35

07000-02011

O-RING

36

07239-12410

NUT

37

01582-11411

NUT

|$45

709-20-81201

VALVE ASS'Y,SUCTION

|$46

700-81-81000

VALVE ASS'Y,SUCTION

38

709-20-61110

SLEEVE

38

700-80-62310

SLEEVE

39

VALVE

39

VALVE

40

709-20-61160

SPRING

40

700-80-62250

SPRING

41

SEAL

41

SEAL

42

709-25-11390

O-RING

42

07002-03034

O-RING
