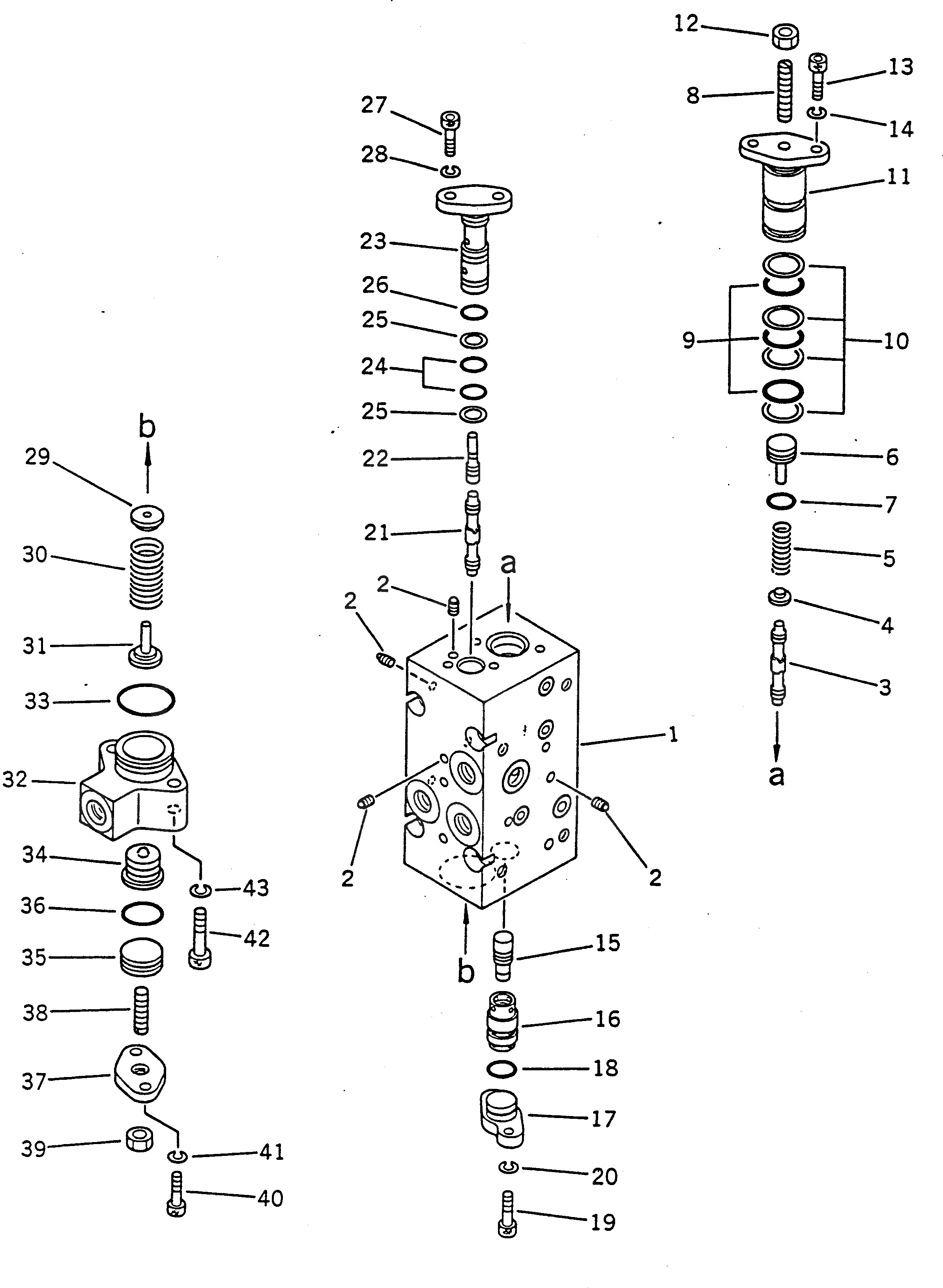

Запчасти Komatsu PC100-5S ГИДР. НАСОС. (C.O. И N.C. КЛАПАН В СБОРЕ¤ ПЕРЕДН.) (9/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-23-04014

PUMP ASS'Y,HYDRAULIC (HPV55+55)

|1

708-23-04512

VALVE ASS'Y,FRONT

|1

708-23-04711

VALVE ASS'Y,C.O. AND N.C.

|1

708-23-00441

BODY ASS'Y

1

BODY

2

EXPANDER

3

708-25-17141

SPOOL

4

708-25-17180

SEAT

5

708-25-17690

SPRING

6

708-25-17460

PLUG

7

07000-02010

O-RING

8

708-25-17430

SCREW

9

07000-12021

O-RING

10

07001-02021

RING,BACK-UP

11

708-25-17131

COVER

12

01580-10806

NUT

13

708-25-15320

BOLT

14

01602-20619

WASHER,SPRING

15

708-25-17160

PISTON

16

708-25-17150

SLEEVE

17

708-25-17170

COVER

18

07000-02014

O-RING

19

708-25-15320

BOLT

20

01602-20619

WASHER,SPRING

21

708-25-17141

SPOOL

22

708-25-17220

PISTON

23

708-25-17451

SLEEVE

24

07000-12012

O-RING

25

07001-02012

RING,BACK-UP

26

07000-02012

O-RING

27

708-25-15320

BOLT

28

01602-20619

WASHER,SPRING

29

708-25-17370

SEAT

30

708-25-17250

SPRING

31

708-25-17260

SEAT

32

708-23-17290

COVER

33

07000-03028

O-RING

34

708-23-17270

PISTON

35

708-25-17380

PLUG

36

07000-02021

O-RING

37

708-23-17240

COVER

38

708-25-15340

SCREW

39

01580-10806

NUT

40

708-25-15320

BOLT

41

01602-20619

WASHER,SPRING

42

706-75-40310

BOLT

43

01602-20619

WASHER,SPRING
