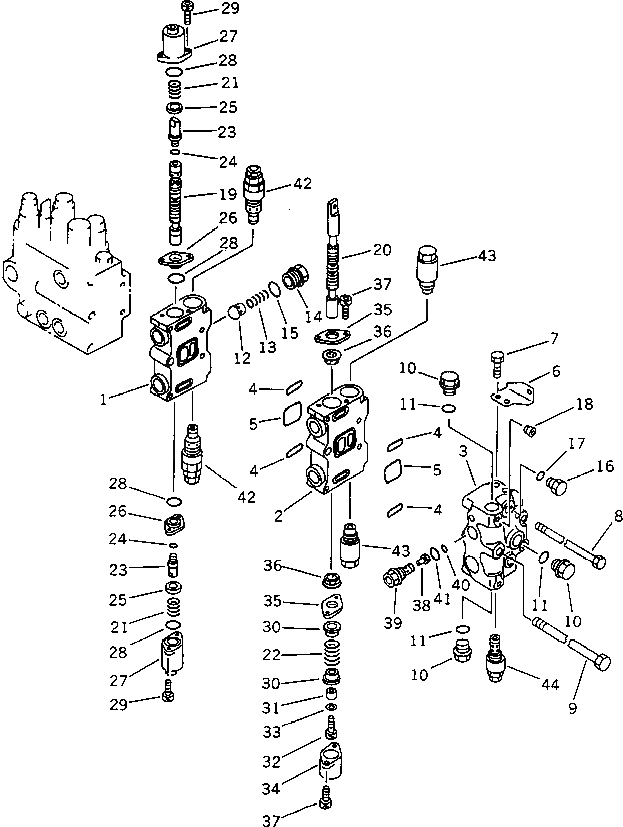

Запчасти Komatsu PC100-5Z ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-86-11300

VALVE ASS'Y,L.H.

1

BLOCK,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-03038

O-RING

5

07000-13050

O-RING

6

700-84-16420

BRACKET

7

01010-51020

BOLT

8

700-87-11110

BOLT

9

700-87-11120

BOLT

10

709-74-91860

PLUG

11

07002-12434

O-RING

12

700-42-31460

VALVE

13

700-42-31470

SPRING

14

700-84-11320

PLUG

15

07002-13034

O-RING

16

07040-11409

PLUG

17

07002-01423

O-RING

18

07043-70108

PLUG

19

SPOOL,ARM LOW

20

SPOOL,L.H. TRAVEL

21

700-84-15740

SPRING

22

700-84-15710

SPRING

23

700-84-13790

JOINT

24

07002-11223

O-RING

25

700-84-13781

RETAINER

26

700-84-13490

PLATE

27

700-84-12510

CASE

28

700-84-11240

O-RING

29

01252-30625

BOLT

30

700-84-13711

RETAINER

31

700-84-11641

COLLAR

32

01252-30830

BOLT

33

01643-30823

WASHER

34

700-84-11390

COVER

35

700-84-13891

PLATE

36

700-84-13910

SEAL

37

01252-30625

BOLT

|38

709-70-91300

ORIFICE ASS'Y

38

ORIFICE

39

SENSOR

40

07000-02014

O-RING

41

07002-02434

O-RING

42

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

43

709-20-81201

VALVE ASS'Y,SUCTION

44

709-70-55300

VALVE ASS'Y,RELIEF
