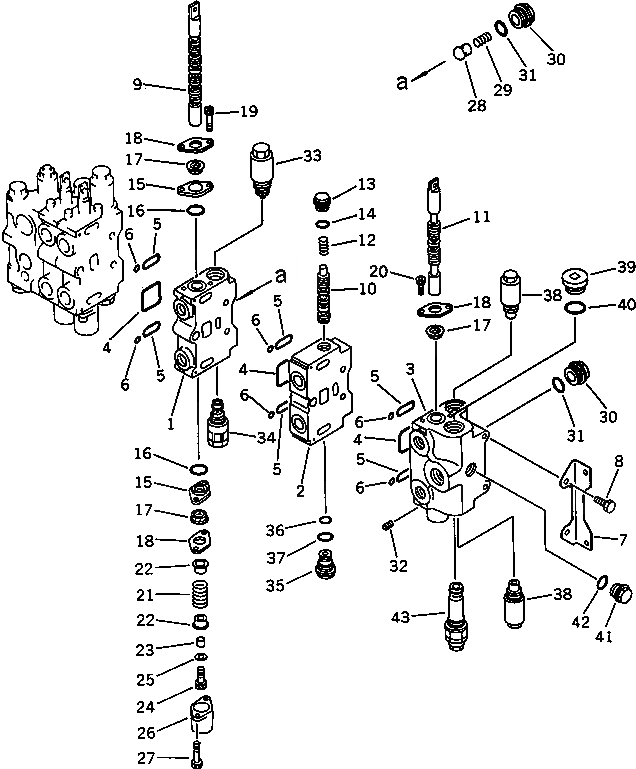

Запчасти Komatsu PC100S-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-24003

VALVE ASS'Y,R.H.

1

BLOCK,VALVE

2

BLOCK,VALVE

3

BODY,VALVE

4

07000-13050

O-RING

5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-84-11330

BRACKET

8

01010-51020

BOLT

9

SPOOL,BUCKET

10

SPOOL

11

SPOOL,R.H. TRAVEL

12

700-84-13880

SPRING

13

700-84-13870

PLUG

14

07002-02434

O-RING

15

700-84-13921

PLATE

16

700-84-11240

O-RING

17

700-84-13910

SEAL

18

700-84-13891

PLATE

19

01252-30625

BOLT

20

01252-30612

BOLT

21

700-84-11650

SPRING

22

700-84-13711

RETAINER

23

700-84-11640

COLLAR

24

01252-30830

BOLT

25

01643-30823

WASHER

26

700-84-11390

COVER

27

01252-30630

BOLT

28

700-42-31460

VALVE

29

700-42-31470

SPRING

30

700-84-11320

PLUG

31

07002-13034

O-RING

32

706-86-51170

PLUG

33

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

34

700-81-74001

VALVE ASS'Y,SAFETY

35

700-84-13510

NIPPLE

36

07000-02015

O-RING

37

07002-02434

O-RING

38

700-81-81000

VALVE ASS'Y,SUCTION

39

07040-13316

PLUG

40

07002-13334

O-RING

41

700-22-11370

PLUG

42

07002-12434

O-RING

43

700-86-55001

VALVE ASS'Y,RELIEF
