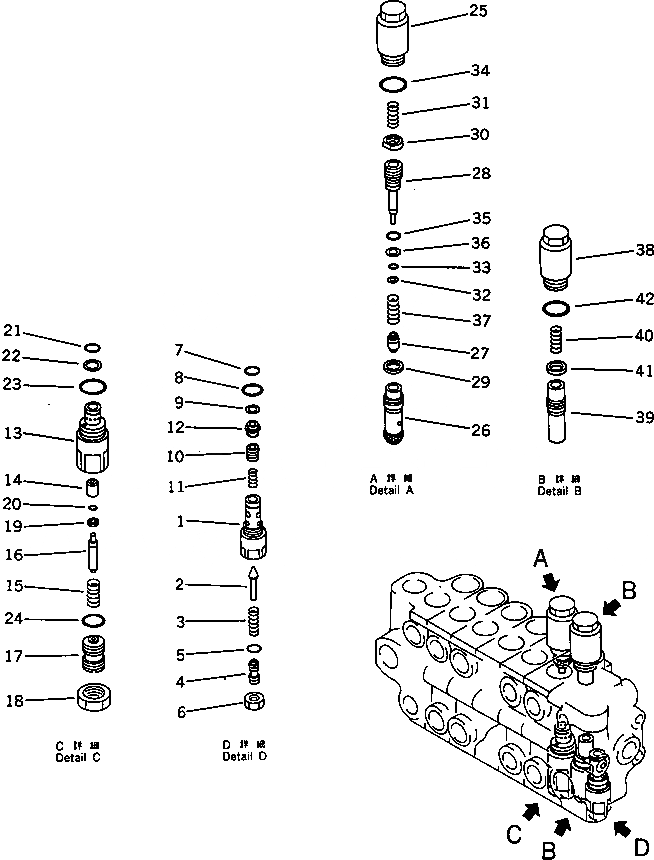

Запчасти Komatsu PC100SS-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-19001

CONTROL VALVE ASS'Y,L.H.

|1

700-26-53000

VALVE ASS'Y

1

SLEEVE

2

700-80-61190

POPPET

3

700-20-51580

SPRING

4

700-20-51340

SCREW

5

07000-02011

O-RING

6

01582-11411

NUT

7

700-22-11410

O-RING

8

07002-02434

O-RING

9

700-20-51550

RING

10

VALVE

11

700-20-51610

SPRING

12

700-20-51540

RETAINER

|13

700-81-71001

SAFETY VALVE ASS'Y

13

SLEEVE

14

POPPET

15

SPRING

16

PISTON

17

SCREW

18

NUT

19

SEAL

20

O-RING

21

700-22-11410

O-RING

22

700-80-64220

RING,BACK-UP

23

07002-03034

O-RING

24

O-RING

|25

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

25

700-80-62310

SLEEVE

26

VALVE

27

POPPET

28

PISTON

29

SEAL

30

NUT

31

700-80-62250

SPRING

32

SEAL

33

O-RING

34

07002-03034

O-RING

35

O-RING

36

RING,BACK-UP

37

SPRING

|38

700-81-81000

VALVE ASS'Y,SUCTION

38

SLEEVE

39

VALVE

40

700-80-62250

SPRING

41

SEAL

42

07002-03034

O-RING
