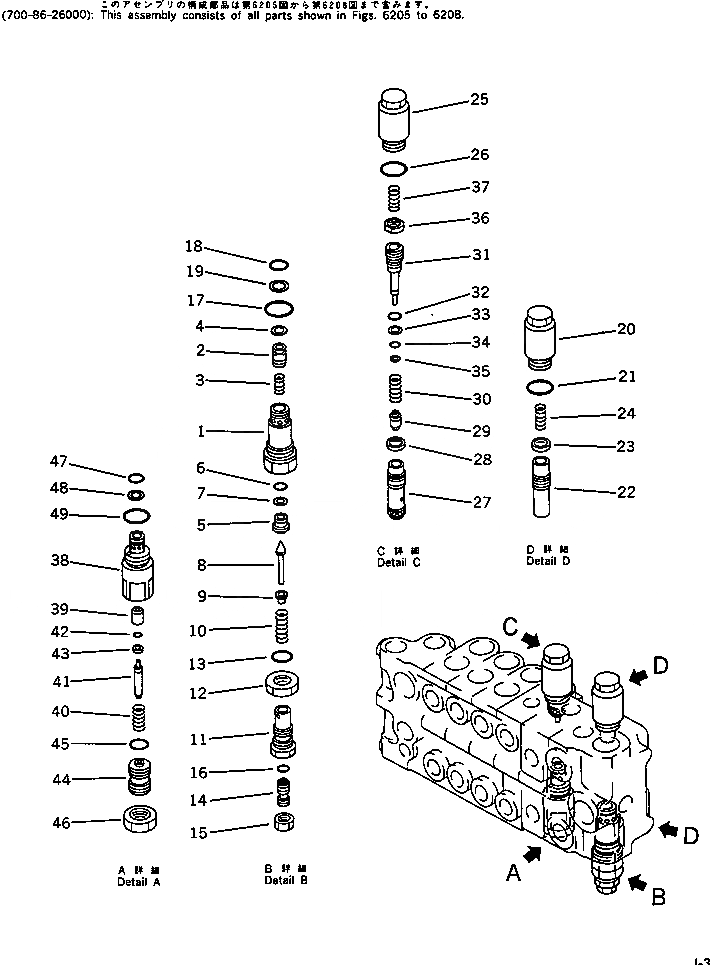

Запчасти Komatsu PC100US-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-26000

CONTROL VALVE ASS'Y,R.H.

|$1

700-86-55001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-80-51380

VALVE

3

700-80-51390

SPRING

4

700-80-51350

RING,SNAP

5

700-80-51340

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

720-68-15540

POPPET

9

720-68-15550

RETAINER

10

720-68-15560

SPRING

11

700-80-51360

HOLDER

12

07239-12410

NUT

13

07002-02434

O-RING

14

700-80-51630

SCREW

15

01582-11411

NUT

16

07000-02011

O-RING

17

07002-03334

O-RING

18

700-13-31161

O-RING

19

700-80-51190

RING,BACK-UP

|$21

700-81-81000

VALVE ASS'Y,SUCTION

20

SLEEVE

21

07002-03034

O-RING

22

VALVE

23

SEAL

24

700-80-62250

SPRING

|$27

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

25

700-80-62310

SLEEVE

26

07002-03034

O-RING

27

VALVE

28

SEAL

29

POPPET

30

SPRING

31

PISTON

32

O-RING

33

RING,BACK-UP

34

O-RING

35

SEAL

36

NUT

37

700-80-62250

SPRING

|$41

700-81-74001

VALVE ASS'Y,SAFETY

38

SLEEVE

39

POPPET

40

SPRING

41

PISTON

42

O-RING

43

SEAL

44

SCREW

45

O-RING

46

01583-12414

NUT

47

700-22-11410

O-RING

48

700-80-64220

RING,BACK-UP

49

07002-03034

O-RING
