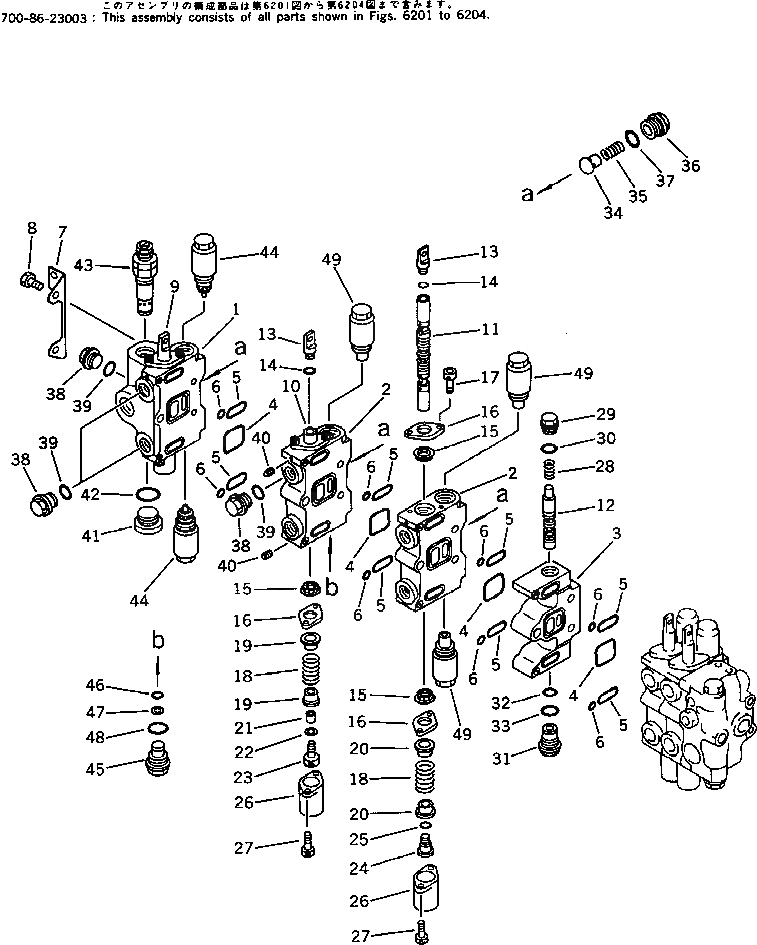

Запчасти Komatsu PC100US-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-23003

CONTROL VALVE ASS'Y,L.H.

1

BODY,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

07000-13050

O-RING

5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-84-11330

BRACKET

8

01010-51020

BOLT

9

SPOOL,SERVICE

10

SPOOL,BOOM HIGH

11

SPOOL,SWING

12

SPOOL

13

700-84-11870

JOINT

14

07002-11223

O-RING

15

SEAL

16

700-84-13891

PLATE

17

01252-30612

BOLT

18

700-84-11650

SPRING

19

700-84-13711

RETAINER

20

700-84-13721

RETAINER

21

700-84-11640

COLLAR

22

01643-30823

WASHER

23

01252-30830

BOLT

24

700-84-11880

PLUG

25

07002-11223

O-RING

26

700-84-11390

COVER

27

01252-30625

BOLT

28

700-84-13570

SPRING

29

700-84-13870

PLUG

30

07002-02434

O-RING

31

700-84-13510

NIPPLE

32

07000-02015

O-RING

33

07002-02434

O-RING

34

700-42-31460

VALVE

35

700-42-31470

SPRING

36

700-84-11320

PLUG

37

07002-13034

O-RING

38

700-22-11370

PLUG

39

07002-12434

O-RING

40

706-86-51170

PLUG

41

07040-13316

PLUG

42

07002-13334

O-RING

43

700-86-55001

VALVE ASS'Y,RELIEF

44

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

45

700-84-13960

PLUG

46

700-22-11410

O-RING

47

700-80-64220

RING,BACK-UP

48

07002-03034

O-RING

49

700-81-81000

VALVE ASS'Y,SUCTION
