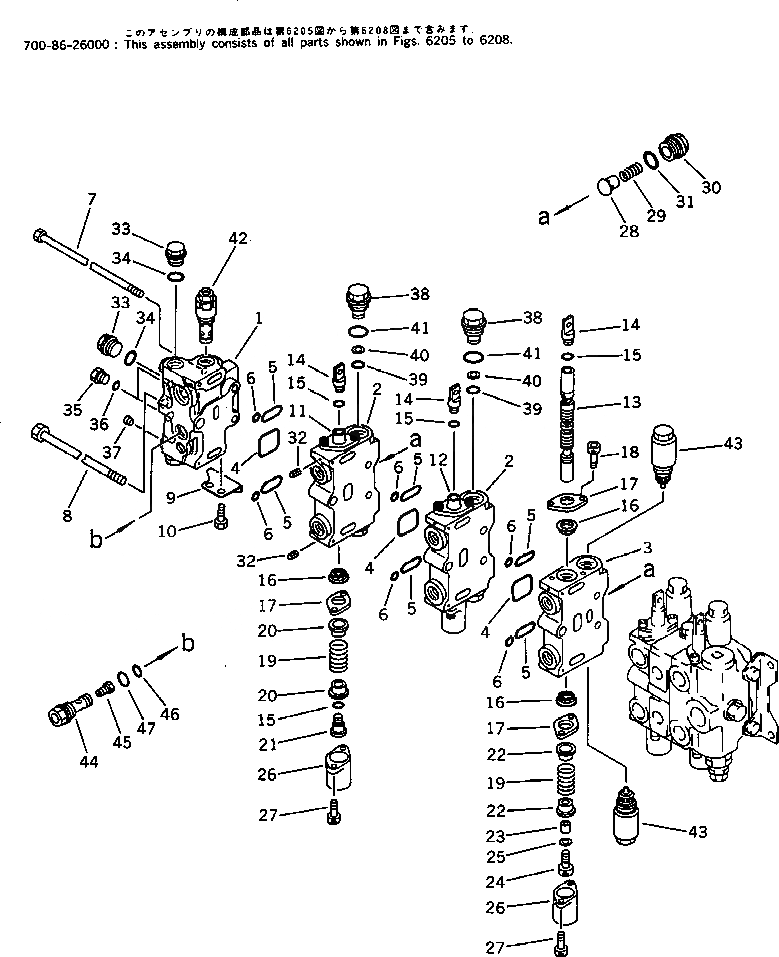

Запчасти Komatsu PC100US-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-26000

CONTROL VALVE ASS'Y,R.H.

1

COVER,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

07000-13050

O-RING

5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-87-11110

BOLT

8

700-87-11120

BOLT

9

700-84-13830

BRACKET

10

01010-51020

BOLT

11

SPOOL,BOOM SWING

12

SPOOL,ARM

13

SPOOL,BOOM

14

700-84-11870

JOINT

15

07002-11223

O-RING

16

700-84-13910

SEAL

17

700-84-13891

PLATE

18

01252-30612

BOLT

19

700-84-11650

SPRING

20

700-84-13721

RETAINER

21

700-84-11880

PLUG

22

700-84-13711

RETAINER

23

700-84-11640

COLLAR

24

01252-30830

BOLT

25

01643-30823

WASHER

26

700-84-11390

COVER

27

01252-30625

BOLT

28

700-42-31460

VALVE

29

700-42-31470

SPRING

30

700-84-11320

PLUG

31

07002-13034

O-RING

32

706-86-51170

PLUG

33

700-22-11370

PLUG

34

07002-12434

O-RING

35

07040-11409

PLUG

36

07002-01423

O-RING

37

07043-70108

PLUG

38

700-84-13960

PLUG

39

700-22-11410

O-RING

40

700-80-64220

RING,BACK-UP

41

07002-03034

O-RING

42

700-26-53000

VALVE ASS'Y,MAIN RELIEF

43

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

|44

700-84-13860

ORIFICE ASS'Y

44

700-84-13840

ORIFICE

45

700-84-13850

SENSOR

46

07000-02014

O-RING

47

07002-02434

O-RING
