/ / / / / / МОТОР ХОДА (КОРПУС И ЗАДН. КРЫШКА)

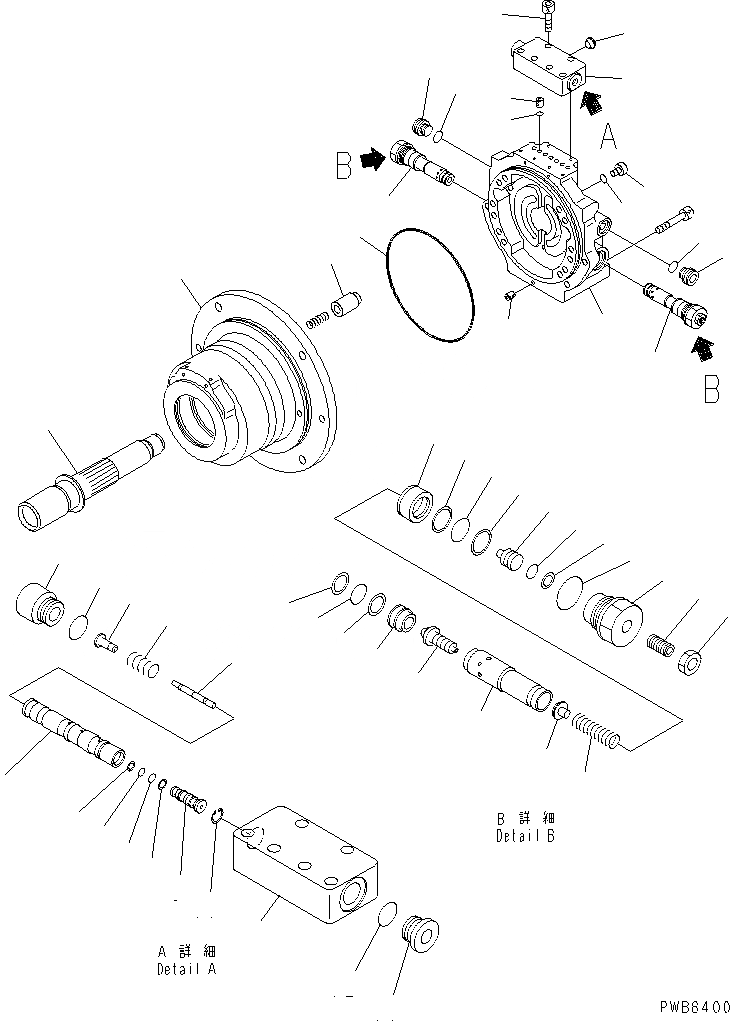

Запчасти Komatsu PC1100-6 МОТОР ХОДА (КОРПУС И ЗАДН. КРЫШКА) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
37
38
39
40
40
41
42
42
43
44
45
|$0
21N-60-32101
MOTOR ASS'Y
|$1
KB2046B-62112
CASE ASS'Y
1
CASE
2
PISTON ASS'Y
|$4
COVER ASS'Y
3
KBB0441-37002
COVER, REAR
|$6
KBB0443-09014
VALVE ASS'Y
4
BODY
5
SPOOL
6
FILTER
7
SPOOL
8
SPRING
9
GUIDE
10
PLUG
11
PLUG
12
O-RING (K1)
13
O-RING (K1)
14
RING, BACK-UP (K1)
15
O-RING (K1)
16
RING, BACK-UP (K1)
17
RING, SNAP
18
KB92703-08450
BOLT, SOCKET HEAD
19
KB95113-01000
O-RING (K1)
20
KB20941-46115
ORIFICE
|$24
KBB0853-01017
RELIEF VALVE ASS'Y
21
SEAT
22
HOUSING
23
POPPET
24
SEAT
25
SPRING
26
PLUG
27
GUIDE
28
SCREW
29
NUT
30
PISTON
31
O-RING (K1)
32
O-RING (K1)
33
O-RING (K1)
34
O-RING (K1)
35
RING (K1)
36
RING (K1)
37
RING, BACK-UP (K1)
38
KB20461-32422
PLUG
39
PLUG,(FOR SHIPPING)
40
KB20461-52406
PLUG
41
KB95113-01100
O-RING (K1)
42
KB95113-01800
O-RING (K1)
43
KB20461-65213
O-RING (K1)
44
KB20941-46111
ORIFICE
45
KB20461-60213
SHAFT
