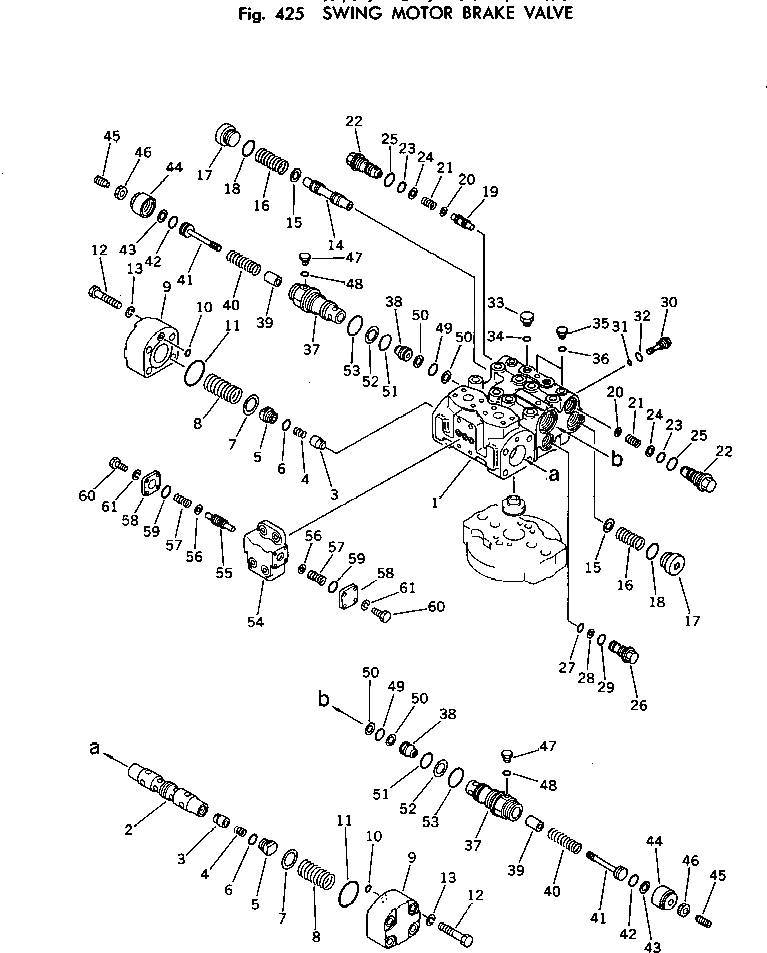

Запчасти Komatsu PC120-2 МОТОР ПОВОРОТА ТОРМОЗНОЙ КЛАПАН ПОВОРОТН. СИСТЕМА

|1

706-75-07700

SWING MOTOR ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.421 AND 425.

|1

706-75-72600

BRAKE VALVE ASS'Y

1

BODY

2

SPOOL

3

706-75-71320

VALVE

4

700-42-31210

SPRING

5

706-75-73160

PLUG

6

07002-12034

O-RING

7

706-75-73170

RING

8

706-75-73220

SPRING

9

706-75-73211

COVER

10

07000-12010

O-RING

11

07000-13050

O-RING

12

01010-51265

BOLT

13

01602-21236

WASHER,SPRING

14

SPOOL

15

706-73-71360

PLATE

16

706-73-71380

SPRING

17

07040-13016

PLUG

18

07002-13034

O-RING

19

SPOOL

20

706-73-77140

PLATE

21

706-75-77150

SPRING

22

706-75-71410

PLUG

23

07000-12016

O-RING

24

07001-02016

RING,BACK-UP

25

07002-12434

O-RING

26

706-73-71460

PLUG

27

07000-12012

O-RING

28

07001-02012

RING,BACK-UP

29

07002-12034

O-RING

30

706-75-71390

ORIFICE

31

07000-01005

O-RING

32

07002-01223

O-RING

33

07040-11409

PLUG

34

07002-11423

O-RING

35

07040-10807

PLUG

36

07002-10823

O-RING

|37

706-75-76100

RELIEF VALVE

37

SLEEVE

38

SEAT

39

VALVE

40

SPRING

41

PISTON

42

O-RING

43

RING

44

PLUG

45

SCREW

46

NUT

47

706-75-75260

PLUG

48

07000-11008

O-RING

49

07000-22018

O-RING

50

07001-02018

RING,BACK-UP

51

07000-13025

O-RING

52

07001-03025

RING,BACK-UP

53

07002-13634

O-RING

|54

706-75-77400

SHUTTLE VALVE ASS'Y

54

BODY

55

SPOOL

56

706-73-77140

PLATE

57

706-75-77150

SPRING

58

706-75-72750

PLATE

59

07000-12021

O-RING

60

01010-60618

BOLT

61

01602-20619

WASHER,SPRING
