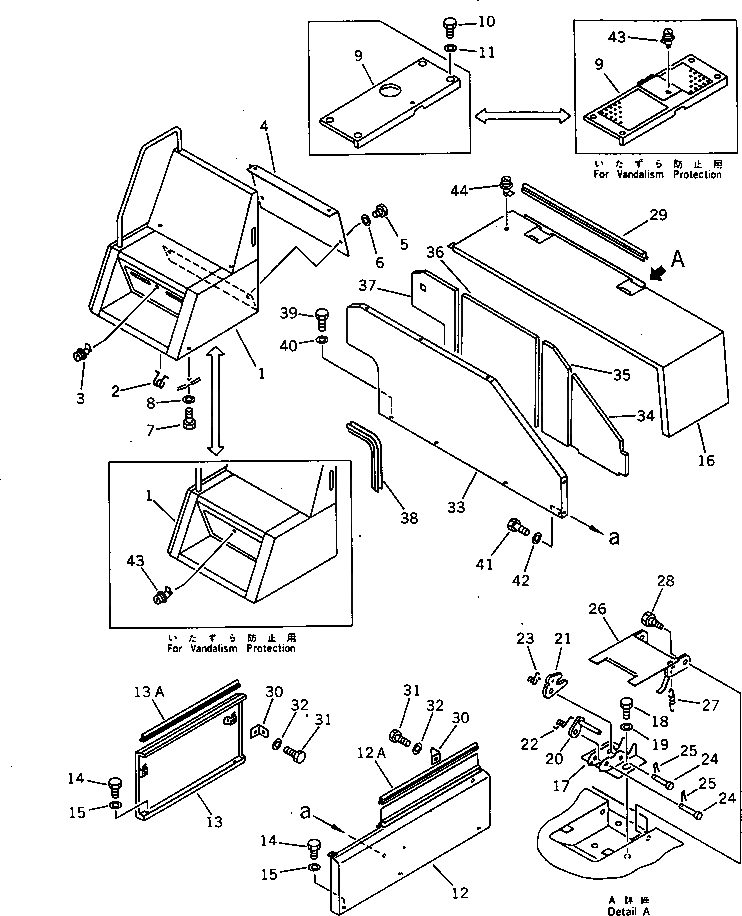

Запчасти Komatsu PC120-3 MACHINERY ОБСТАНОВКА (/)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

203-54-00324

COVER ASS'Y

|$1

203-54-00371

COVER ASS'Y,(FOR VANDALISM PROTECTION)

1

COVER

1

COVER,(FOR VANDALISM PROTECTION)

2

09467-00002

SPRING

3

205-60-71220

LOCK ASS'Y

4

203-54-45390

COVER

5

01010-50816

BOLT

6

01643-30823

WASHER

7

01010-51025

BOLT

8

01643-31032

WASHER

9

203-54-42171

COVER

9

203-54-42880

COVER,(FOR VANDALISM PROTECTION)

10

01010-51020

BOLT

11

01643-31032

WASHER

12

203-54-42172

COVER

12A

203-54-45720

TRIM

13

203-54-42182

COVER

13A

203-54-45720

TRIM

14

01010-51020

BOLT

15

01643-31032

WASHER

16

203-54-42366

COVER

17

21K-54-26310

BRACKET

18

01010-51020

BOLT

19

01643-31032

WASHER

20

21K-54-26330

PLATE

21

21K-54-26340

LEVER

22

21K-54-26350

SPRING

23

21K-54-26360

SPRING

24

04205-11038

PIN

25

04050-13020

PIN,COTTER

26

203-54-45730

COVER

27

21K-54-26380

SPRING

28

21K-54-26370

BOLT

29

09412-10009

SEAL

30

203-54-42780

PLATE

31

01010-51020

BOLT

32

01643-31032

WASHER

33

203-54-44612

COVER ASS'Y

34

203-54-44630

SHEET

35

203-54-44641

SHEET

36

203-54-44651

SHEET

37

203-54-44661

SHEET

38

09412-10005

SEAL

39

01010-51025

BOLT

40

01643-31032

WASHER

41

01010-51020

BOLT

42

01643-31032

WASHER

43

205-60-71220

LOCK ASS'Y

44

205-60-71220

LOCK ASS'Y
