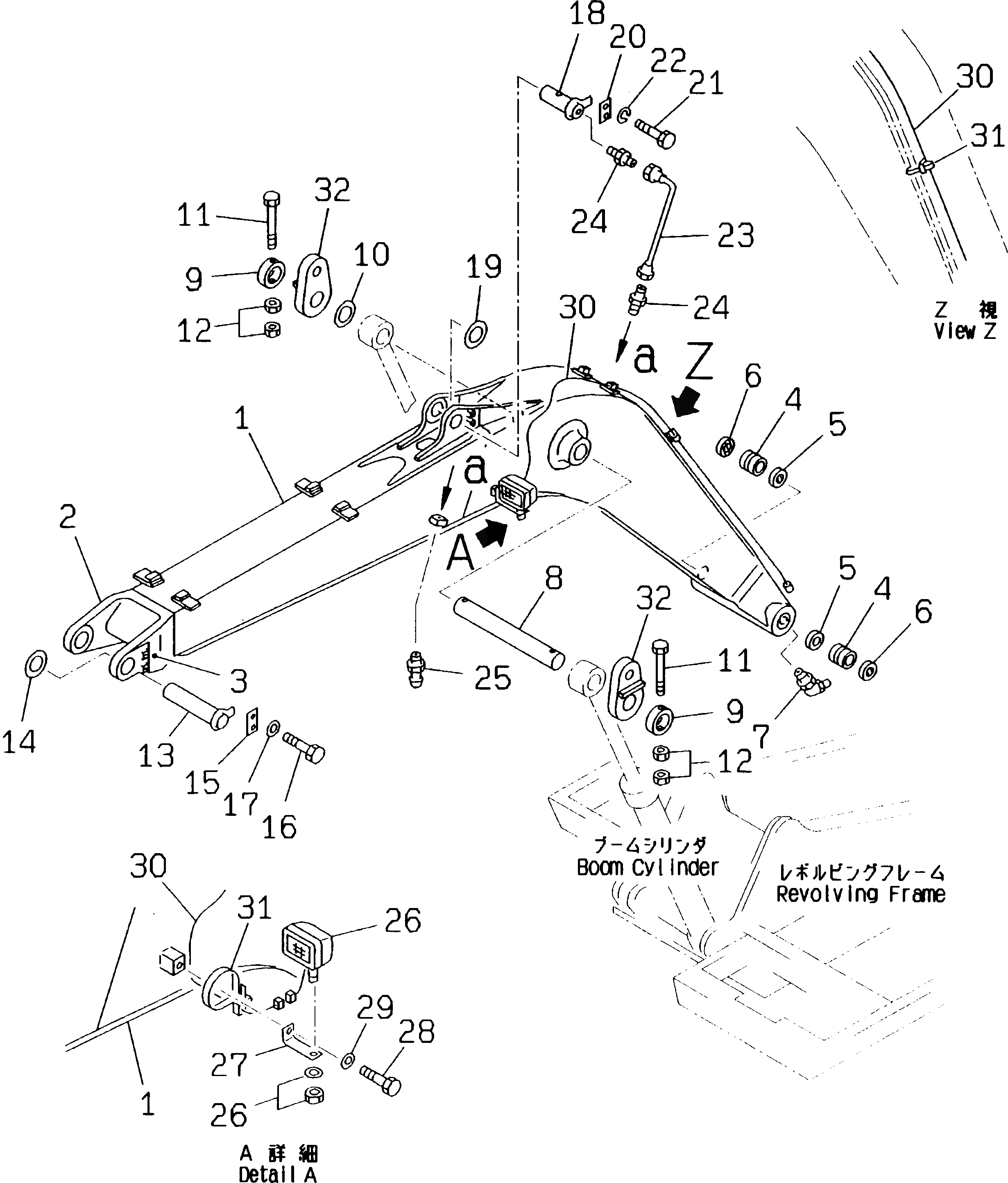

Запчасти Komatsu PC120-5K СТРЕЛА (ТРЕБ-Я ПО БЕЗОПАСНОСТИ ЕС)(№K-) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|1

203-70-00400

BOOM ASS'Y

|1

203-70-00450

BOOM ASS'Y,(FOR ADD. PIPING)

|1

203-70-00490

BOOM ASS'Y,(FOR OVER LOAD WARNING DEVICE)

1

203-70-K1400

BOOM

|1

BOOM

|1

BOOM,(FOR ADD. PIPING)

|1

BOOM,(FOR OVER LOAD WARNING DEVICE)

2

203-70-59530

BRACKET (WELDED)

3

203-46-41130

SEAT (WELDED)

4

203-70-56121

BUSHING

5

07145-00070

SEAL,DUST

6

07145-00070

SEAL,DUST

7

07020-00675

FITTING,GREASE

8

203-70-K1420

PIN

9

21K-70-11410

PLATE

10

203-70-41460

SPACER¤ 1.0MM

11

01019-11640

BOLT

12

01580-11613

NUT

13

202-70-61210

PIN

14

203-70-34270

SPACER¤ 0.5MM

|14

203-70-11210

SPACER¤ 1.0MM

15

203-46-56270

PLATE

16

01010-51230

BOLT

17

01643-31232

WASHER

18

202-70-61190

PIN

19

203-70-41460

SPACER¤ 1.0MM

20

203-46-56270

PLATE

21

01010-51230

BOLT

22

01643-31232

WASHER

23

202-70-11410

TUBE

24

07214-60610

CONNECTOR

25

07020-00000

FITTING,GREASE

26

205-06-K1223

WORK LAMP ASS'Y

|26

205-06-K1220

WORK LAMP ASS'Y

|26

205-06-K1890

BULB¤ 70W

27

203-06-41130

BRACKET

28

01010-51425

BOLT

29

01643-31445

WASHER

30

203-06-57230

WIRE

31

203-06-56570

BAND

32

203-70-61331

PLATE,LIFTING
