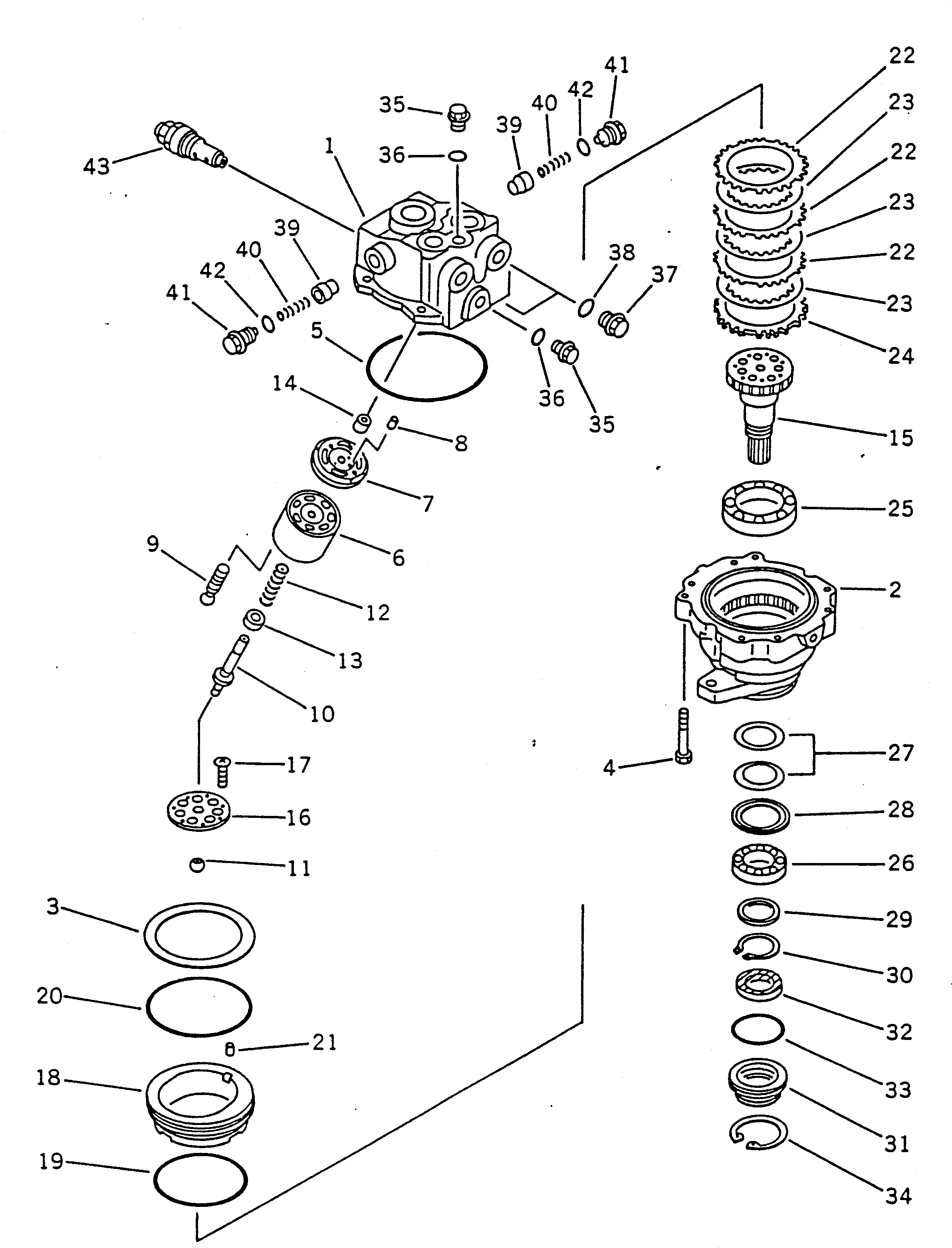

Запчасти Komatsu PC120-5S МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-73-01071

SWING MOTOR ASS'Y

1

706-73-72461

HOUSING

2

706-73-42121

CASE,BRAKE

3

706-73-92160

SPRING

4

706-74-40320

BOLT

5

195-30-33190

O-RING

6

706-73-41091

BLOCK,CYLINDER

7

706-73-42740

PLATE,VALVE

8

04020-00616

PIN,DOWEL

9

706-73-41163

PISTON ASS'Y

10

SHAFT,CENTER

11

706-73-41220

BALL,CENTER

12

706-73-41110

SPRING

13

706-73-41130

RING,CENTER

14

706-73-40010

BEARING

15

706-73-42661

SHAFT,DRIVE

16

706-73-42260

RETAINER

17

706-73-42270

SCREW

18

706-73-92180

PISTON,BRAKE

19

07000-12130

O-RING

20

07000-12145

O-RING

21

706-73-42820

PIN,DOWEL

22

706-73-92140

PLATE

23

706-75-90050

DISK

24

706-73-92130

PLATE

25

706-74-41880

BEARING

26

706-75-40890

BEARING

27

706-73-42610

SPRING

28

706-73-42620

SEAT

29

706-73-05010

SPACER KIT

|29

SPACER¤ 3.0MM

|29

SPACER¤ 3.4MM

|29

SPACER¤ 3.8MM

30

04064-04018

RING,SNAP

31

706-73-42711

COVER

32

708-8D-12210

SEAL,OIL

33

07000-02080

O-RING

34

04065-08530

RING,SNAP

35

706-77-72280

PLUG

36

07002-12034

O-RING

37

706-77-72170

PLUG

38

07002-12434

O-RING

39

706-73-72420

VALVE

40

706-73-72440

SPRING

41

706-73-72430

PLUG

42

07002-12434

O-RING

43

702-73-01200

VALVE ASS'Y,C.O.R. (SEE FIG. 6442)
