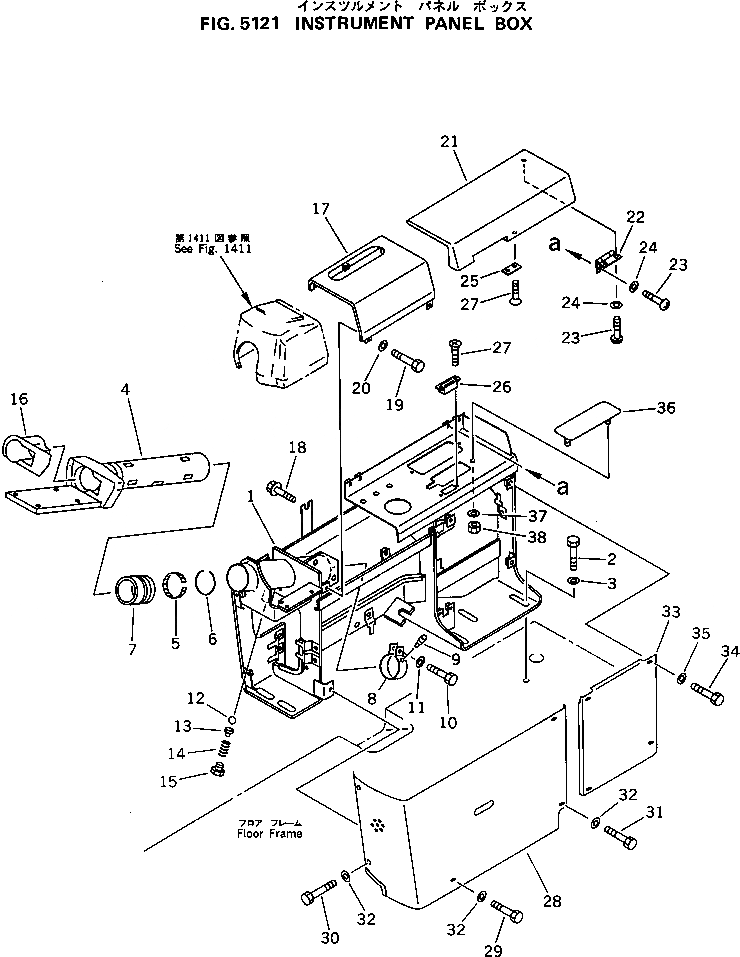

Запчасти Komatsu PC120-5Z КОРПУС ПАНЕЛИ ПРИБОРОВ ЧАСТИ КОРПУСА

1

203-43-56860

BRACKET

2

01010-51230

BOLT

3

20Y-54-12670

WASHER

4

203-06-52210

BRACKET

5

20Y-06-16160

SPRING

6

20Y-06-16550

RING¤ 1.8MM,(FOR ADJUSTING)

|6

20Y-06-16530

RING¤ 2.0MM,(FOR ADJUSTING)

|6

20Y-06-16440

RING¤ 2.3MM,(FOR ADJUSTING)

7

20Y-06-15540

BOOT

8

20Y-06-16131

BAND

9

20Y-06-16460

SCREW

10

01010-50820

BOLT

11

01643-30823

WASHER

12

04260-00793

BALL

13

20Y-06-16150

SUPPORT

14

20Y-06-16450

SPRING

15

07040-11007

PLUG

16

20Y-06-16470

GROMMET

17

20Y-43-17122

COVER

|17

20Y-43-17121

COVER

18

01435-00620

BOLT

19

01010-50620

BOLT

20

01643-30623

WASHER

21

203-54-56531

COVER

22

20Y-06-16350

HINGE

23

01220-70510

SCREW

24

01642-40508

WASHER

25

203-54-51550

PLATE

26

203-54-51540

MAGNET

27

01224-40306

SCREW

28

20Y-43-15292

COVER

29

01010-50616

BOLT

30

20Y-43-15460

BOLT

31

01010-50620

BOLT

32

01643-30623

WASHER

33

20Y-43-17130

COVER

34

01010-50620

BOLT

35

01643-30623

WASHER

36

20Y-06-17230

COVER

37

01580-10605

NUT

38

01643-30623

WASHER
