ОСНОВН. НАСОС (7/)(NO. НАСОС)

Запчасти Komatsu PC1250SP-8R ОСНОВН. НАСОС (7/)(NO. НАСОС) Y

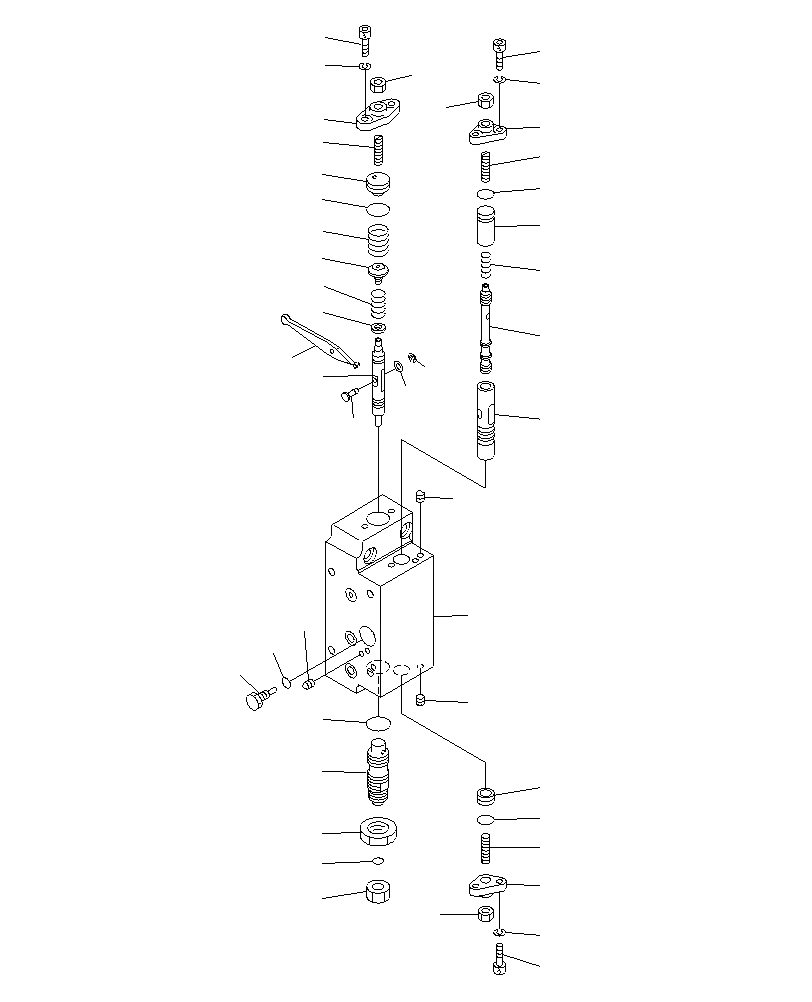

Схема запчастей Komatsu PC1250SP-8R - ОСНОВН. НАСОС (7/)(NO. НАСОС) Y
12
28
13
11
29
27
10
26
24
24
8
25
9
22
5
7
21
6
4
20
32
3
35
34
19
33
2
1
2
31
30
2
17
14
23
25
18
24
15
26
16
27
29
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

708-2L-00681

PUMP ASS'Y

|$2

708-2L-00680

PUMP ASS'Y

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$4

SHOWN IN FIGS.Y1600-01A0 TO Y1600-16A0.

|$5

708-25-85160

SERVO VALVE ASS'Y,FRONT

|$6

708-25-85360

SERVO VALVE SUB A.,FRONT

|$7

708-25-00830

BODY ASS'Y

1

BODY,FRONT

2

EXPANDER

3

708-25-15120

PISTON

4

708-25-15130

SEAT

5

708-25-25130

SPRING

6

708-25-55250

SPRING

7

708-23-15120

SEAT

8

708-23-15160

PLUG

9

07000-B2018

O-RING

10

708-25-15150

COVER

11

01580-10806

NUT

12

01252-60616

BOLT

13

01602-20619

WASHER

14

708-25-55680

PLUG

15

02896-61009

O-RING

16

02789-00315

PLUG,CAP

17

07002-62034

O-RING

18

07239-12009

NUT

19

708-25-15180

SLEEVE

20

708-25-15280

SPOOL

21

708-25-15310

SPRING

22

708-25-15330

SPACER

23

708-25-15430

PLUG

24

708-25-15340

SCREW

25

07000-B2012

O-RING

26

708-25-15250

COVER

27

01580-10806

NUT

28

01252-60616

BOLT

29

01602-20619

WASHER

30

708-25-15260

PLUG

31

07002-60823

O-RING

32

708-25-15270

ARM

33

708-25-15360

PIN

34

708-25-15370

WASHER

35

708-25-15380

O-RING
