Запчасти Komatsu PC1250SP-8R ОСНОВН. НАСОС (/)(NO. НАСОС) Y

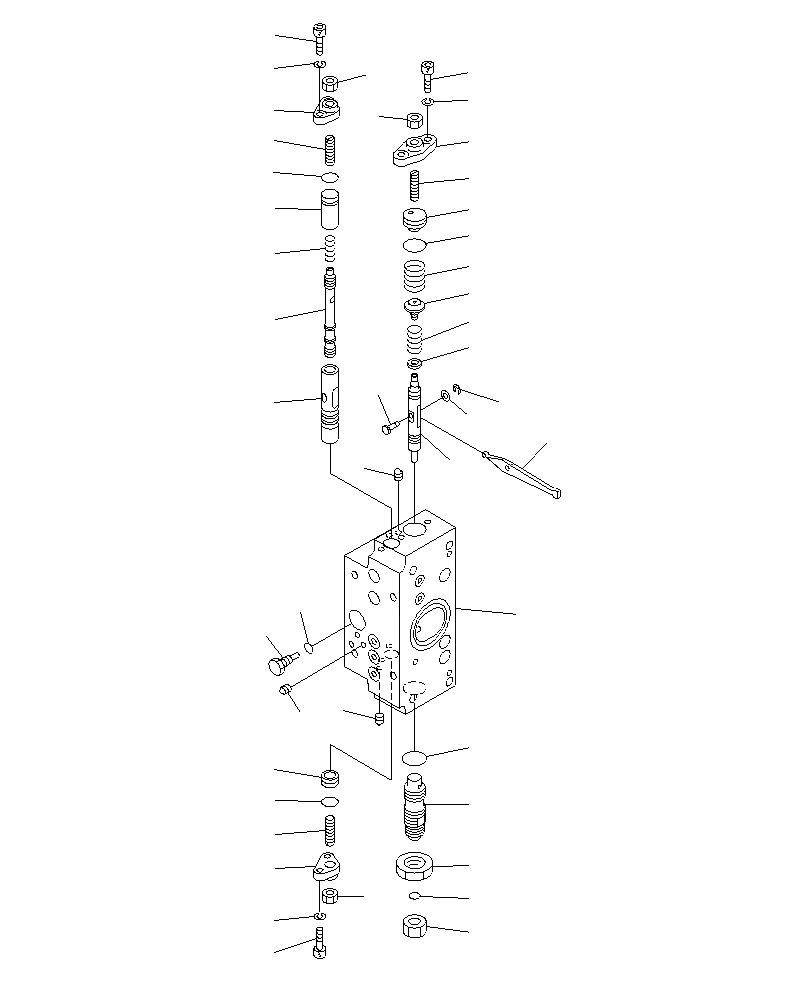

Схема запчастей Komatsu PC1250SP-8R - ОСНОВН. НАСОС (/)(NO. НАСОС) Y
28
27
29
12
13
26
11
24
10
25
24
7
22
9
21
6
8
5
20
4
33
19
35
34
32
2
3
31
1
30
2
2
17
23
25
14
24
18
26
27
15
29
16
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

708-2L-00681

PUMP ASS'Y

|$2

708-2L-00680

PUMP ASS'Y

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$4

SHOWN IN FIGS.Y1600-01A0 TO Y1600-16A0.

|$5

708-25-85260

SERVO VALVE ASS'Y,REAR

|$6

708-25-85460

SERVO VALVE SUB A.,REAR

|$7

708-25-00840

BODY ASS'Y

1

BODY

2

EXPANDER

3

708-25-15120

PISTON

4

708-25-15130

SEAT

5

708-25-55250

SPRING

6

708-25-25130

SPRING

7

708-23-15160

PLUG

8

708-23-15120

SEAT

9

07000-B2018

O-RING

10

708-25-15150

COVER

11

01580-10806

NUT

12

01252-60616

BOLT

13

01602-20619

WASHER

14

708-25-55680

PLUG

15

02896-61009

O-RING

16

02789-00315

PLUG,CAP

17

07002-62034

O-RING

18

07239-12009

NUT

19

708-25-15180

SLEEVE

20

708-25-15280

SPOOL

21

708-25-15310

SPRING

22

708-25-15330

SPACER

23

708-25-15430

PLUG

24

708-25-15340

SCREW

25

07000-B2012

O-RING

26

708-25-15250

COVER

27

01580-10806

NUT

28

01252-60616

BOLT

29

01602-20619

WASHER

30

708-25-15260

PLUG

31

07002-60823

O-RING

32

708-25-15270

ARM

33

708-25-15360

PIN

34

708-25-15370

WASHER

35

708-25-15380

O-RING
