Запчасти Komatsu PC1250SP-8R ОСНОВН. НАСОС (/)(NO. НАСОС) Y

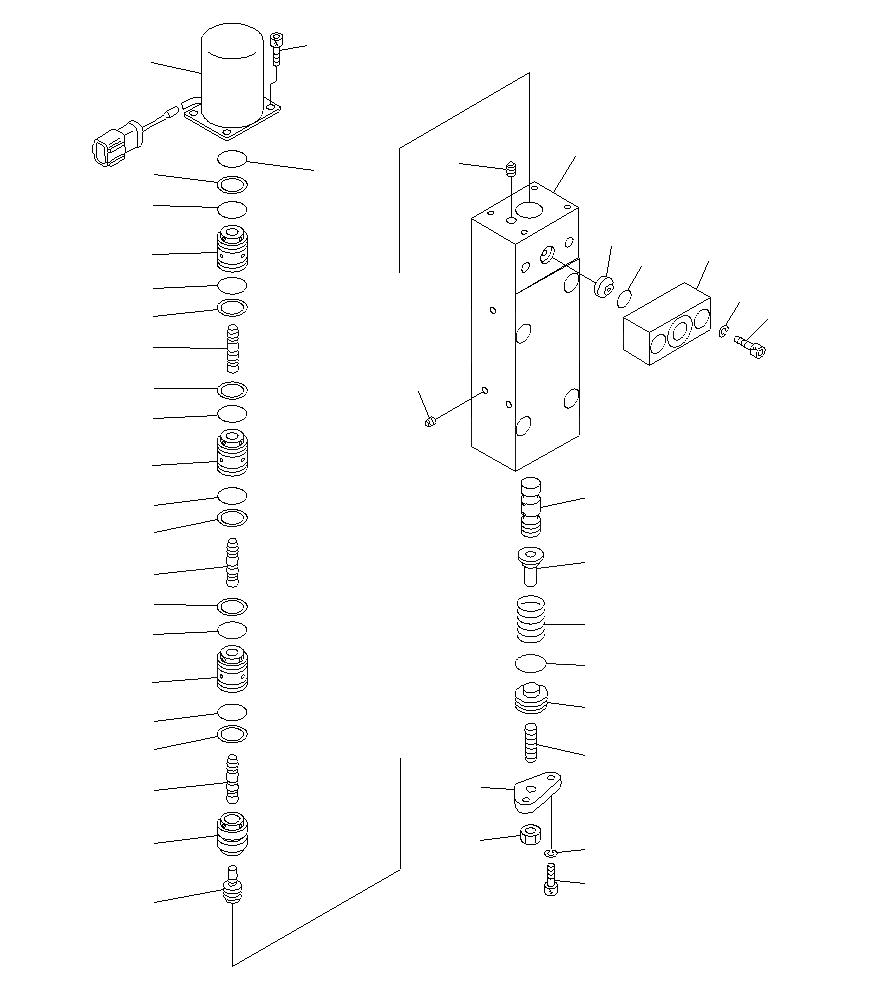

Схема запчастей Komatsu PC1250SP-8R - ОСНОВН. НАСОС (/)(NO. НАСОС) Y
20
18
1
2
19
9
8
23
25
24
7
27
8
26
9
6
3
9
8
7
10
8
9
11
6
9
12
8
15
7
13
8
9
14
16
6
17
5
22
21
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

708-2L-00681

PUMP ASS'Y

|$2

708-2L-00680

PUMP ASS'Y

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$4

SHOWN IN FIGS.Y1600-01A0 TO Y1600-16A0.

|$5

708-25-85260

SERVO VALVE ASS'Y, REAR

|$6

708-25-85760

VALVE ASS'Y,TVC

|$7

708-25-00850

BODY ASS'Y

1

BODY

2

PLUG

3

EXPANDER

4

708-23-18120

PISTON

5

708-23-18130

SLEEVE

6

708-27-18240

PISTON

7

708-27-18250

SLEEVE

8

07000-B2016

O-RING

9

07001-02016

RING,BACK-UP

10

708-23-18161

SPOOL

11

708-23-18170

SEAT

12

708-23-18181

SPRING

13

708-23-15160

PLUG

14

708-25-15340

SCREW

15

07000-B2018

O-RING

16

708-23-18210

COVER

17

01580-10806

NUT

18

708-2L-25190

SOLENOID ASS'Y

19

07000-B2016

O-RING

20

708-23-18250

BOLT

21

01252-60616

BOLT

22

01602-20619

WASHER

23

708-2L-25480

FILTER

24

708-2L-25490

O-RING

25

708-25-58310

FLANGE

26

01252-60830

BOLT

27

01602-20825

WASHER
