Запчасти Komatsu PC1250SP-8R ОСНОВН. НАСОС (/)(NO. НАСОС) Y

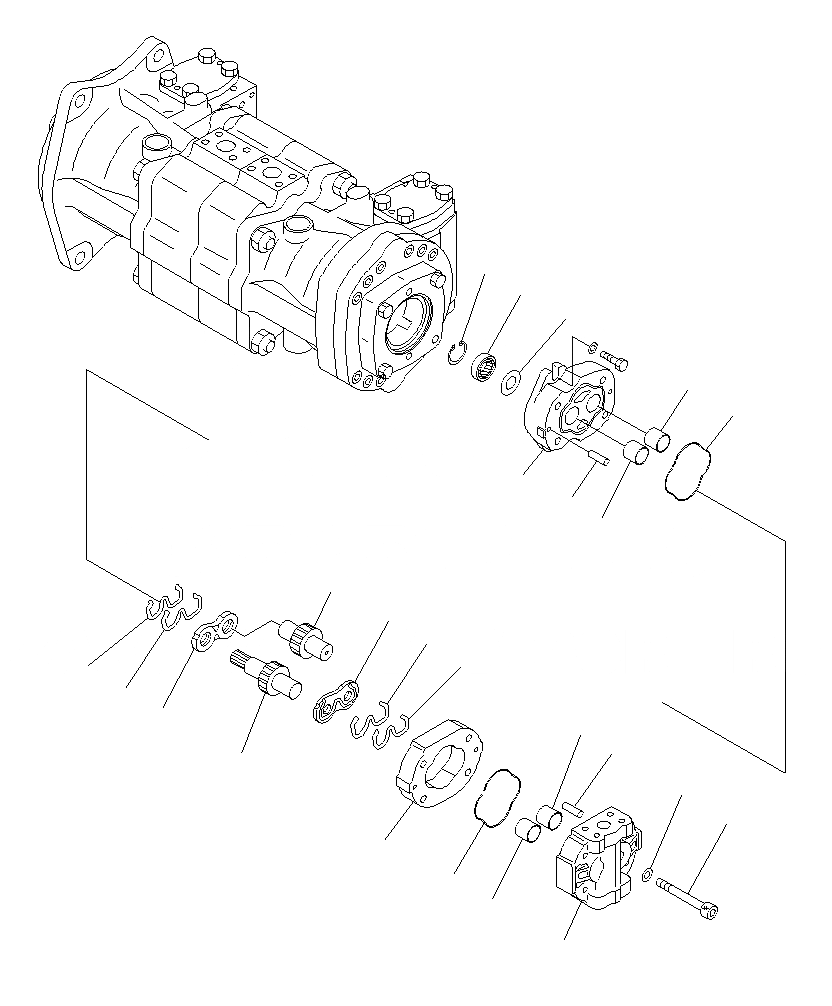

Схема запчастей Komatsu PC1250SP-8R - ОСНОВН. НАСОС (/)(NO. НАСОС) Y
17
15
16
2
11
1
12
2
7
8
9
10
10
9
5
8
12
6
14
13
3
11
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

708-2L-00691

PUMP ASS'Y

|$2

708-2L-00690

PUMP ASS'Y

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$4

SHOWN IN FIGS.Y1600-21A0 TO Y1600-31A0.

|$5

705-11-20050

PUMP ASS'Y

1

705-17-01010

BRACKET ASSY

2

705-17-01350

BEARING,PLANE

3

705-17-20011

CASE, GEAR

4

705-17-01120

COVER ASS'Y

5

705-17-01350

BEARING, PLANE

6

705-17-20411

GEAR,DRIVE

7

705-17-20511

GEAR, DRIVE

8

705-17-01610

PLATE

9

705-67-01470

SEAL, RING

10

705-67-01440

RING, BACK UP

11

705-67-01380

O-RING

12

04020-00820

PIN,DOWEL

13

01252-61275

BOLT

14

01643-31232

WASHER

15

07430-71360

SEAL,OIL

16

705-17-01870

PLATE

17

04065-03515

RING,SNAP
