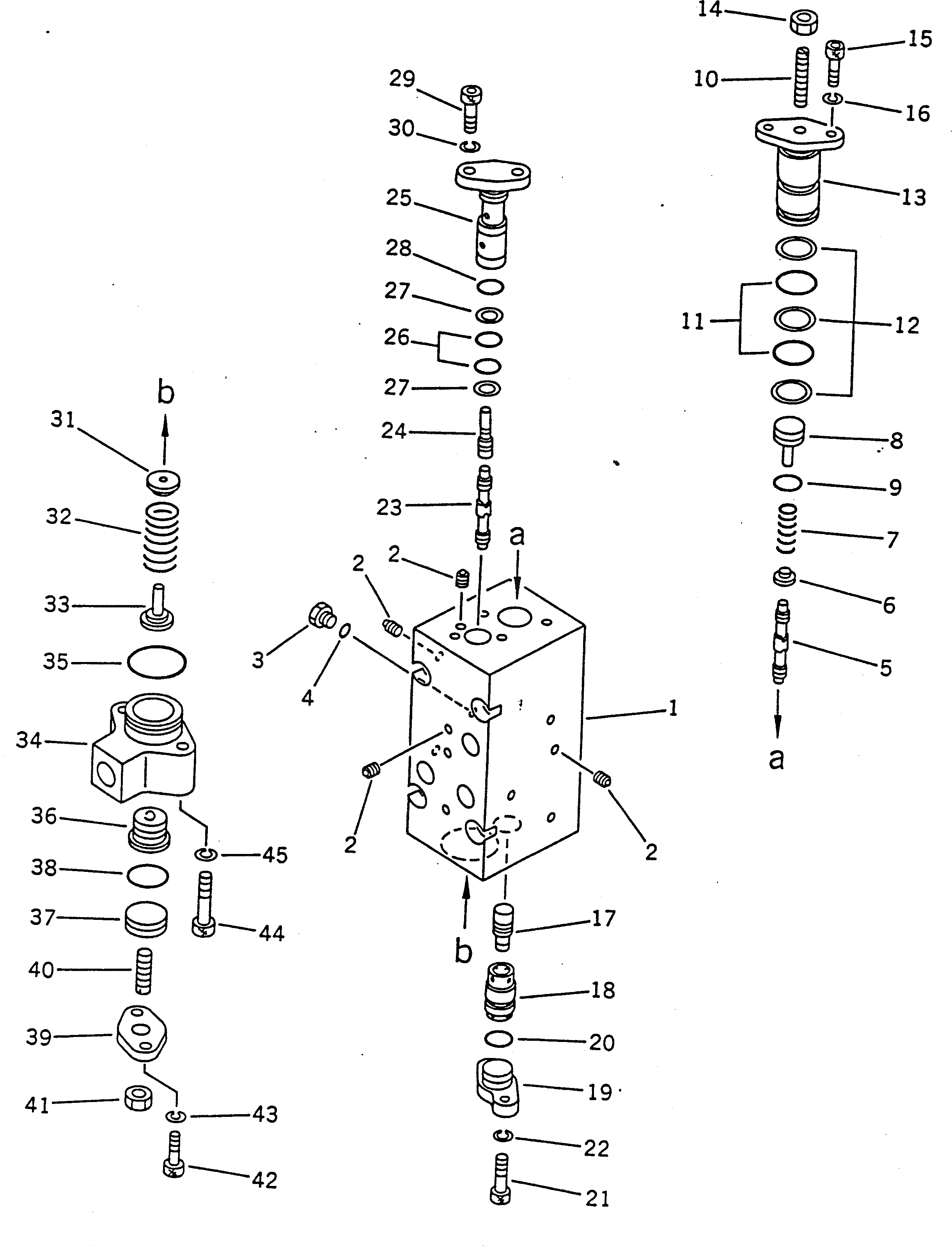

Запчасти Komatsu PC130-5 ГИДР. НАСОС. (C.O. И N.C. КЛАПАН В СБОРЕ¤ ЗАДН.) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-23-04014

PUMP ASS'Y,HYDRAULIC (HPV55+55)

|$1

708-23-04612

VALVE ASS'Y,SERVO, REAR

|$2

708-23-04811

VALVE ASS'Y,C.O. AND N.C.

|$3

708-23-00430

BODY ASS'Y

1

BODY

2

EXPANDER

3

07040-11007

PLUG

4

07002-01023

O-RING

5

708-25-17141

SPOOL

6

708-25-17180

SEAT

7

708-25-17690

SPRING

8

708-25-17460

PLUG

9

07000-02010

O-RING

10

708-25-17430

SCREW

11

07000-12021

O-RING

12

07001-02021

RING,BACK-UP

13

708-25-17131

COVER

14

01580-10806

NUT

15

708-25-15320

BOLT

16

01602-20619

WASHER,SPRING

17

708-25-17160

PISTON

18

708-25-17150

SLEEVE

19

708-25-17170

COVER

20

07000-02014

O-RING

21

708-25-15320

BOLT

22

01602-20619

WASHER,SPRING

23

708-25-17141

SPOOL

24

708-25-17220

PISTON

25

708-25-17451

SLEEVE

26

07000-12012

O-RING

27

07001-02012

RING,BACK-UP

28

07000-02012

O-RING

29

708-25-15320

BOLT

30

01602-20619

WASHER,SPRING

31

708-25-17370

SEAT

32

708-25-17250

SPRING

33

708-25-17260

SEAT

34

708-23-17290

COVER

35

07000-03028

O-RING

36

708-23-17270

PISTON

37

708-25-17380

PLUG

38

07000-02021

O-RING

39

708-23-17240

COVER

40

708-25-15340

SCREW

41

01580-10806

NUT

42

708-25-15320

BOLT

43

01602-20619

WASHER,SPRING

44

706-75-40310

BOLT

45

01602-20619

WASHER,SPRING
