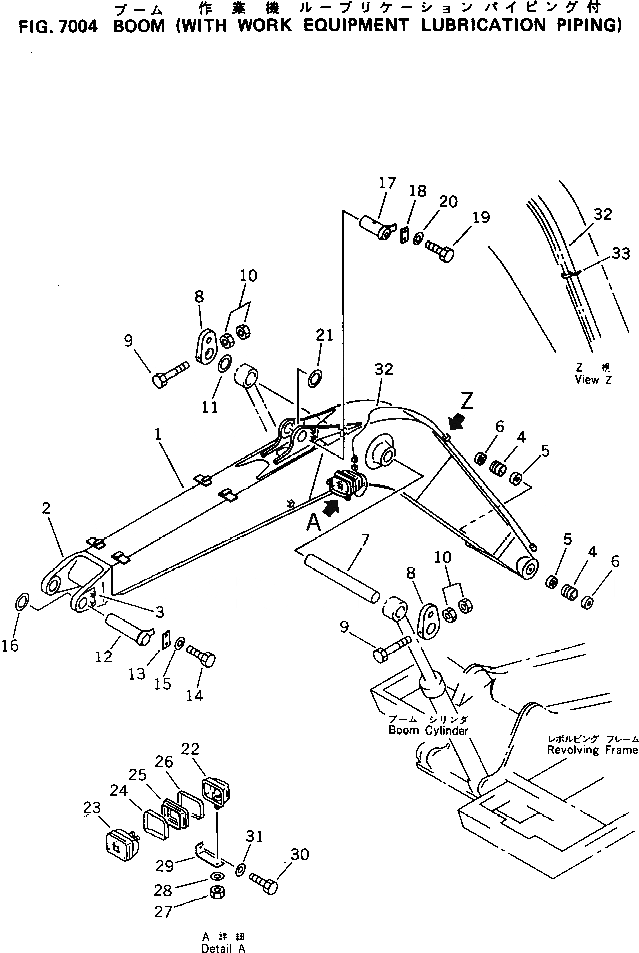

Запчасти Komatsu PC130-5 СТРЕЛА (С ЛИНИЯ СМАЗКИ РАБОЧ. ОБОРУД-Я) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

203-70-00621

BOOM ASS'Y

|1

203-973-0030

BOOM ASS'Y,(FOR ATTACHMENT)

1

BOOM

|1

BOOM,(FOR ATTACHMENT)

2

202-70-61322

BRACKET (WELDED)

3

203-46-41130

SEAT (WELDED)

4

203-70-56121

BUSHING

5

07145-00070

SEAL,DUST

6

07145-00070

SEAL,DUST

7

202-70-61180

PIN

8

203-70-51150

PLATE

9

01019-11680

BOLT

10

01580-11613

NUT

11

203-70-41460

SPACER¤ 1.0MM

12

202-70-61210

PIN

13

203-46-56270

PLATE

14

01010-51230

BOLT

15

01643-31232

WASHER

16

203-70-34270

SPACER¤ 0.5MM

|16

203-70-11210

SPACER¤ 1.0MM

17

202-70-61190

PIN

18

203-46-56270

PLATE

19

01010-51230

BOLT

20

01643-31232

WASHER

21

203-70-41460

SPACER¤ 1.0MM

|21

203-06-56140

LAMP ASS'Y,WORK

22

HOUSING

23

22W-06-12170

BULB

24

203-06-56180

RING

25

22W-06-12290

CUSHION

26

203-06-56190

RING

27

01582-11411

NUT

28

01643-31445

WASHER

29

203-06-56410

BRACKET

30

01010-51430

BOLT

31

01643-31445

WASHER

32

203-06-57230

WIRE

33

203-06-56570

BAND
