ОСНОВН. НАСОС (/8)

Запчасти Komatsu PC130F-7 ОСНОВН. НАСОС (/8) Y

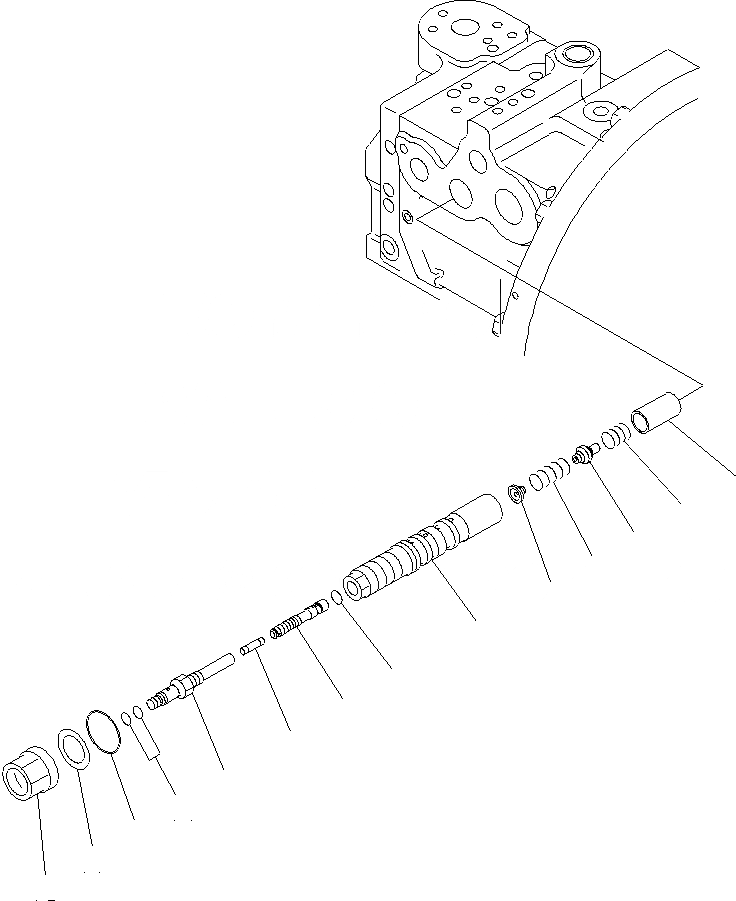

Схема запчастей Komatsu PC130F-7 - ОСНОВН. НАСОС (/8) Y
8
7
6
5
4
1
10
3
2
9
14
13
11
12
8
7
6
5
4
1
10
3
2
9
14
13
11
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

708-1L-00651

PUMP ASSY

|$2

708-1L-00650

PUMP ASS'Y

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$4

SHOWN IN FIGS.Y1600-01A0 T0 Y1600-08A0.

|$5

708-1L-04615

VALVE ASS'Y,PC

1

SLEEVE

2

PIN

3

SPOOL

4

SEAT

5

SPRING

6

SEAT

7

SPRING

8

PISTON

9

PLUG

10

O-RING

11

WASHER

12

NUT

13

07002-63034

O-RING

14

07000-B1009

O-RING

|$1

708-1L-00651

PUMP ASSY

|$2

708-1L-00650

PUMP ASS'Y

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$4

SHOWN IN FIGS.Y1600-01A0 T0 Y1600-08A0.

|$5

708-1L-04615

VALVE ASS'Y,PC

1

SLEEVE

2

PIN

3

SPOOL

4

SEAT

5

SPRING

6

SEAT

7

SPRING

8

PISTON

9

PLUG

10

O-RING

11

WASHER

12

NUT

13

07002-63034

O-RING

14

07000-B1009

O-RING
