ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ ОТВАЛ И KUK OFFSET СТРЕЛА СПЕЦ-Я.)(№-)

Запчасти Komatsu PC138US-8 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ ОТВАЛ И KUK OFFSET СТРЕЛА СПЕЦ-Я.)(№-) ГИДРАВЛИКА

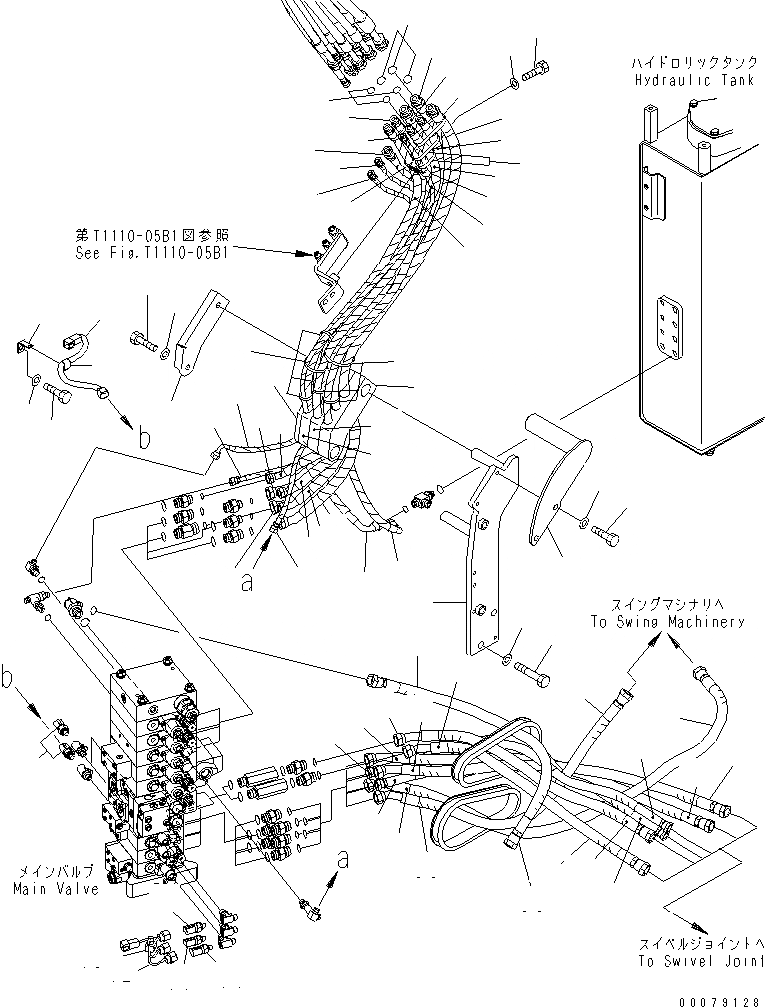

Схема запчастей Komatsu PC138US-8 - ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ ОТВАЛ И KUK OFFSET СТРЕЛА СПЕЦ-Я.)(№-) ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
27
28
29
30
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
43
44
44
44
44
45
45
46
47
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

21Y-62-31411

HOSE, 1920MM

1

21U-62-34740

BAND, ORANGE

2

21Y-62-31421

HOSE, 1890MM

2

21U-62-34730

BAND, GREEN

3

21Y-62-31431

HOSE, 1840MM

3

21U-62-34760

BAND, RED

4

21Y-62-31441

HOSE, 1840MM

4

21U-62-34750

BAND, BLUE

5

21Y-62-31451

HOSE, 1780MM,GREEN-PINK

5

21U-62-34730

BAND, GREEN

6

21Y-62-31451

HOSE, 1780MM,WHITE-PINK

6

21U-62-34770

BAND, WHITE

7

02896-11015

O-RING

8

02896-11012

O-RING

9

21Y-62-31630

BRACKET

10

01010-81655

BOLT

11

01643-31645

WASHER

12

08034-20834

BAND

13

21Y-62-31521

CUSHION

14

21Y-62-31531

CUSHION

15

21Y-62-31542

CUSHION

16

21Y-62-31552

CUSHION

17

01010-81235

BOLT

18

01643-31232

WASHER

19

22B-62-21321

PLATE

20

21Y-62-31641

GUARD

21

01010-D1230

BOLT

22

01643-71232

WASHER

23

21Y-62-31612

HOSE, 2050MM,BLUE

24

21Y-62-31622

HOSE, 2020MM,GREEN

24

21U-62-34730

BAND, GREEN

25

21Y-62-31472

HOSE, 1680MM,GREEN-PINK

25

21U-62-34730

BAND, GREEN

26

21Y-62-31482

HOSE, 1670MM,WHITE-PINK

26

21U-62-34770

BAND, WHITE

27

21Y-62-31392

HOSE, 1770MM

28

04434-52112

CLIP

29

04434-51412

CLIP

30

01010-81220

BOLT

31

01643-31232

WASHER

32

08034-20834

BAND

33

22B-62-23971

HOSE, 870MM

33

21U-62-34720

BAND, BLACK

34

22B-62-23361

HOSE, 1310MM

34

21U-62-34780

BAND, BROWN

35

22B-62-23351

HOSE, 860MM

35

21U-62-34770

BAND, WHITE

36

22B-62-23331

HOSE, 950MM

36

21U-62-34740

BAND, ORANGE

36

21U-62-34710

BAND, YELLOW

37

22B-62-23331

HOSE, 950MM

37

21U-62-34780

BAND, BROWN

37

21U-62-34710

BAND, YELLOW

38

22B-62-23411

HOSE, 790MM

38

21U-62-34720

BAND, BLACK

38

21U-62-34750

BAND, BLUE

39

22B-62-23341

HOSE, 810MM

39

21U-62-34730

BAND, GREEN

39

21U-62-34750

BAND, BLUE

40

22B-62-22940

HOSE, 950MM

40

21U-62-34750

BAND, BLUE

40

21U-62-34710

BAND, YELLOW

41

22B-62-22940

HOSE, 950MM

41

21U-62-34760

BAND, RED

41

21U-62-34720

BAND, BLACK

42

22B-06-21490

WIRING HARNESS

43

22B-06-21560

WIRING HARNESS

44

7861-93-1840

SENSOR

45

08211-00720

CLIP

46

08057-14012

CLIP

47

01010-81025

BOLT

48

01643-31032

WASHER

Выбрано товаров: 72
