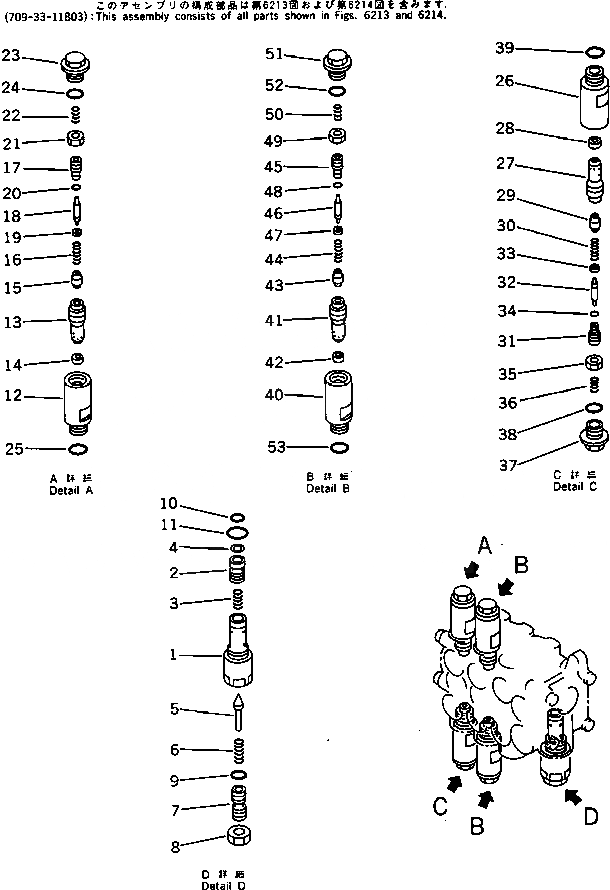

Запчасти Komatsu PC15-2 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) (ДЛЯ НАКЛОН. ОТВАЛ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-33-11803

VALVE ASS'Y

|1

700-22-51001

.VALVE ASS'Y,MAIN RELIEF

1

..SLEEVE

2

..VALVE

3

700-20-51430

..SPRING

4

700-20-51240

..RING

5

700-80-61190

..POPPET

6

700-20-51350

..SPRING

7

700-20-51340

..SCREW

8

01583-11408

..NUT

9

07000-02011

..O-RING

10

700-22-11410

..O-RING

11

07002-02434

..O-RING

|12

709-30-62201

.VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

..SLEEVE

13

..VALVE

14

..SEAL

15

..POPPET

16

..SPRING

17

..SCREW

18

..PISTON

19

..SEAL

20

..O-RING

21

..NUT

22

700-20-62170

..SPRING

23

709-30-62150

..PLUG

24

07002-12034

..O-RING

25

07002-02034

..O-RING

|26

709-30-62701

.VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

..SLEEVE

27

..VALVE

28

700-20-71260

..SEAL

29

709-30-62221

..POPPET

30

709-30-62170

..SPRING

31

709-30-62350

..SCREW

32

709-30-62340

..PISTON

33

709-30-62210

..SEAL

34

07000-11007

..O-RING

35

700-20-71250

..NUT

36

700-20-62170

..SPRING

37

709-30-62150

..PLUG

38

07002-12034

..O-RING

39

07002-02034

..O-RING

|40

709-30-62601

VALVE ASS'Y,SUCTION AND SAFETY

40

709-30-62110

..SLEEVE

41

..VALVE

42

700-20-71260

..SEAL

43

709-30-62221

..POPPET

44

709-30-62170

..SPRING

45

709-30-62350

..SCREW

46

709-30-62340

..PISTON

47

709-30-62210

..SEAL

48

07000-11007

..O-RING

49

700-20-71250

..NUT

50

700-20-62170

..SPRING

51

709-30-62150

..PLUG

52

07002-12034

..O-RING

53

07002-02034

..O-RING
