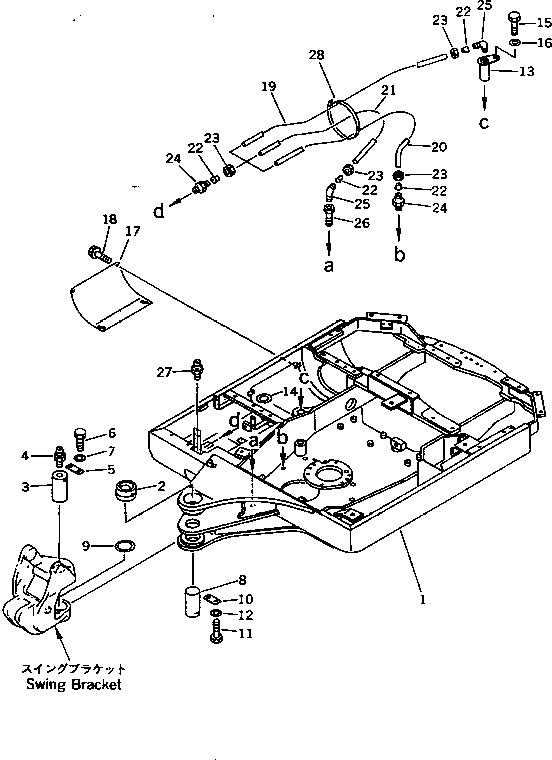

Запчасти Komatsu PC15-3 ОСНОВНАЯ РАМА(№-) ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

1

20P-46-71117

FRAME,REVOLVING

|1

20P-46-71855

FRAME,REVOLVING (FOR ATTACHMENT)

2

20P-70-71465

BUSHING

3

20P-70-71450

PIN

4

07020-00000

FITTING,GREASE

5

04082-00514

LOCK

6

01010-51440

BOLT

7

01643-31445

WASHER

8

20N-70-71451

PIN

9

20N-70-71621

SPACER¤ 1.0MM

10

04082-00514

LOCK

11

01010-51440

BOLT

12

01643-31445

WASHER

13

20N-70-71461

PIN

14

20R-70-11260

SPACER¤ 1.0MM

15

01010-51230

BOLT

16

01643-31232

WASHER

17

20P-46-71160

COVER

18

01435-00612

BOLT

19

20P-46-71331

TUBE

20

20P-46-71340

TUBE

21

20P-46-71350

TUBE

22

07831-00411

SLEEVE

23

07832-00410

NUT

24

20R-46-11160

CONNECTOR

25

20R-46-11150

ELBOW

26

20P-46-71320

ADAPTER

27

07020-00000

FITTING,GREASE

28

08034-00536

BAND
