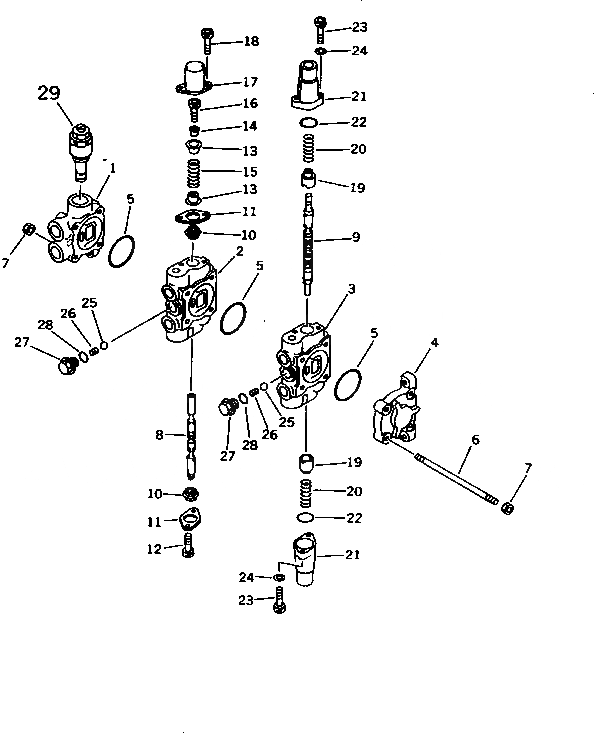

Запчасти Komatsu PC15-3 ГИДРАВЛ КОНТРОЛЬНЫЙ КЛАПАН (2-Х СЕЦИОНН.)(/)(№-) ГИДРАВЛИКА

|$0

709-32-14401

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

COVER

5

07000-12055

O-RING

6

709-32-11510

STUD

7

01580-10806

NUT

8

SPOOL,BLADE

9

SPOOL,BOOM SWING

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

01252-30610

BOLT

13

709-32-11550

RETAINER

14

709-32-11560

COLLAR

15

709-32-11590

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

01252-30616

BOLT

19

709-32-12840

RETAINER

20

709-32-13510

SPRING

21

709-32-12851

CASE

22

709-32-11760

O-RING

23

01252-30622

BOLT

24

01641-20608

WASHER

25

04260-01270

BALL

26

709-32-11820

SPRING

27

709-32-11810

PLUG

28

07002-11823

O-RING

29

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF
