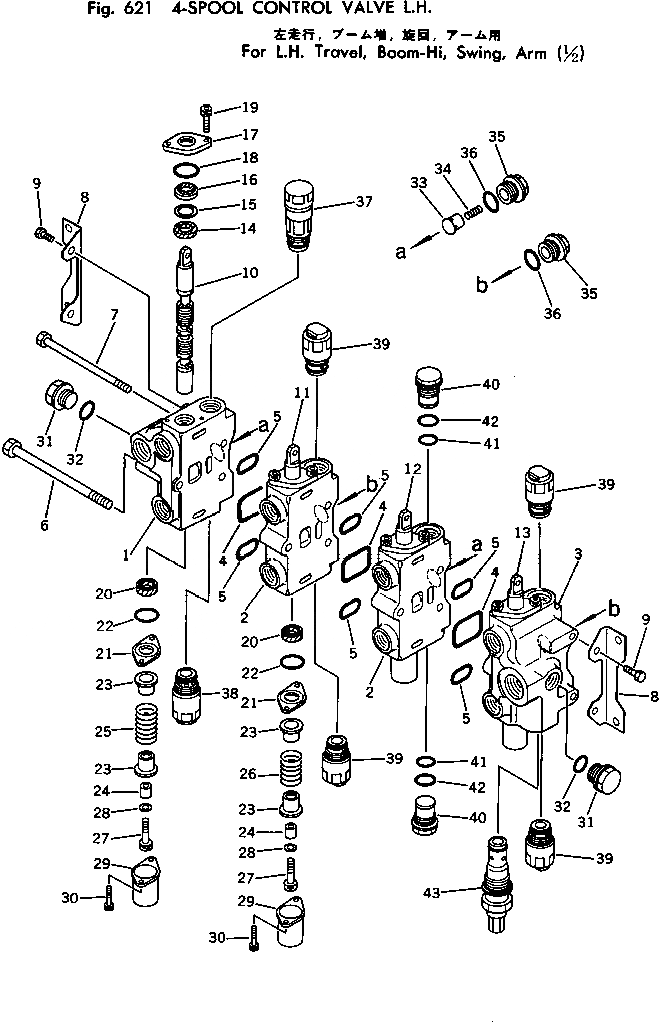

Запчасти Komatsu PC150-1 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ.(/) (ДЛЯ ЛЕВ.ХОД¤СТРЕЛА-HI¤ПОВОРОТН.¤ РУКОЯТЬ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-84-48001

VALVE ASS'Y

1

COVER

2

BLOCK

3

BODY

4

07000-13050

O-RING

5

07000-03030

O-RING

6

700-84-11182

BOLT

7

700-84-11172

BOLT

8

700-84-11330

BRACKET

9

01020-01020

BOLT

10

SPOOL,ARM

11

SPOOL,SWING

12

SPOOL,BOOM HIGH

13

SPOOL,TRAVEL, L.H.

14

700-84-11232

U-PACKING

15

700-84-11290

COLLAR

16

700-84-11820

SEAL,DUST

17

700-84-11310

PLATE

18

700-84-11240

O-RING

19

01252-30620

BOLT

20

700-84-11232

U-PACKING

21

700-84-11620

PLATE

22

700-84-11240

O-RING

23

700-84-11630

RETAINER

24

700-84-11640

COLLAR

25

700-84-11650

SPRING

26

700-84-11850

SPRING

27

01252-30830

BOLT

28

01643-30823

WASHER

29

700-84-11390

COVER

30

01252-30625

BOLT

31

700-22-11370

PLUG

32

07002-12434

O-RING

33

700-42-31460

VALVE

34

700-42-31470

SPRING

35

700-84-11320

PLUG

36

07002-13034

O-RING

37

700-80-83001

VALVE ASS'Y,SUCTION AND SAFETY, ARM

38

700-80-91000

VALVE ASS'Y,SAFETY, ARM

39

700-80-96000

VALVE ASS'Y,SUCTION, L.H. TRAVEL, SWING

40

700-84-11340

PLUG

41

700-80-61260

O-RING

42

07002-03034

O-RING

43

700-84-59000

RELIEF VALVE ASS'Y
