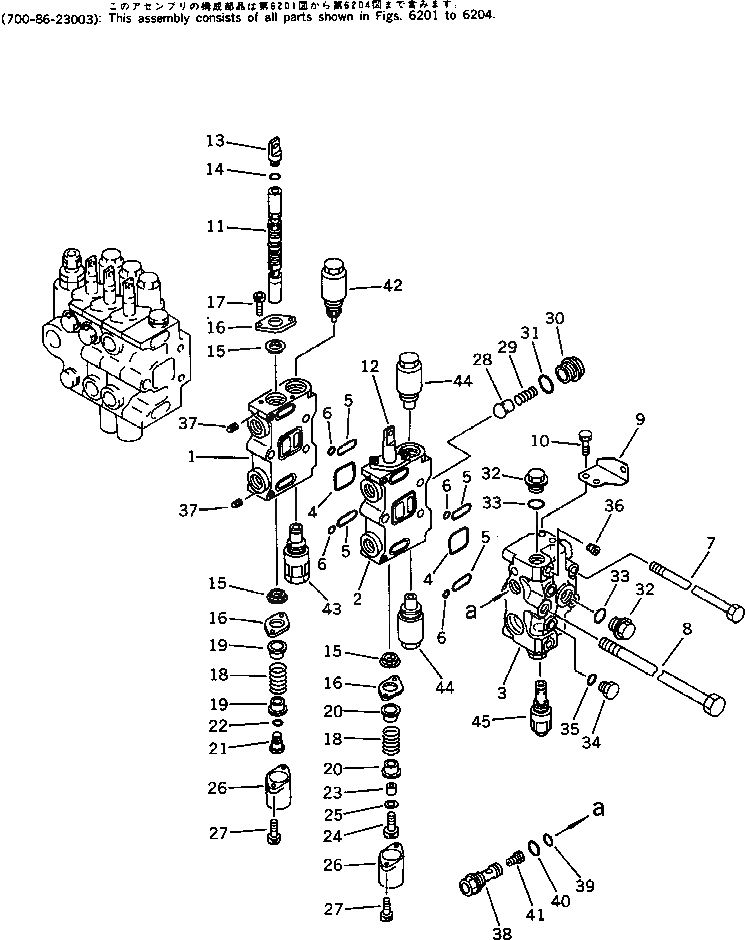

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-27006

CONTROL VALVE ASS'Y,L.H.

|$1

700-86-27005

CONTROL VALVE ASS'Y,L.H.

|$2

700-86-27004

CONTROL VALVE ASS'Y,L.H.

|$3

700-86-27003

CONTROL VALVE ASS'Y,L.H.

|$4

700-86-27002

CONTROL VALVE ASS'Y,L.H.

|$5

700-86-27001

CONTROL VALVE ASS'Y,L.H.

|$6

700-86-27000

CONTROL VALVE ASS'Y,L.H.

1

BLOCK,VALVE

1

BLOCK,VALVE

2

BLOCK,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

3

COVER,VALVE

4

07000-13050

O-RING

5

07000-03038

O-RING

5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-87-11110

BOLT

8

700-87-11120

BOLT

9

700-84-13830

BRACKET

10

01010-51020

BOLT

11

SPOOL,ARM LOW

12

SPOOL,L.H. TRAVEL

13

700-84-11870

JOINT

14

07002-11223

O-RING

15

700-84-13910

SEAL

16

700-84-13891

PLATE

17

01252-30612

BOLT

18

700-84-11650

SPRING

19

700-84-13721

RETAINER

20

700-84-13711

RETAINER

21

700-84-11881

PLUG

22

07002-11223

O-RING

23

700-84-11641

COLLAR

24

01252-30830

BOLT

25

01643-30823

WASHER

26

700-84-11390

COVER

27

01252-30625

BOLT

28

700-42-31460

VALVE

29

700-42-31470

SPRING

30

700-84-11320

PLUG

31

07002-13034

O-RING

32

700-22-11370

PLUG

33

07002-12434

O-RING

34

07040-11409

PLUG

35

07002-01423

O-RING

36

07043-70108

PLUG

37

706-86-51170

PLUG

|$49

709-70-91300

ORIFICE ASS'Y

38

700-93-12660

ORIFICE

39

709-70-91210

SENSOR

40

07000-02014

O-RING

41

07002-02434

O-RING

42

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

42

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

43

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

43

709-70-62100

VALVE ASS'Y

44

700-81-81000

VALVE ASS'Y,SUCTION

45

709-70-55103

RELIEF VALVE ASS'Y

45

709-70-55102

RELIEF VALVE ASS'Y

45

709-70-55101

RELIEF VALVE ASS'Y

45

709-70-55100

RELIEF VALVE ASS'Y
