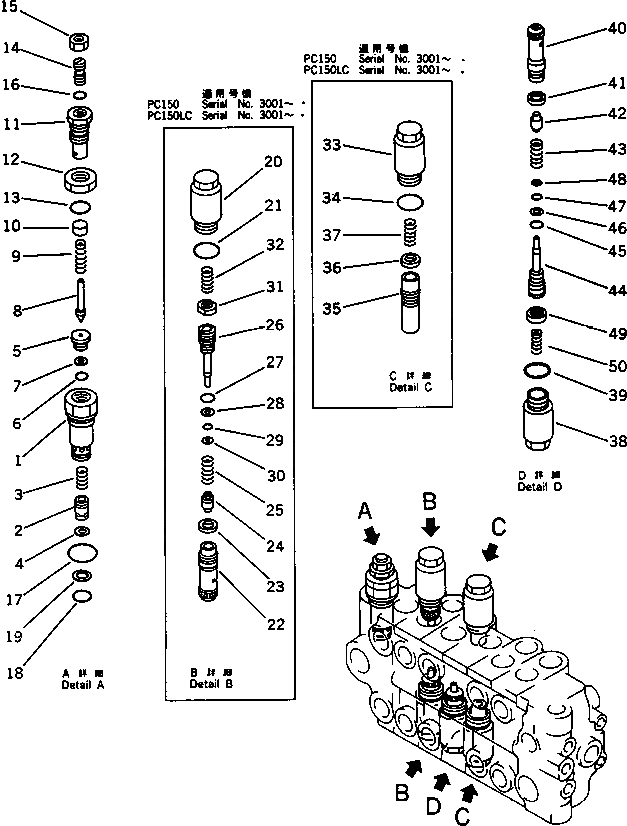

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№9-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-27006

CONTROL VALVE ASS'Y,L.H.

|$1

700-86-27005

CONTROL VALVE ASS'Y,L.H.

|$2

700-86-27004

CONTROL VALVE ASS'Y,L.H.

|$3

700-86-27003

CONTROL VALVE ASS'Y,L.H.

|$4

700-86-27002

CONTROL VALVE ASS'Y,L.H.

|$5

700-86-27001

CONTROL VALVE ASS'Y,L.H.

|$7

700-87-56000

VALVE ASS'Y,RELIEF

1

SLEEVE

2

VALVE

3

700-80-51390

SPRING

4

700-80-51350

RING,SNAP

5

700-80-51740

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

700-80-61190

POPPET

9

709-20-51231

SPRING

10

709-90-51260

RETAINER

11

700-80-51360

HOLDER

12

07239-12410

NUT

13

07002-02434

O-RING

14

700-80-51630

SCREW

15

01582-11411

NUT

16

07000-02011

O-RING

17

07002-03334

O-RING

18

700-13-31161

O-RING

19

700-80-51190

RING,BACK-UP

|$27

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

|$28

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

20

700-80-62310

SLEEVE

21

07002-03034

O-RING

22

VALVE

23

SEAL

24

POPPET

25

SPRING

26

PISTON

27

O-RING

28

RING,BACK-UP

29

O-RING

30

SEAL

31

NUT

31

NUT

32

700-80-62250

SPRING

|$43

700-81-81000

VALVE ASS'Y,SUCTION

33

SLEEVE

34

07002-03034

O-RING

35

VALVE

36

SEAL

37

700-80-62250

SPRING

|$49

700-81-66001

VALVE ASS'Y,SUCTION AND SAFETY

|$50

700-81-66000

VALVE ASS'Y,SUCTION AND SAFETY

38

700-80-62310

SLEEVE

39

07002-03034

O-RING

40

VALVE

41

SEAL

42

POPPET

43

SPRING

44

PISTON

45

O-RING

46

RING,BACK-UP

47

O-RING

48

SEAL

49

NUT

49

NUT

50

SPRING
