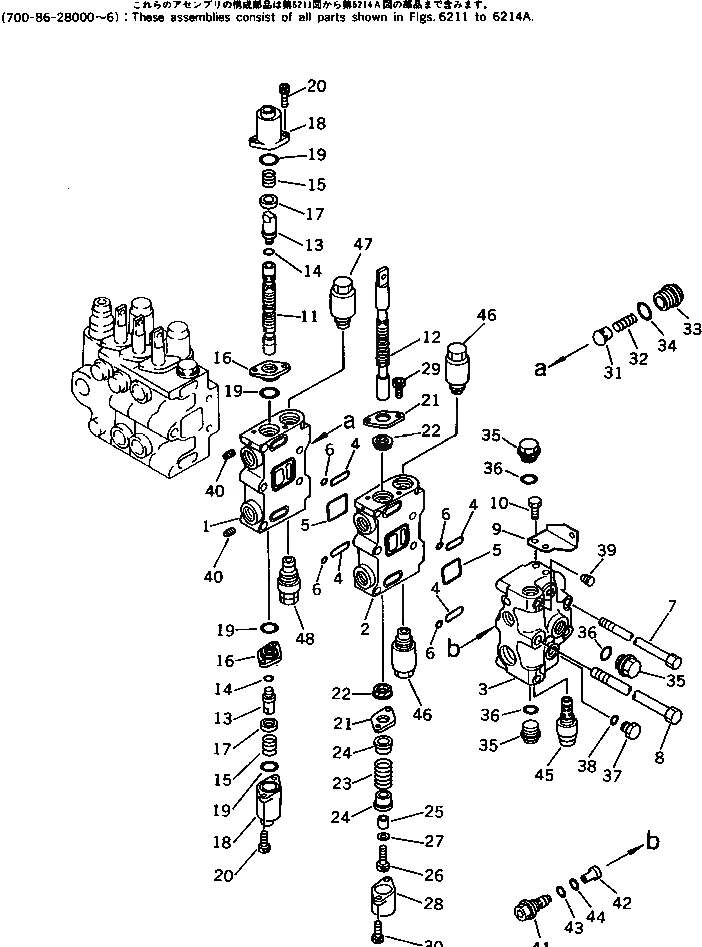

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-28006

CONTROL VALVE ASS'Y,L.H.

|$1

700-86-28005

CONTROL VALVE ASS'Y,L.H.

|$2

700-86-28004

CONTROL VALVE ASS'Y,L.H.

|$3

700-86-28003

CONTROL VALVE ASS'Y,L.H.

|$4

700-86-28002

CONTROL VALVE ASS'Y,L.H.

|$5

700-86-28001

CONTROL VALVE ASS'Y,L.H.

|$6

700-86-28000

CONTROL VALVE ASS'Y,L.H.

1

BLOCK,VALVE

1

BLOCK,VALVE

2

BLOCK,VALVE

2

BLOCK,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

3

COVER,VALVE

4

07000-03038

O-RING

4

07000-03030

O-RING

5

07000-13050

O-RING

6

07000-01007

O-RING

7

700-87-11110

BOLT

8

700-87-11120

BOLT

9

700-84-13830

BRACKET

10

01010-51020

BOLT

11

SPOOL,ARM LOW

12

SPOOL,L.H. TRAVEL

13

700-84-13790

JOINT

14

07002-11223

O-RING

15

700-84-13770

SPRING

16

700-84-13490

PLATE

17

700-84-13781

RETAINER

18

700-84-12510

CASE

19

700-86-11240

O-RING

20

01252-30625

BOLT

21

700-84-13891

PLATE

22

700-84-13910

SEAL

23

700-86-11650

SPRING

24

700-84-13711

RETAINER

25

700-84-11641

COLLAR

26

01252-30830

BOLT

27

01643-30823

WASHER

28

700-84-11390

COVER

29

01252-30612

BOLT

30

01252-30625

BOLT

31

700-42-31460

VALVE

32

700-42-31470

SPRING

33

700-84-11320

PLUG

34

07002-13034

O-RING

35

700-22-11370

PLUG

36

07002-12434

O-RING

37

07040-11409

PLUG

38

07002-01423

O-RING

39

07043-70108

PLUG

40

706-86-51170

PLUG

|$52

709-70-91300

ORIFICE ASS'Y

41

ORIFICE

42

SENSOR

43

07000-02014

O-RING

44

07002-02434

O-RING

45

709-70-55103

RELIEF VALVE ASS'Y

45

709-70-55102

RELIEF VALVE ASS'Y

45

709-70-55101

RELIEF VALVE ASS'Y

45

709-70-55100

RELIEF VALVE ASS'Y

46

700-81-81000

VALVE ASS'Y,SUCTION

47

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

47

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

48

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

48

709-70-62100

VALVE ASS'Y
