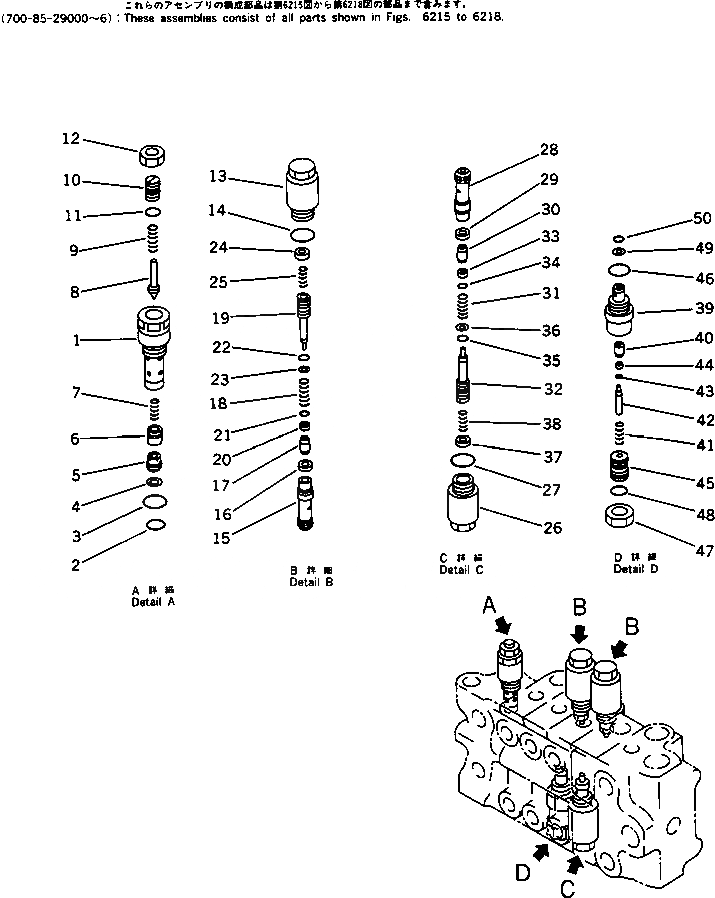

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-29006

CONTROL VALVE ASS'Y,R.H.

|$1

700-85-29005

CONTROL VALVE ASS'Y,R.H.

|$2

700-85-29004

CONTROL VALVE ASS'Y,R.H.

|$3

700-85-29003

CONTROL VALVE ASS'Y,R.H.

|$4

700-85-29002

CONTROL VALVE ASS'Y,R.H.

|$5

700-85-29001

CONTROL VALVE ASS'Y,R.H.

|$6

700-85-29000

CONTROL VALVE ASS'Y,R.H.

|$7

709-70-55103

RELIEF VALVE ASS'Y

|$8

709-70-55102

RELIEF VALVE ASS'Y

|$9

709-70-55101

RELIEF VALVE ASS'Y

|$10

709-70-55100

RELIEF VALVE ASS'Y

1

SLEEVE

1

SLEEVE

1

SLEEVE

1

SLEEVE

2

700-22-11410

O-RING

3

07002-02434

O-RING

4

700-20-51550

RING,SNAP

5

700-20-51540

RETAINER

6

VALVE

6

VALVE

7

709-70-51210

SPRING

7

700-20-51610

SPRING

8

709-70-51420

POPPET

8

709-70-51220

POPPET

8

700-80-61190

POPPET

9

700-20-51580

SPRING

9

709-70-51310

SPRING

9

700-20-51580

SPRING

10

700-20-51340

SCREW

10

709-70-51310

SPRING

10

700-20-51340

SCREW

11

07000-02011

O-RING

12

01582-11411

NUT

|$34

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

|$35

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

13

700-80-62310

SLEEVE

14

07002-03034

O-RING

15

VALVE

16

SEAL

17

POPPET

18

SPRING

19

PISTON

20

SEAL

21

O-RING

22

O-RING

23

RING,BACK-UP

24

NUT

24

NUT

25

700-80-62250

SPRING

|$50

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

|$51

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

26

700-80-62310

SLEEVE

27

07002-03034

O-RING

28

VALVE

29

SEAL

30

POPPET

31

SPRING

32

PISTON

33

SEAL

34

O-RING

35

O-RING

36

RING,BACK-UP

37

NUT

37

NUT

38

700-80-62250

SPRING

|$66

700-81-78000

VALVE ASS'Y,SAFETY

39

SLEEVE

40

POPPET

41

SPRING

42

PISTON

43

O-RING

44

SEAL

45

SCREW

46

O-RING

47

NUT

48

700-22-11410

O-RING

49

700-80-64220

RING,BACK-UP

50

07002-03034

O-RING
