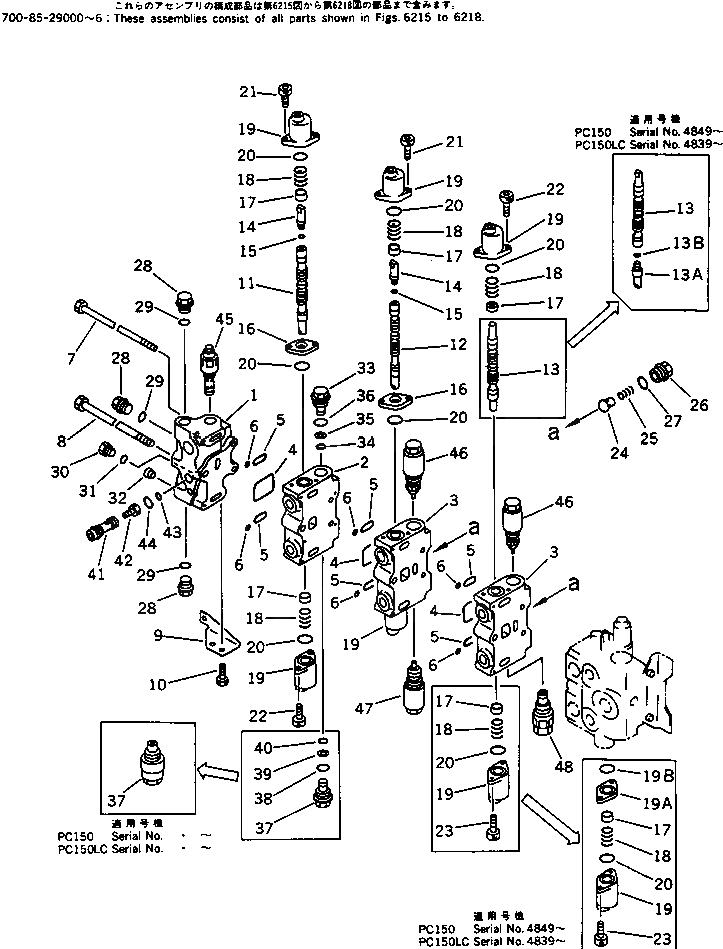

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-29006

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29005

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29004

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29003

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29002

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29001

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29000

CONTROL VALVE ASS'Y,R.H.

1

COVER,VALVE

|1

COVER,VALVE

2

BLOCK,VALVE

|2

BLOCK,VALVE

|2

BLOCK,VALVE

3

BLOCK,VALVE

|3

BLOCK,VALVE

4

07000-13050

O-RING

5

07000-03038

O-RING

|5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-86-11112

BOLT

8

700-84-13220

BOLT

9

700-84-13480

BRACKET

10

01010-51020

BOLT

11

SPOOL,ARM

12

SPOOL,BOOM

13

SPOOL,BUCKET

|13

SPOOL,BUCKET

13A

700-84-13790

JOINT

13B

07002-11223

O-RING

14

700-84-13790

JOINT

15

07002-11223

O-RING

16

700-84-13490

PLATE

17

700-84-13781

RETAINER

18

700-84-13770

SPRING

19

700-84-12510

CASE

19A

700-84-13490

PLATE

19B

700-84-11240

O-RING

20

700-84-11240

O-RING

21

01252-30625

BOLT

22

01252-30616

BOLT

23

01252-30625

BOLT

|23

01252-30616

BOLT

24

700-42-31460

VALVE

25

700-42-31470

SPRING

26

700-84-11320

PLUG

27

07002-13034

O-RING

28

700-22-11370

PLUG

29

07002-12434

O-RING

30

07040-11409

PLUG

31

07002-01423

O-RING

32

07043-70108

PLUG

33

700-84-13960

PLUG

34

700-22-11410

O-RING

35

700-80-64220

RING,BACK-UP

36

07002-03034

O-RING

37

700-81-78000

VALVE ASS'Y

|37

700-84-13960

PLUG

38

700-22-11410

O-RING

39

700-80-64220

RING,BACK-UP

40

07002-03034

O-RING

|41

709-70-91300

ORIFICE ASS'Y

41

ORIFICE

42

SENSOR

43

07000-02014

O-RING

44

07002-02434

O-RING

45

709-70-55103

RELIEF VALVE ASS'Y

|45

709-70-55102

RELIEF VALVE ASS'Y

|45

709-70-55101

RELIEF VALVE ASS'Y

|45

709-70-55100

RELIEF VALVE ASS'Y

46

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

|46

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

47

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

|47

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

48

700-81-77000

SAFETY VALVE ASS'Y
