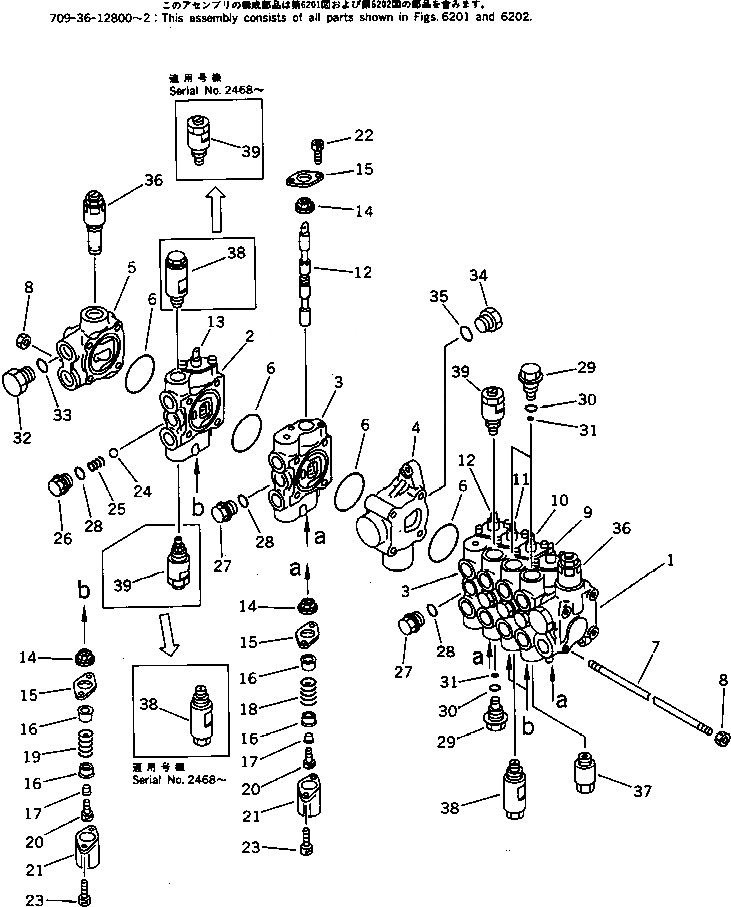

Запчасти Komatsu PC15T-2 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-36-12802

VALVE ASS'Y

|1

709-36-12801

VALVE ASS'Y

|1

709-36-12800

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

709-36-11510

STUD

8

01580-10806

NUT

9

SPOOL,SWING

10

SPOOL,BOOM

11

SPOOL,BUCKET

12

SPOOL,TRAVEL

13

SPOOL,ARM

|13

SPOOL,ARM

14

709-32-11530

SEAL,DUST

15

709-32-11540

PLATE

16

709-32-11550

RETAINER

17

709-32-11560

COLLAR

18

709-32-11590

SPRING

19

709-32-11580

SPRING

|19

709-32-11590

SPRING

20

01252-30620

BOLT

21

709-32-11570

COVER

22

01252-30610

BOLT

23

01252-30616

BOLT

24

04260-01270

BALL

25

709-32-11820

SPRING

26

709-32-11810

PLUG

27

709-32-11930

PLUG

28

07002-11823

O-RING

29

709-32-11830

PLUG

30

709-32-11840

O-RING

31

07002-02034

O-RING

32

07040-12012

PLUG

33

07002-02034

O-RING

34

700-22-11370

PLUG

35

07002-02434

O-RING

36

700-27-56000

VALVE ASS'Y,RELIEF

37

709-30-61100

VALVE ASS'Y,SUCTION

38

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

|38

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

39

709-30-65400

VALVE ASS'Y,SAFETY
