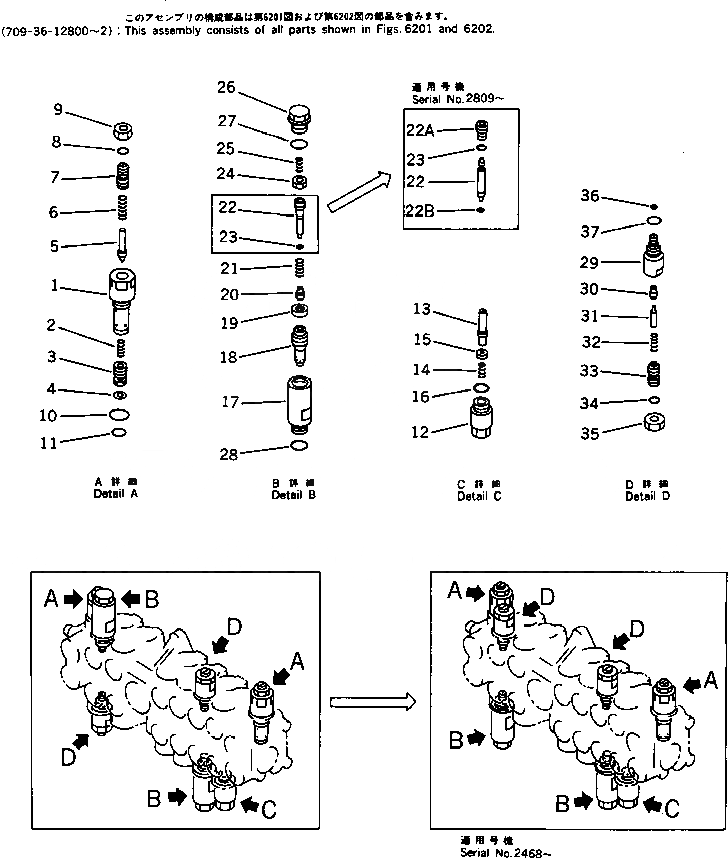

Запчасти Komatsu PC15T-2 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-36-12802

VALVE ASS'Y

|1

709-36-12801

VALVE ASS'Y

|1

709-36-12800

VALVE ASS'Y

|1

700-27-56000

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

07000-02011

O-RING

9

01583-11408

NUT

10

07002-02434

O-RING

11

700-22-11410

O-RING

|12

709-30-61100

VALVE ASS'Y,SUCTION

12

709-30-61110

SLEEVE

13

VALVE

14

700-20-62170

SPRING

15

SEAL

16

07002-02034

O-RING

|17

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

|17

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

17

709-30-62110

SLEEVE

18

VALVE

|18

VALVE

19

SEAL

20

POPPET

|20

POPPET

21

SPRING

22

PISTON

|22

PISTON

22A

SCREW

22B

SEAL

23

O-RING

24

NUT

25

700-20-62170

SPRING

26

709-30-62150

PLUG

27

07002-12034

O-RING

28

07002-02034

O-RING

|29

709-30-65400

VALVE ASS'Y,SAFETY

29

SLEEVE

30

POPPET

|30

POPPET

31

PISTON

32

SPRING

33

SCREW

34

O-RING

35

NUT

36

709-32-11840

O-RING

37

07002-02034

O-RING
