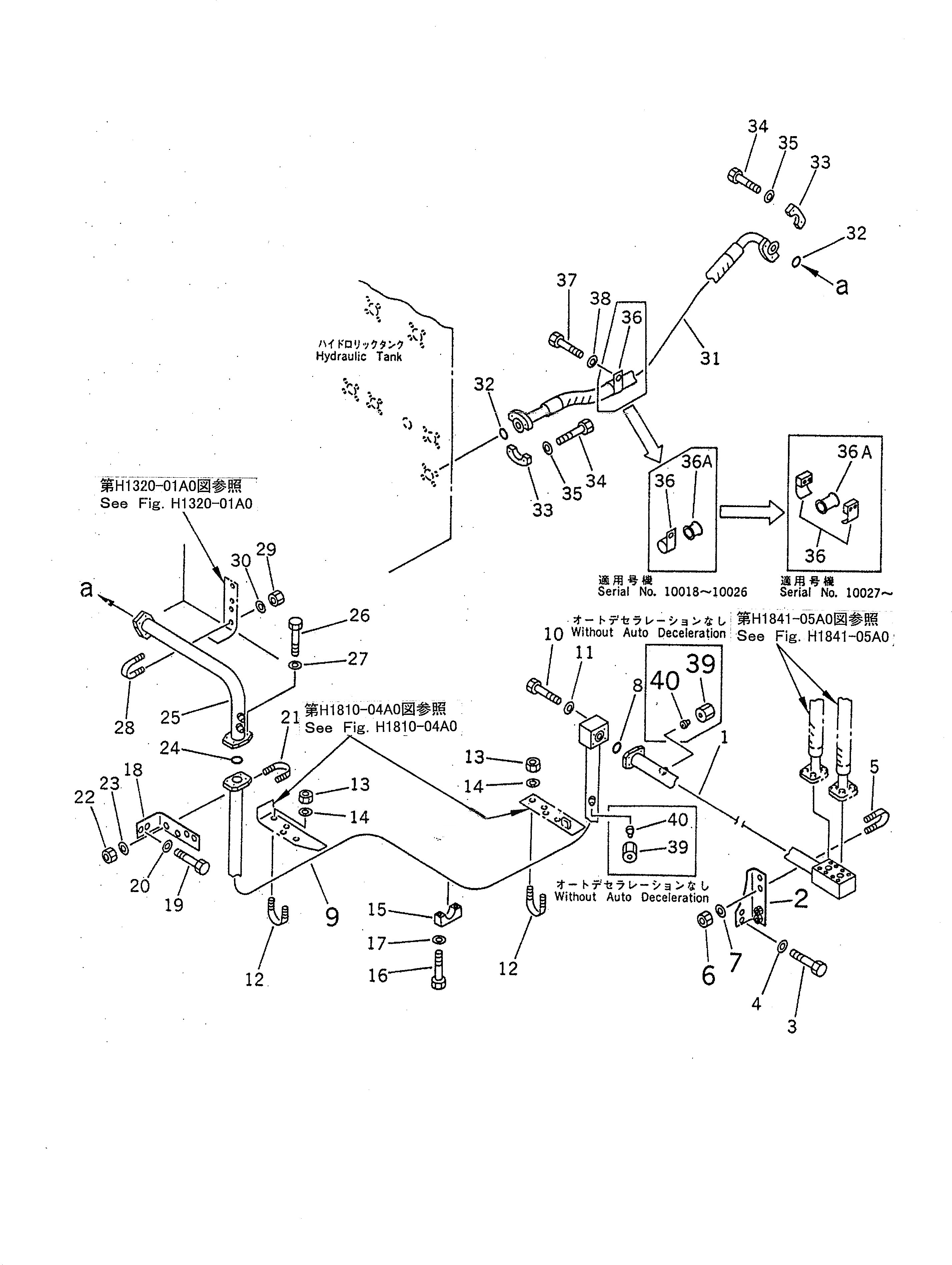

Запчасти Komatsu PC1600-1 ВОЗВРАТ. ТРУБЫ (БЛОК - БАК)(№-) ГИДРАВЛИКА

1

21T-62-87730

TUBE

2

21T-62-87210

BRACKET

3

01010-51225

BOLT

4

01643-31232

WASHER

5

07283-24949

CLIP

6

01599-01011

NUT

7

01643-31032

WASHER

8

07000-02055

O-RING

9

21T-62-87390

TUBE

10

01010-51280

BOLT

11

01643-31232

WASHER

12

07283-24949

CLIP

13

01599-01011

NUT

14

01643-31032

WASHER

15

21T-62-87570

CLAMP

16

01010-51255

BOLT

17

01643-31232

WASHER

18

21T-62-87490

BRACKET

19

01010-51230

BOLT

20

01643-31232

WASHER

21

07283-24949

CLIP

22

01599-01011

NUT

23

01643-31032

WASHER

24

07000-03050

O-RING

25

21T-62-87780

TUBE

26

07372-21240

BOLT

27

01643-51232

WASHER

28

07283-24949

CLIP

29

01599-01011

NUT

30

01643-31032

WASHER

31

07298-01416

HOSE

32

07000-03048

O-RING

33

07371-31465

FLANGE

34

07372-21240

BOLT

35

01643-51232

WASHER

36

07094-01228

CLAMP

36

21T-62-76831

CLIP

36

19M-60-12720

CLIP

36A

07095-01245

CUSHION

36A

21T-62-76820

CUSHION

37

01010-51285

BOLT

37

01010-51225

BOLT

38

01643-31232

WASHER

38

01643-31232

WASHER

39

07221-20210

NUT,(WITHOUT AUTO DECELERATION)

40

07222-00210

PLUG,(WITHOUT AUTO DECELERATION)
