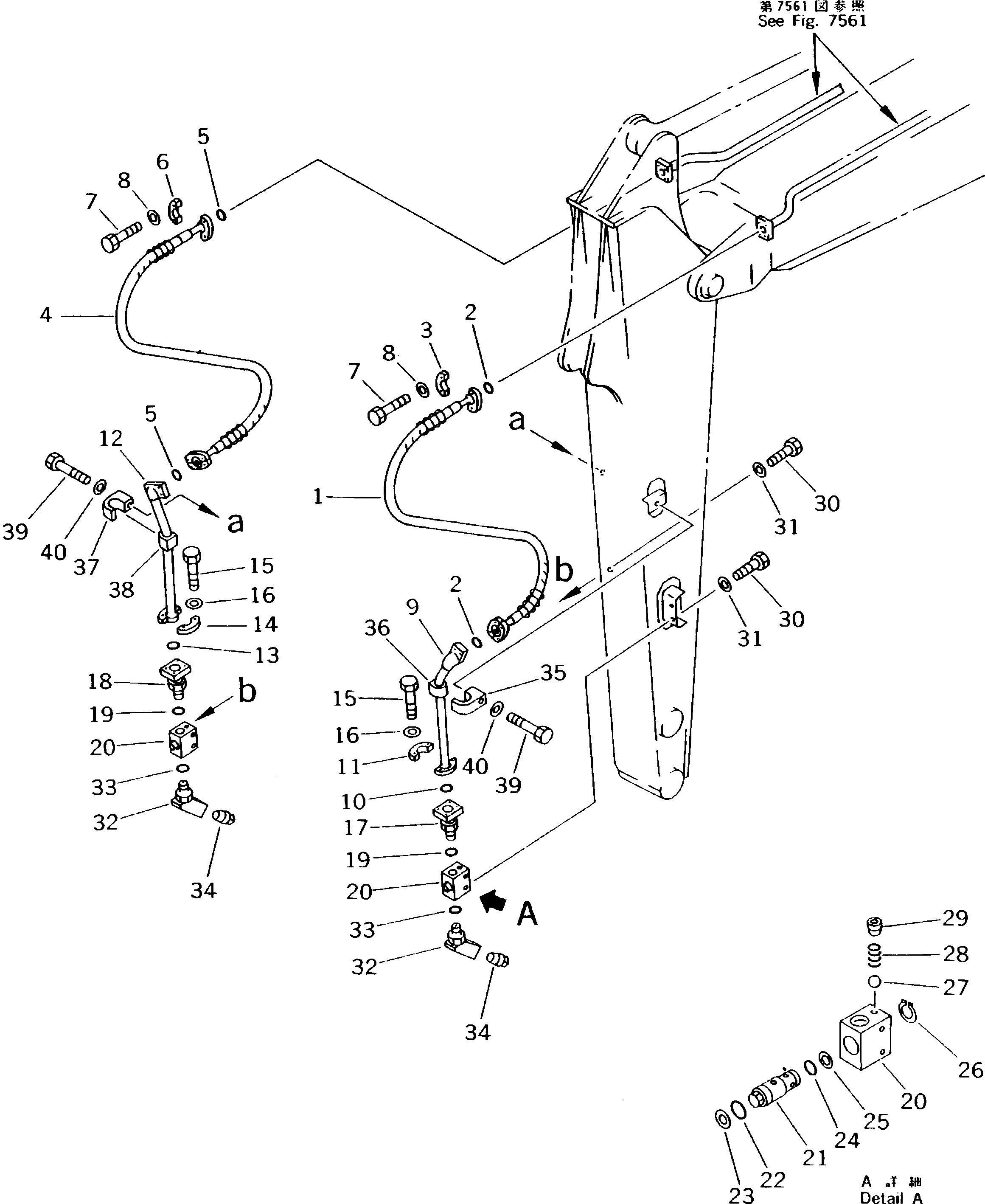

Запчасти Komatsu PC180LC-5K ГИДРОЛИНИЯ (ДОПОЛН. ГИДРОЛИНИЯ ЛИНИЯ) (РУКОЯТЬ) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

1

07099-20616

HOSE,(FOR 1.8M ARM)

|1

07099-20618

HOSE,(FOR 2.2M AND 2.6M ARM)

2

07000-13025

O-RING

3

07371-30640

FLANGE,SPLIT

4

07099-21016

HOSE,(FOR 1.8M ARM)

|4

07099-21018

HOSE,(FOR 2.2M AND 2.6M ARM)

5

07000-13032

O-RING

6

07371-31049

FLANGE,SPLIT

7

07372-21035

BOLT

8

01643-51032

WASHER

9

21P-973-2260

TUBE,(FOR 1.8M ARM)

|9

21P-973-2230

TUBE,(FOR 2.2M ARM)

|9

21K-973-3190

TUBE,(FOR 2.6M ARM)

10

07000-13025

O-RING

11

07371-30640

FLANGE,SPLIT

12

21P-973-2270

TUBE,(FOR 1.8M ARM)

|12

21P-973-2240

TUBE,(FOR 2.2M ARM)

|12

203-973-5770

TUBE,(FOR 2.6M ARM)

13

07000-13032

O-RING

14

07371-31049

FLANGE,SPLIT

15

07372-21035

BOLT

16

01643-51032

WASHER

17

201-973-6810

NIPPLE

18

203-973-5750

NIPPLE

19

07002-13334

O-RING

20

203-973-3911

BODY

21

203-973-3921

SPOOL

22

07000-13032

O-RING

23

07001-03032

RING,BACK-UP

24

07000-13025

O-RING

25

07001-03025

RING,BACK-UP

26

04064-03015

RING,SNAP

27

04260-00793

BALL

28

236-10-12240

SPRING

29

07043-00108

PLUG

30

01010-51025

BOLT

31

01643-31032

WASHER

32

203-973-5730

ELBOW

33

07002-13334

O-RING

34

07042-70617

PLUG

35

203-62-43380

CUSHION

36

203-62-43370

CLAMP

37

203-973-4390

CUSHION

38

203-973-5790

CLAMP

39

01010-51270

BOLT

40

01643-31232

WASHER
