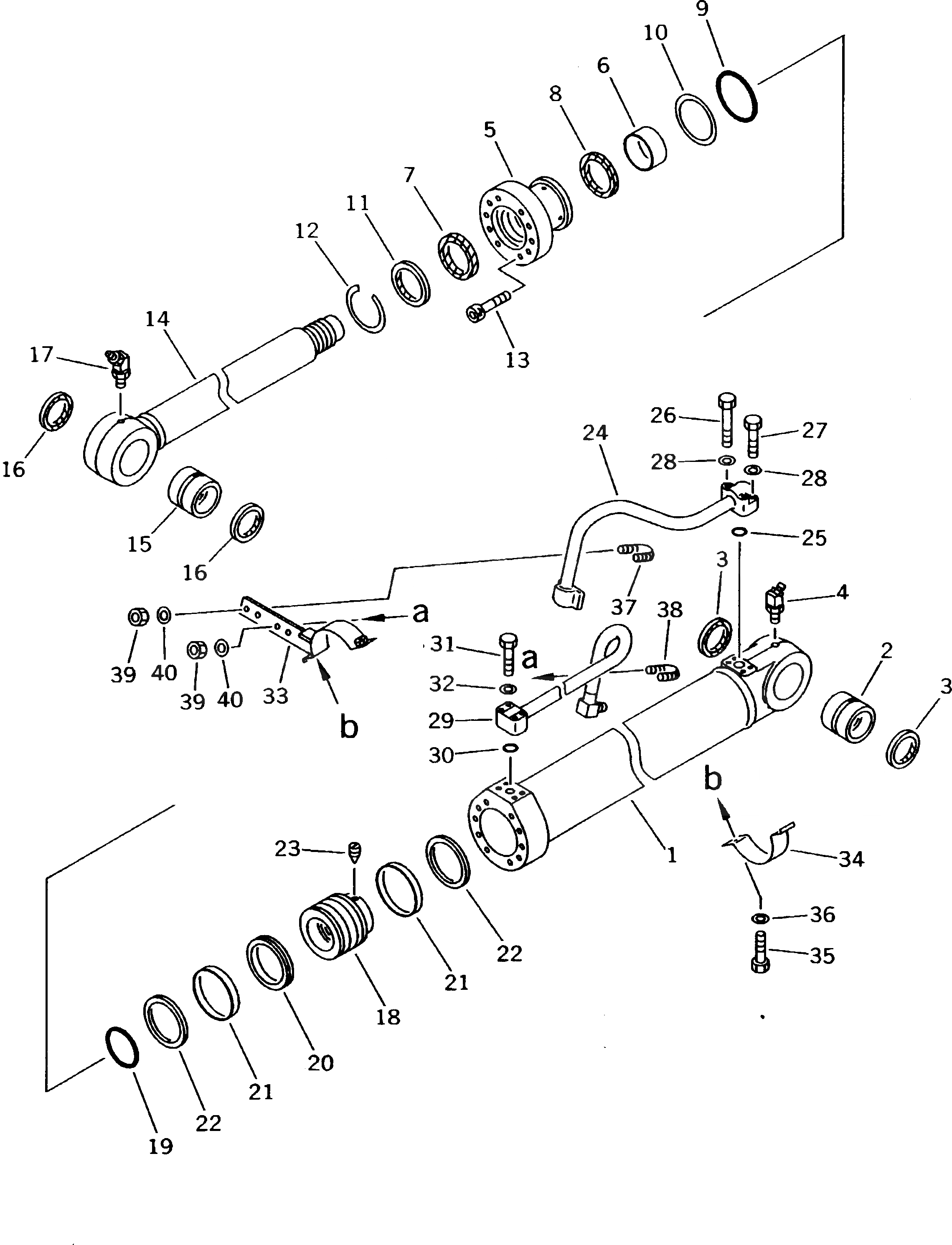

Запчасти Komatsu PC180LLC-5K ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|1

21P-63-K1600

CYLINDER ASS'Y,L.H. (WITH TUBE)

|1

21P-63-K1700

CYLINDER ASS'Y,R.H. (WITH TUBE)

|1

21P-63-K1610

CYLINDER ASS'Y,BOOM

1

21P-63-K1620

CYLINDER

2

707-76-70040

BUSHING

3

07145-00070

SEAL,DUST

4

203-63-K2370

FITTING,GREASE

5

21P-63-K1650

HEAD,CYLINDER

6

707-52-90500

BUSHING

7

707-51-75030

PACKING,ROD

8

707-51-75630

RING,BUFFER

9

21P-63-K1670

O-RING

10

21P-63-K1660

RING,BACK-UP

11

144-63-94170

SEAL,DUST

12

203-63-K2090

RING,SNAP

13

203-63-K2120

BOLT

14

21P-63-K1640

ROD,PISTON

15

707-76-70040

BUSHING

16

07145-00070

SEAL,DUST

17

203-63-K2370

FITTING,GREASE

18

21P-63-K1680

PISTON

19

21P-63-K1690

O-RING

20

707-44-11180

RING,PISTON

21

707-39-11110

RING,WEAR

22

707-44-11911

RING

23

203-63-K2050

SCREW,SET

24

21P-63-K1910

TUBE,L.H.

|24

21K-63-54280

TUBE,R.H.

|24

21P-63-K1880

TUBE,R.H.

25

07000-13030

O-RING

26

07372-21060

BOLT

|26

21P-63-K1970

BOLT

27

07372-21045

BOLT

|27

21P-63-K2110

BOLT

28

01643-51032

WASHER

|28

203-63-K2220

WASHER

29

21P-63-K1920

TUBE,L.H.

|29

21K-63-54270

TUBE,R.H.

|29

21P-63-K1890

TUBE,R.H.

30

07000-13025

O-RING

31

01010-50850

BOLT

|31

203-63-K2240

BOLT

32

01643-50823

WASHER

|32

203-63-K2440

WASHER

33

21P-63-K1940

BRACKET,L.H.

|33

C77-63-95850

BRACKET,R.H.

|33

21P-63-K1930

BRACKET,R.H.

34

707-88-97750

BAND

|34

21P-63-K1950

BAND

35

01010-51025

BOLT

|35

203-63-K2450

BOLT

36

01643-31032

WASHER

|36

203-63-K2230

WASHER

37

07283-22738

CLIP

|37

21P-63-K1960

CLIP

38

07283-22236

CLIP

|38

203-63-K2190

CLIP

39

203-63-K2790

NUT

40

01643-31032

WASHER

|40

203-63-K2230

WASHER
