/ / / / / / / КАБИНА, 2-СЕКЦИОНН. СТРЕЛА, ПЕРЕДН. ОКНА

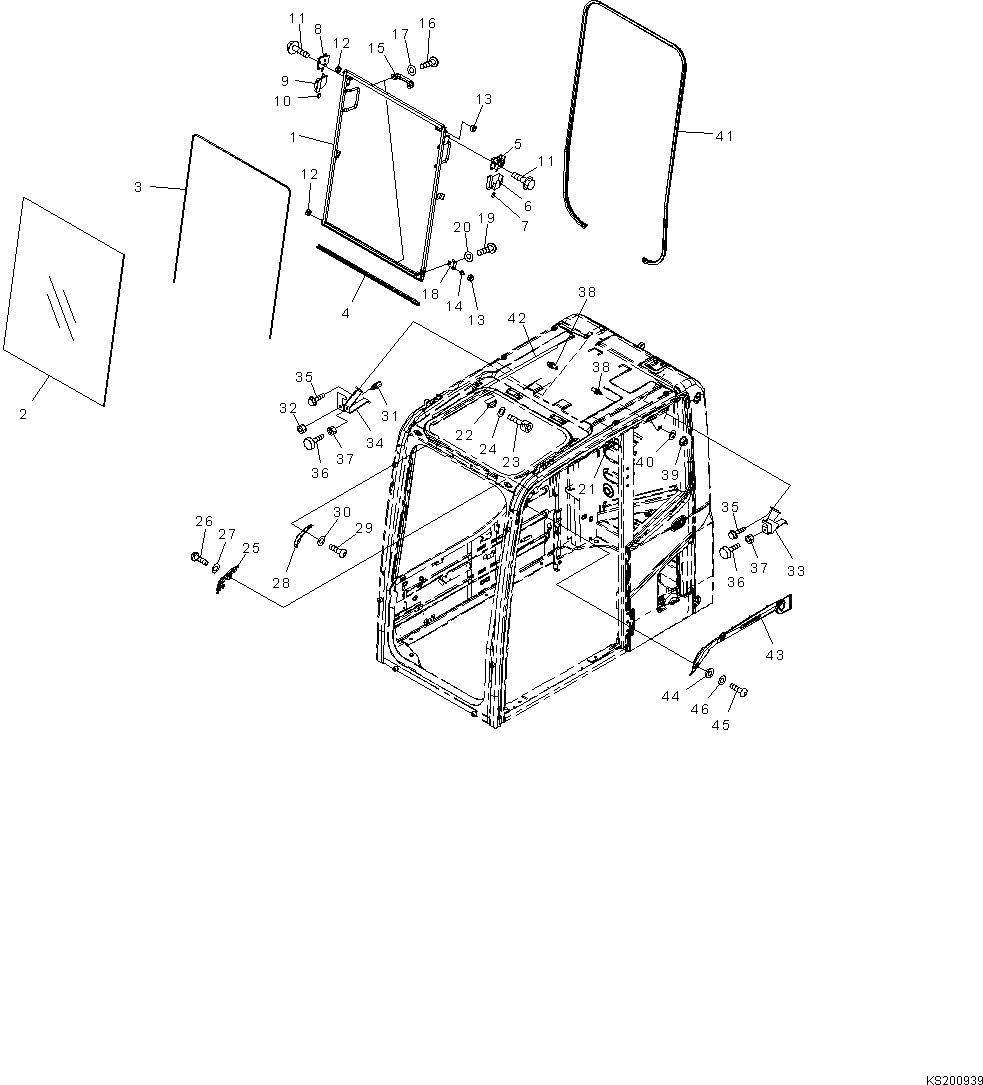

Запчасти Komatsu PC190LC-8 КАБИНА, 2-СЕКЦИОНН. СТРЕЛА, ПЕРЕДН. ОКНА КАБИНА, 2-СЕКЦИОНН. СТРЕЛА
44
46
45
43
36
37
33
35
40
39
21
38
23
24
22
28
30
29
26
27
25
36
37
34
31
32
35
38
42
13
14
18
4
3
1
12
20
19
7
6
11
5
13
41
10
9
11
8
12
15
17
16
2
|$0
203-54-00235
Cab Assembly (ROPS)
|$1
203-54-00233
Cab Assembly (ROPS)
|$2
203-54-00232
Cab Assembly
|$3
20Y-53-00091
Window Assembly
1
20Y-53-18511
Frame
2
20Y-53-11520
Glass
3
20Y-54-51531
Seal
4
20Y-53-11551
Seal
5
22B-54-15411
Lock Assembly
6
22B-54-15440
Case
7
22B-54-15470
Knob
8
22B-54-15421
Lock Assembly
9
22B-54-15450
Case
10
22B-54-15480
Knob
11
01435-40812
Bolt
12
20Y-54-52621
Roller
13
20Y-54-52681
Roller
14
20Y-53-12330
Pin
15
20Y-54-14590
Handle
16
01245-00616
Screw
17
01643-70623
Washer
18
20Y-53-12830
Bracket
19
01245-00816
Screw
20
01643-70823
Washer
21
20Y-54-51670
Stopper
22
20Y-54-51680
Stopper
23
01252-80616
Bolt
24
01643-70623
Washer
25
20Y-53-11561
Block Assembly
26
01245-00816
Screw
27
01643-70823
Washer
28
20Y-53-11661
Bracket
29
01245-00816
Screw
30
01643-70823
Washer
31
21J-06-12440
Switch
32
01583-11811
Nut
33
20Y-53-11581
Bracket
34
20Y-53-11641
Bracket
35
01435-00612
Bolt
36
20Y-54-11611
Stopper
37
01580-11008
Nut
38
20Y-54-51621
Striker
39
01584-31008
Nut, Flanged
40
01643-71032
Washer
41
20Y-53-11540
Seal
42
20Y-54-51420
Seal
43
20Y-53-12531
Cover
44
20Y-53-12310
Collar
45
01245-00616
Screw
46
01643-70623
Washer
