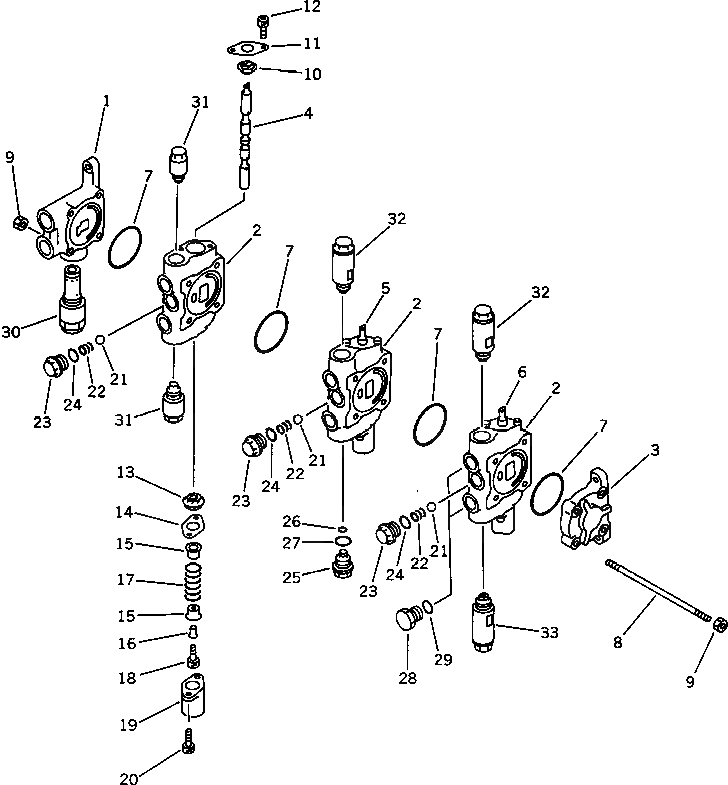

Запчасти Komatsu PC20-6 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ANGLE DOZER)(№9-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-33-12500

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

SPOOL,SWING

5

SPOOL,TRAVEL SPEED

6

SPOOL,BLADE

7

07000-12055

O-RING

8

709-33-11510

STUD

9

01580-10806

NUT

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

01252-30610

BOLT

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30616

BOLT

21

04260-01270

BALL

22

709-32-11820

SPRING

23

709-32-11810

PLUG

24

07002-11823

O-RING

25

709-32-11830

PLUG

26

709-32-11840

O-RING

27

07002-02034

O-RING

28

07040-11812

PLUG

29

07002-11823

O-RING

30

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF

31

709-30-61100

VALVE ASS'Y,SUCTION

32

709-30-64101

VALVE ASS'Y,SAFETY

33

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY
