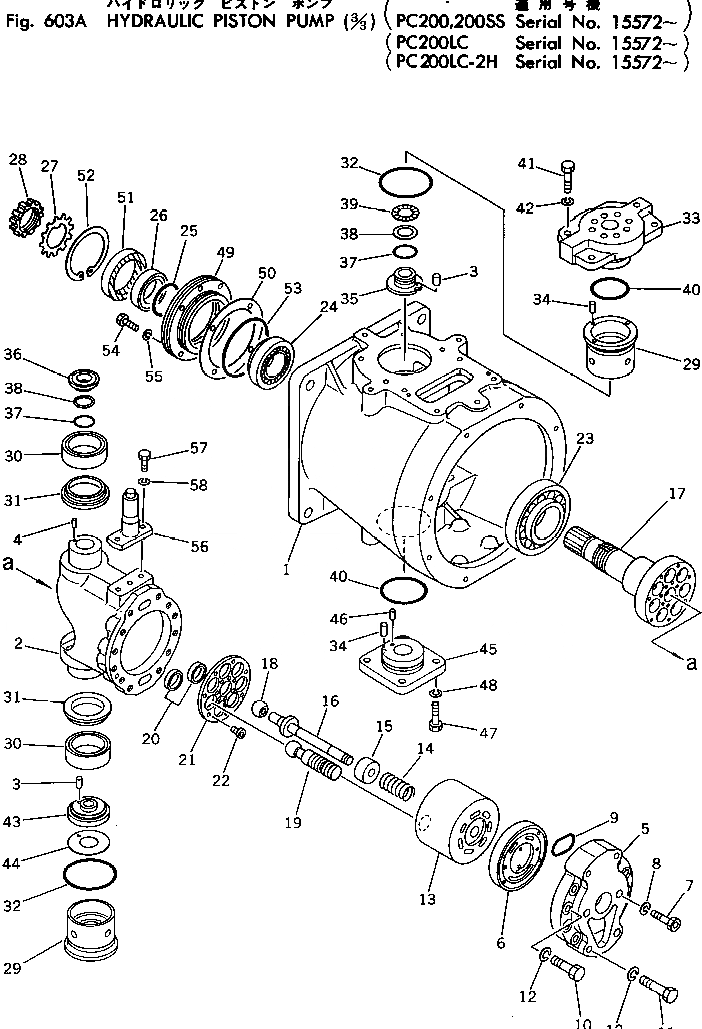

Запчасти Komatsu PC200-2 ГИДРАВЛ ПОРШЕНЬ НАСОС (/)(№7-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-46-20603

HYDRAULIC PUMP ASS'Y

|$1

706-46-20703

HYDRAULIC PUMP ASS'Y

|$2

706-46-42001

PUMP SUB ASS'Y

1

CASE

2

CASE

3

PIN

4

PIN

5

COVER

6

PLATE

7

BOLT

8

WASHER

9

O-RING

10

BOLT

11

BOLT

12

WASHER

13

BLOCK

14

SPRING

15

RING

16

SHAFT

17

SHAFT

18

BALL

19

PISTON SUB ASS'Y

20

HOLDER

21

RETAINER

22

SCREW

23

BEARING

24

BEARING

25

O-RING

26

RING

27

WASHER

28

NUT

29

SLEEVE

30

BEARING

31

SPACER

32

O-RING

33

BOSS

34

PIN

35

RING

36

RING

37

O-RING

38

RING

39

WASHER

40

O-RING

41

BOLT

42

WASHER

43

RING

44

WASHER

45

BOSS

46

PIN

47

BOLT

48

WASHER

49

BOSS

50

GASKET

51

SEAL

52

RING

53

O-RING

54

BOLT

55

WASHER

56

PIN

57

BOLT

58

WASHER

|$61

706-98-00780

SERVICE KIT,(EXCEPT JAPAN)

|$62

SHAFT

|$63

BEARING

|$64

PISTON SUB ASS'Y

|$65

RETAINER

58

HOLDER

|$67

BALL

|$68

SHAFT

|$69

RING

|$70

SPRING

|$71

BLOCK

|$72

SCREW

|$73

SEAL

|$74

GASKET

|$75

BOLT

|$76

WASHER

|$77

WASHER

|$78

O-RING

|$79

O-RING

|$80

O-RING

|$81

O-RING

|$82

O-RING

|$83

RING

|$84

O-RING

|$85

O-RING

|$86

O-RING

|$87

GASKET

|$88

O-RING

|$89

O-RING

|$90

O-RING

|$91

O-RING

|$92

O-RING

|$93

O-RING

|$94

O-RING

|$95

O-RING

|$96

O-RING

|$97

706-98-05040

SERVICE KIT,(EXCEPT JAPAN)

|$98

COVER ASS'Y

|$99

PLATE

|$100

BOLT

|$101

WASHER
