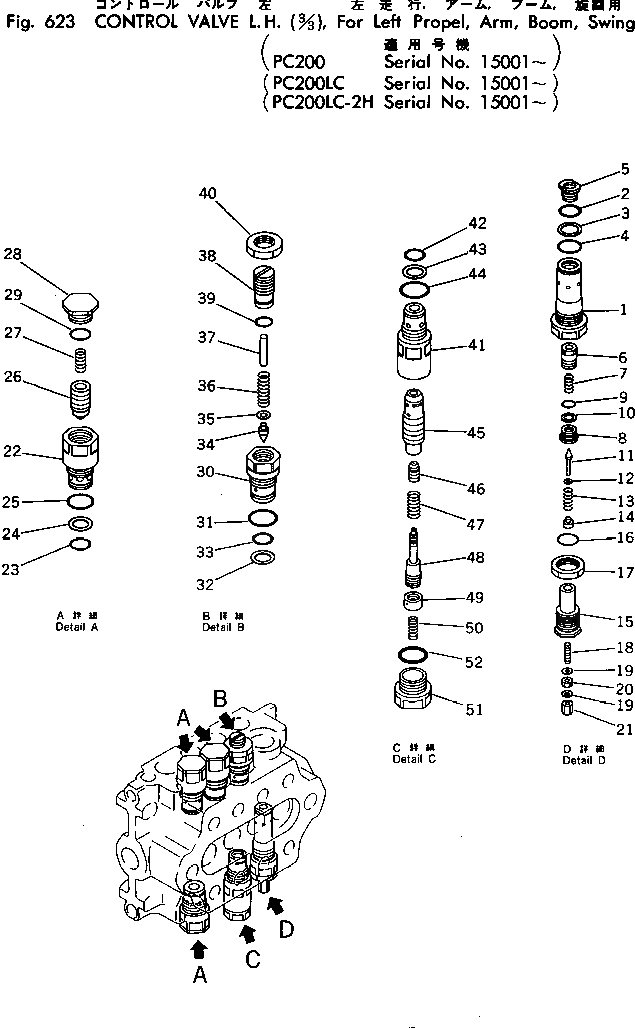

Запчасти Komatsu PC200-2 УПРАВЛЯЮЩ. КЛАПАН ЛЕВ.(/)(ДЛЯ L.ХОД¤РУКОЯТЬ¤СТРЕЛА¤ПОВОРОТН.)(PC)(№-777) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-94-24001

CONTROL VALVE ASS'Y

|$1

700-94-24000

CONTROL VALVE ASS'Y

|$2

700-92-55000

RELIEF VALVE ASS'Y

1

SLEEVE

2

700-93-11320

O-RING

3

700-93-11330

RING

4

07002-03634

O-RING

5

PLUG

6

VALVE

7

700-90-51320

SPRING

8

700-90-51150

SEAT

9

07000-22016

O-RING

10

07001-02016

RING

11

700-80-61190

POPPET

12

700-80-51240

SPACER

13

700-90-51160

SPRING

14

700-90-51250

RETAINER

15

700-90-51270

HOLDER

16

07002-03034

O-RING

17

700-90-51190

NUT

18

700-90-51281

SCREW

19

700-90-51290

WASHER

20

01580-00806

NUT

21

700-90-51311

NUT

|$24

700-90-62000

VALVE ASS'Y

22

SLEEVE

23

700-93-11320

O-RING

24

700-93-11330

RING

25

07002-03634

O-RING

26

VALVE

27

700-90-61170

SPRING

28

700-90-62130

PLUG

29

07002-13034

O-RING

|$33

700-90-75000

VALVE ASS'Y

30

SLEEVE

31

07002-03634

O-RING

32

700-93-11330

RING

33

700-93-11320

O-RING

34

POPPET

35

WASHER

36

SPRING

37

STOPPER

38

PLUG

39

O-RING

40

NUT

|$45

700-90-68001

VALVE ASS'Y,SUCTION AND SAFETY

41

SLEEVE

42

700-93-11320

O-RING

43

700-93-11330

RING

44

07002-03634

O-RING

45

VALVE

46

POPPET

47

SPRING

48

PISTON

49

NUT

50

SPRING

51

PLUG

52

O-RING
