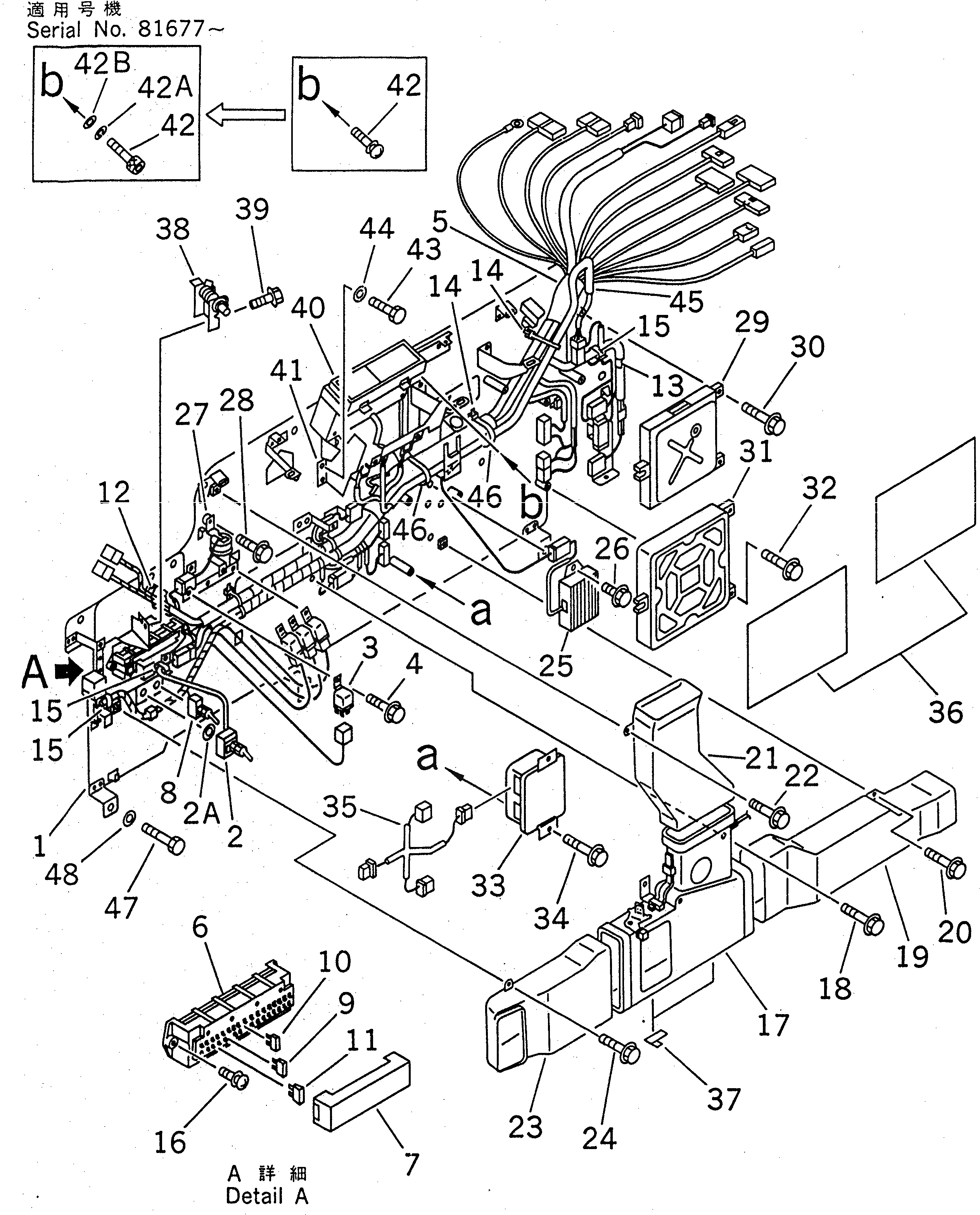

Запчасти Komatsu PC200-6H КАБИНА (ОСНОВ.) (РАБОЧ. РЫЧАГ С КЛАПАН EPC) (POWER СДВИГ. ВВЕРХ ОКНА)(№8-87999) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20Y-06-23312

BASE

2

20Y-06-24120

SWITCH ASS'Y

2A

01641-21223

WASHER

3

569-06-61960

RELAY

4

01435-00610

BOLT

5

20Y-06-21270

WIRING HARNESS

6

283-06-16110

BOX

7

195-Z11-2290

COVER

8

20Y-06-24130

SWITCH

9

283-06-16190

FUSE¤ 10A

10

205-06-73180

FUSE¤ 15A

11

22W-06-13160

FUSE¤ 20A

12

08020-00000

DIODE

13

20Y-06-24270

CLIP

14

20Y-06-21460

CLIP

15

20Y-06-23960

CLIP

16

01023-10625

SCREW

17

20Y-979-2130

BOX ASS'Y,(SEE FIG. Y1979-61A0)

18

01435-01016

BOLT

19

20Y-979-2221

DUCT

20

01435-00610

BOLT

21

20Y-979-2231

DUCT

22

01435-00610

BOLT

23

20Y-979-2242

DUCT

24

01435-00610

BOLT

25

7827-10-1520

RESISTOR¤ 15OHM

26

01435-00820

BOLT

27

203-06-56230

BUZZER ASS'Y

28

01435-00610

BOLT

29

7834-30-2000

CONTROLLER

30

01435-00630

BOLT

31

7834-10-2003

CONTROLLER,PUMP

|31

7834-10-2002

CONTROLLER,PUMP

|31

7834-10-2001

CONTROLLER,PUMP

|31

7834-10-2000

CONTROLLER,PUMP

32

01435-00630

BOLT

33

20Y-06-24420

CONTROLLER,WIPER

|33

20Y-06-23650

CONTROLLER,WIPER

34

01435-00630

BOLT

35

20Y-06-24110

WIRING HARNESS

36

20Y-06-24220

SHEET

37

08051-00801

CLIP

38

20Y-06-23521

LOCK

39

01435-00820

BOLT

40

7834-87-2000

PANEL

41

20Y-06-24141

BRACKET

42

01252-40410

BOLT

|42

01023-10408

SCREW

42A

01601-20410

WASHER

42B

01641-20405

WASHER

43

01010-50614

BOLT

44

01643-30623

WASHER

45

20Y-06-21231

WIRING HARNESS

46

08034-00519

BAND

|46

08034-00414

BAND

47

01010-51020

BOLT

48

01643-31032

WASHER
